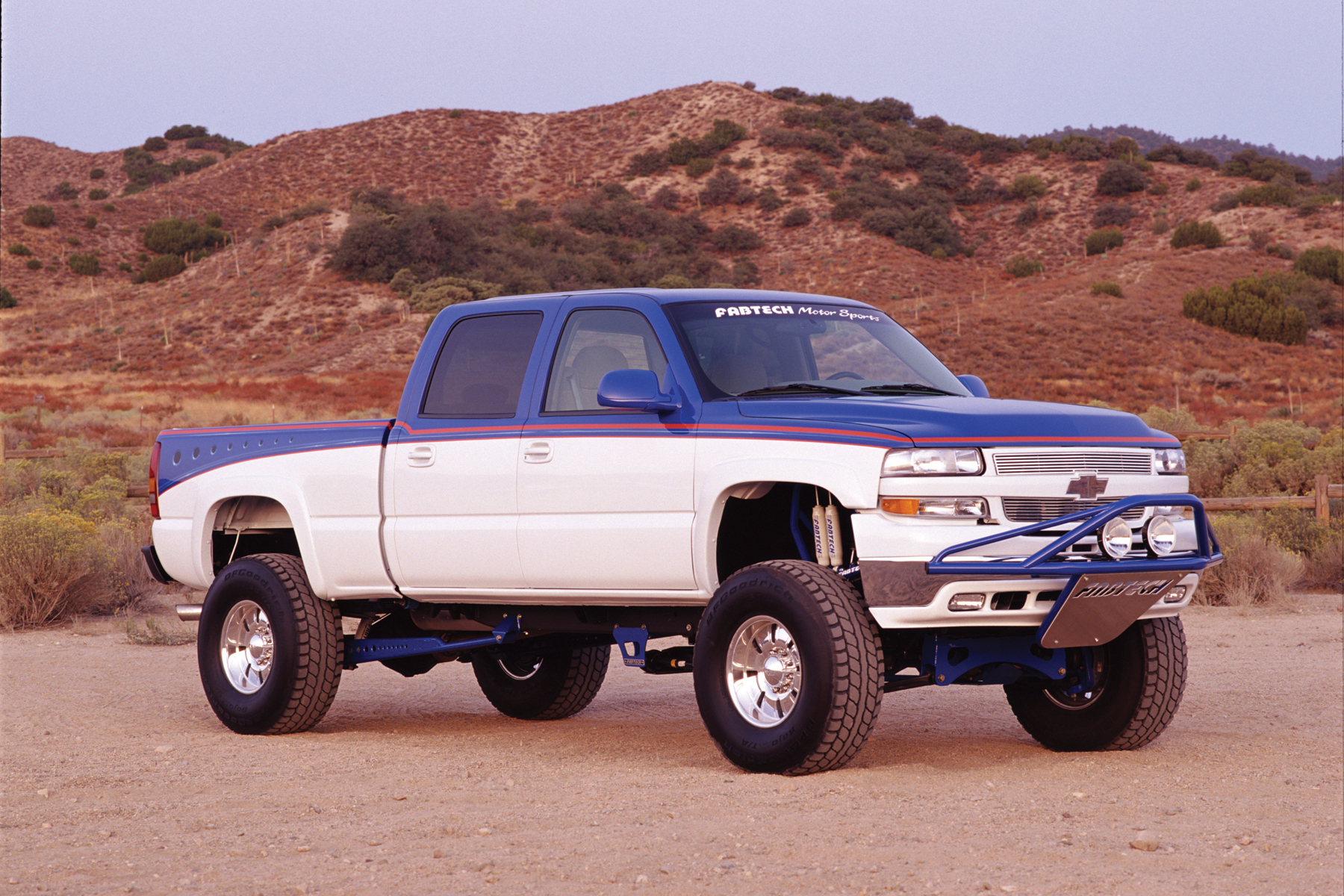

Fabtech K1015DL 8" Performance Lift Kit with Dirt Logic Shocks for 01-06 GM 2500HD/3500

The Fabtech K1015DL 8-inch Performance Suspension System delivers exceptional lift and ground clearance for 2001-2006 GM C/K2500HD and C/K3500 trucks (non-dually models). This comprehensive system provides a true 8 inches of lift without torsion bar adjustment, allowing the use of up to 37-inch tall tires while maintaining excellent ride quality.

Front Suspension Components:

• One-piece cast drop-down steering knuckles for precise alignment and durability
• Heavy-duty 1/4-inch thick high-arched lower control arm crossmembers for maximum ground clearance
• Tubular upper control arms with urethane bushings that fit stock frame pockets
• Double shock mounting tabs on upper control arms for optional dual shock integration
• Relocated front differential eliminates driveshaft vibration with stock driveshaft (2001-06 models)
• Differential skid plate for undercarriage protection
• Tubular crossmember supports and impact struts
• Torsion bar drop-down brackets for proper alignment with relocated lower control arms

Rear Suspension Components:

• 4-inch lift blocks for substantial rear lift
• 2-inch add-a-leafs for additional support and load capacity
• Rear bump stop brackets for proper suspension travel
• Rear driveshaft carrier bearing drop bracket

Included Shocks:

System includes front and rear 2.25-inch Dirt Logic Stainless Steel shocks, engineered specifically for lifted applications to provide superior damping and off-road performance.

Important Note: 2007-08 vehicles with Magna 1625 transfer cases require a CV front driveshaft for high-speed 4WD operation (not included).
