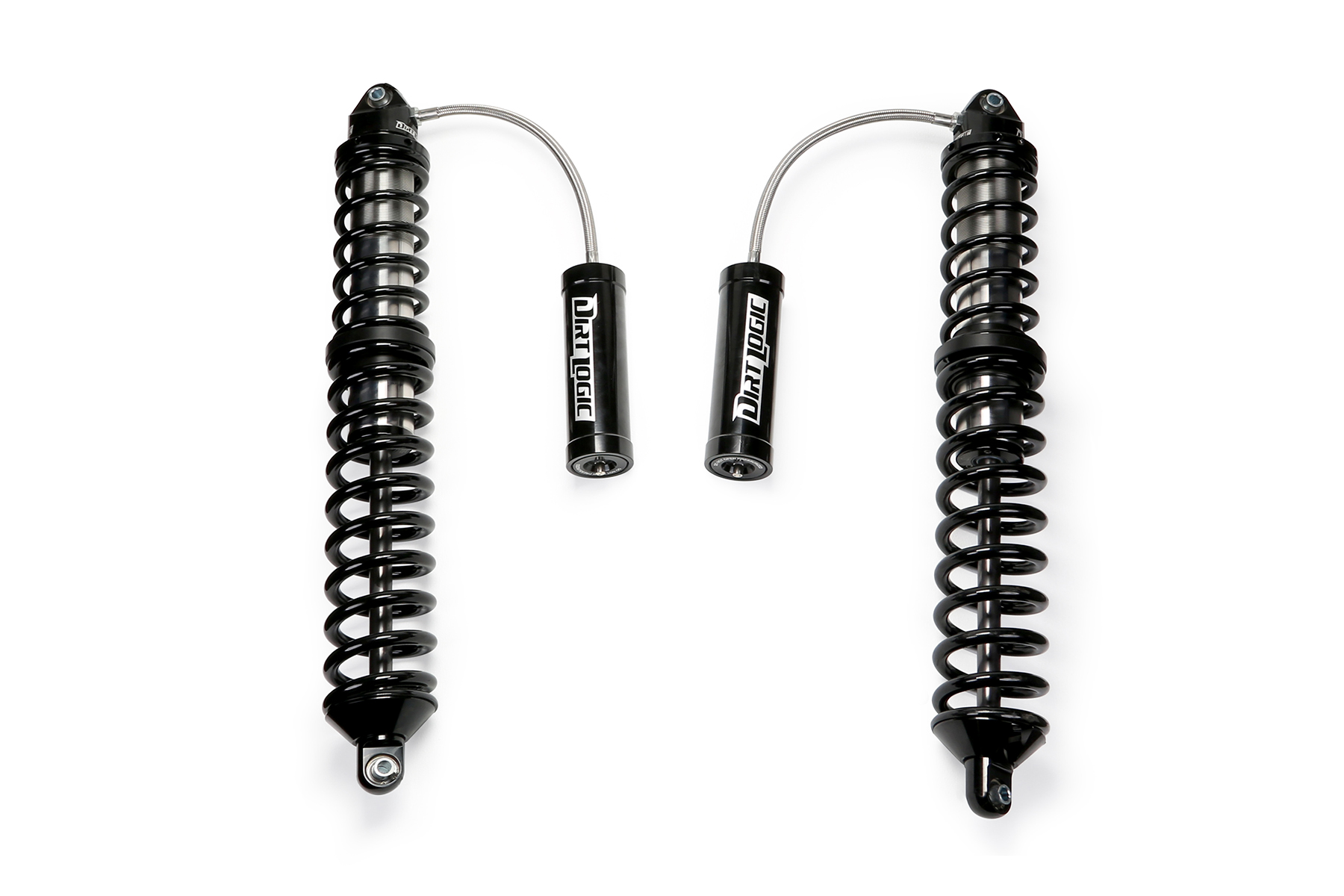

Fabtech FTS24106 Dirt Logic 2.5 Reservoir Coilover Front Shock Assembly Pair 5 Inch Lift Jeep

The Fabtech FTS24106 Dirt Logic 2.5 front coilover assembly pair delivers race-proven suspension performance for Jeep Wrangler JK models with 5-inch lift kits. Engineered from desert racing experience, these premium coilovers combine exceptional damping capacity for aggressive off-road driving with comfortable highway manners.

Premium Construction Features:

• 2.5-inch outer diameter high-grade 304 stainless steel shock body with machined finish for maximum corrosion resistance
• 2.25-inch outer diameter billet aluminum piston for precise damping control
• 7/8-inch NitroSteel black piston rod with superior hardness and corrosion resistance compared to chrome
• 2.5-inch outer diameter black anodized 6061 aluminum remote reservoir with -8 stainless steel O-ring hose for enhanced heat dissipation
• Cold-wound coil springs made to highest quality standards with ability to go solid without breaking, settling, or bowing
• 5/8-inch spherical ball mounting ends with urethane misalignment cups to minimize road noise
• Adjustable coilover construction with preset preload for bolt-on installation

Technical Specifications:

• Extended Length: 26.75 inches
• Collapsed Length: 17.86 inches
• Stroke Length: 8.89 inches
• Top Mount: B1
• Bottom Mount: B1

These Dirt Logic 2.5 coilovers are fully serviceable and rebuildable, unlike most lesser-quality dampers. Each shock features vehicle-specific valving tuned specifically for Fabtech suspension systems, accounting for larger tires and providing superior all-around damping both on and off-road. Fabtech designs and tests all Dirt Logic shocks at their California R&D facility and hand-assembles them in their South Carolina manufacturing plant. The polished black anodized finish complements any vehicle color and is accented by the stainless steel shock body for a high-end appearance.

Simple bolt-on installation into factory locations requires no cutting, drilling, or modifications. Fabtech recommends rebuilding Dirt Logic shocks every 30,000 miles for like-new operation. Backed by a limited one-year warranty on leakage. Sold as a front pair for Jeep Wrangler JK 4WD applications with 5-inch lift systems.
