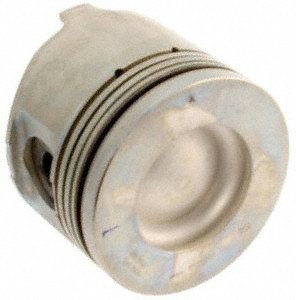

Mahle 224-3451 Clevite 224-3451 Engine Piston

Manufacturer

MAHLE

<p><img src="https://media.boatplicity.com/masterimages/images/banner/mahle.jpg" alt="MAHLE" width="100%" /></p>

Picture for manufacturer Mahle G32644 Fuel Injection Throttle Body Mounting Gasket

Part Number

224-3451
14 reviews
05/01/2034 11:38 AM
Sale Price

$452.37

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Mahle 224-3451 Clevite 224-3451 Engine Piston

Clevite 224-3451 Engine Piston

MAHLE 224-3451

Engine Piston Set

MAHLE® pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.

Products specifications

Piston Material

Aluminum

Piston Head Type

Flat Top

Compression Distance (in)

1.961

Bore Diameter (mm)

103.0

Bore Diameter (in)

4.055

Compression Distance (mm)

49.82

Measure Skirt Clearance At

0.670in from the bottom of skirt

Piston Casting Number

103V12

Piston Pin Diameter (in)

1.358

Piston Pin Diameter (mm)

34.5

Piston Recess Depth (in)

0.598

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Piston Recess Volume

38.06

Piston Skirt Clearance (in)

0.0018

Second Compression Ring Thickness

2.00

Piston Head Type

Bowl

Oil Ring Thickness

3.00

Piston Pin Outside Diameter

34.50

Piston Material

Aluminium

Top Compression Ring Thickness

3.00

Oversized

No
