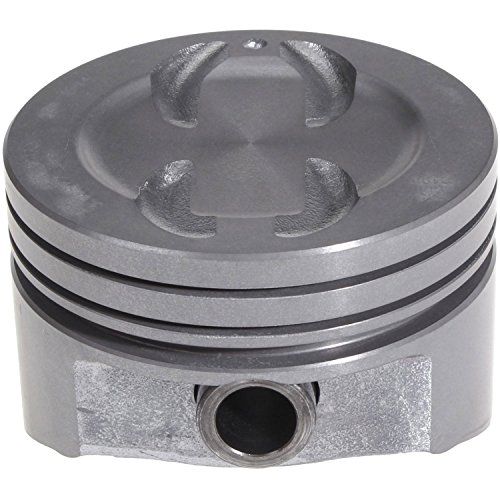

MAHLE 224-3544 OE Replacement Engine Piston Set

(GMC G2500 1979-95, Yukon 1992-95, K1500 1979-86, 1988-95, C1500 1979-86, 1988-95, K2500 1979-86, 1988-95, Jimmy 1971-91 + 162 more models)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3544
10 reviews
Sale Price

$195.21

Estimated ship date Saturday, November 28

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3544 Engine Piston Set delivers original equipment quality and precision engineering for reliable engine rebuilds and replacements. As one of the world's largest OE piston manufacturers, MAHLE produces pistons to the same exacting standards found in factory-built engines, ensuring proper form, fit, and function right out of the box.

Key Features:

  • Compensated ring grooves ensure proper ring loading and consistent oil control throughout the piston's service life
  • Expansion-controlled design provides small fitting clearances that reduce engine noise, wear, and emissions while improving oil control
  • MAHLE proprietary GRAFAL® anti-friction skirt coating (graphite-impregnated resin) reduces drag, scuffing, friction, and cylinder bore wear
  • Precision machined to tight tolerances for OE-level form, fit, and function
  • Lightweight construction minimizes reciprocating mass without sacrificing durability, reducing bearing loads and improving engine response
  • Ready-to-install set includes mounted piston rings, wrist pin, and retaining clips for engine builder convenience

MAHLE is a globally recognized leader in piston technology, with the development and production of pistons and piston systems as a core engineering competency. The 224-3544 piston set is the ideal choice for professionals and serious engine builders seeking a dependable, OE-quality replacement solution.

Products specifications

Fits

GMC G2500 1979-95, Yukon 1992-95, K1500 1979-86, 1988-95, C1500 1979-86, 1988-95, K2500 1979-86, 1988-95, Jimmy 1971-91, C3500 1979-86, 1988-95, K2500 Suburban 1979-86, 1992-95, K3500 1979-86, 1988-95, C15/C1500 Pickup 1971-74 + 158 more models

Piston Material

Hypereutectic

Bore Diameter (mm)

101.60

Piston Head Type

Recessed Head

Piston Pin Hole Location

Offset

Piston Pin Retention Type

Fixed

Piston Valve Reliefs Quantity

4

Compression Distance (in)

1.55

Bore Diameter (in)

4.0

Compression Distance (mm)

39.37

Measure Skirt Clearance At

0.709in from the bottom of skirt

Piston Casting Number

101L63

Piston Note

Replace in Full Sets only

Piston Pin Diameter (in)

.9273

Piston Recess Depth (in)

0.100

Piston Recess Diameter (in)

2.767

Piston Skirt Clearance (in)

.0015

With Piston Rings

No

Amount Oversized

Standard

Coated Skirt

No

Piston Item Grade

OE Replacement

Piston Length (in)

2.605

Piston Pin Outside Diameter

0.9279

Top Compression Ring Thickness

0.078

Piston Head Type

Dish

Oversized

No

Oil Ring Thickness

0.1875

Second Compression Ring Thickness

0.078
