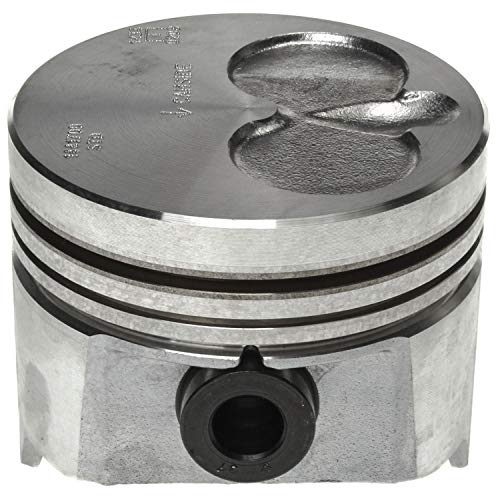

MAHLE 224-3508 OE Replacement Engine Piston Set

(Ford F-250 1988-94, F-350 1988-94, E-350 Econoline 1988-94, E-350 Econoline Club Wagon 1988-94, F Super Duty 1990-94, F59 1988-94 + 4 more models)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3508
18 reviews
Sale Price

$77.13

Estimated ship date Friday, November 27

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3508 is an OE-quality engine piston set engineered to meet or exceed original equipment specifications. As one of the world's largest OE piston manufacturers, MAHLE brings factory-grade engineering directly to the aftermarket, ensuring reliable fitment and long-term durability.

Key Features:

  • Compensated ring grooves ensure proper ring loading and consistent oil control throughout the piston's service life
  • Expansion-controlled design maintains tight fitting clearances to minimize engine noise, reduce wear, and lower emissions
  • Improved oil control thanks to precision-engineered groove geometry and OE-matched tolerances
  • Installation-ready — pistons are supplied with mounted piston rings, wrist pin, and retaining clips for hassle-free engine assembly
  • OE pedigree — MAHLE is a global leader in original equipment piston manufacturing, supplying major automotive and diesel engine producers worldwide

The MAHLE 224-3508 piston set is an ideal choice for engine builders seeking a direct OE replacement that delivers factory-level performance and reliability without compromise.

Products specifications

Fits

Ford F-250 1988-94, F-350 1988-94, E-350 Econoline 1988-94, E-350 Econoline Club Wagon 1988-94, F Super Duty 1990-94, F59 1988-94, E-250 Econoline Club Wagon 1988-91; BMW 540i 1999-2003, 740iL 1999-2001, 740i 1999-2001

Piston Material

Aluminum

Compression Distance (in)

1.950

Bore Diameter (mm)

104.40

Bore Diameter (in)

4.110

Compression Distance (mm)

49.53

Measure Skirt Clearance At

1.150in from the bottom of skirt

Piston Casting Number

104L32

Piston Head Type

Ricardo Bowl

Piston Pin Diameter (in)

1.110

Piston Pin Diameter (mm)

28.204

Piston Pin Retention Type

Floating

Piston Skirt Clearance (in)

.0055

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Coated Skirt

No

Second Compression Ring Thickness

2.00

Piston Material

Aluminium

Piston Pin Outside Diameter

28.204

Top Compression Ring Thickness

3.00

Oversized

No

Oil Ring Thickness

3.50
