MAHLE 224-3709 Engine Piston Set

Manufacturer

MAHLE

<p><img src="https://media.boatplicity.com/masterimages/images/banner/mahle.jpg" alt="MAHLE" width="100%" /></p>

Picture for manufacturer Mahle RR7045

Part Number

224-3709
21 reviews
04/30/2034 5:07 PM
Sale Price

$129.84

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

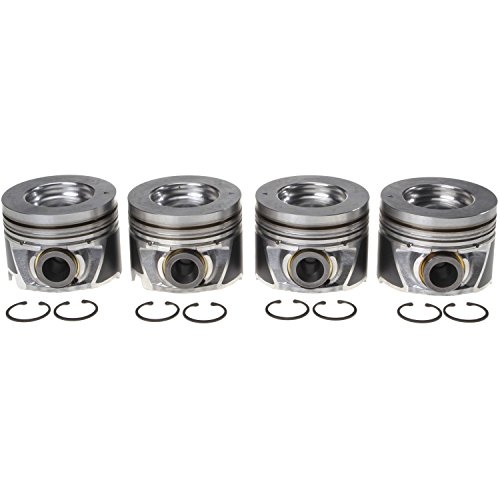

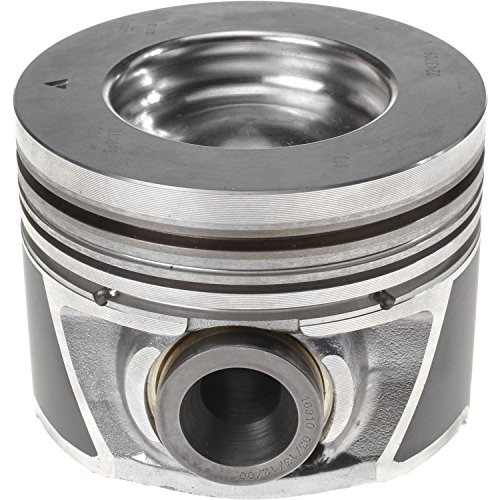

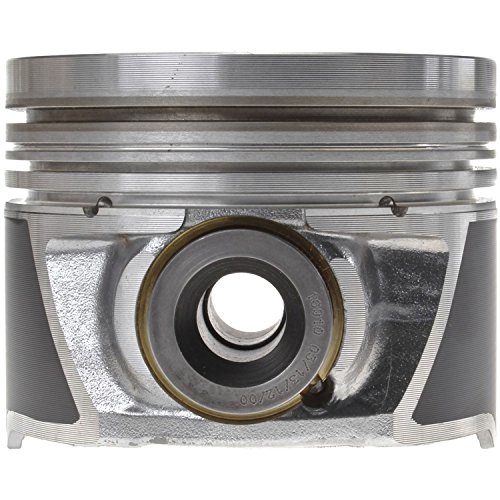

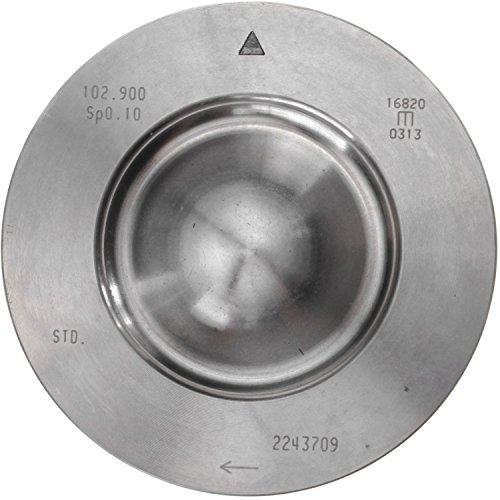

MAHLE 224-3709 Engine Piston Set

MAHLE 224-3709

Engine Piston Set

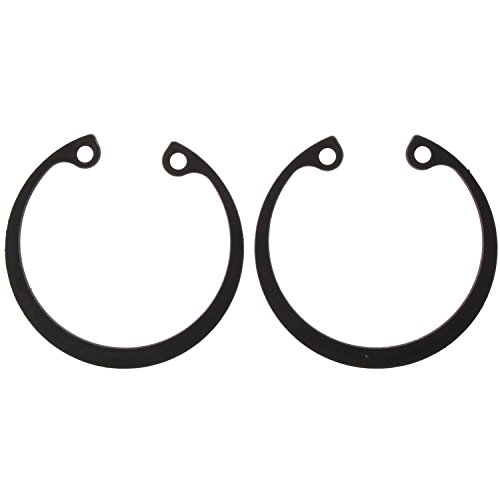

MAHLE® pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.

Products specifications

Piston Material

Aluminum

Piston Head Type

Flat Top

Piston Pin Hole Location

Offset

Compression Distance (in)

1.961

Bore Diameter (mm)

103.0

Bore Diameter (in)

4.055

Measure Skirt Clearance At

0.551in from the bottom of skirt

Piston Pin Diameter (in)

1.3386

Piston Pin Retention Type

Floating

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Piston Length (in)

3.1417

Piston Recess Depth (mm)

15.6

Piston Recess Diameter (mm)

59.8

Piston Skirt Clearance (mm)

0.0991

Piston Skirt Clearance (in)

0.0039

Piston Pin Outside Diameter

34.50

Top Compression Ring Thickness

3.00

Oil Ring Thickness

3.00

Piston Material

Aluminium

Oversized

No

Second Compression Ring Thickness

2.00

Piston Head Type

Bowl
