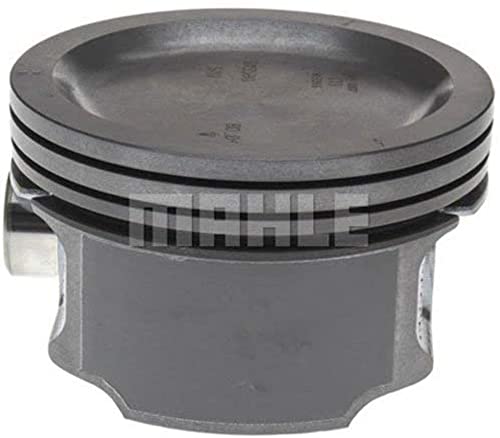

MAHLE 224-3413 Engine Piston Set with Rings, Pin, and Clips

(Ford F-150 1999-2005, Mustang 1999-2004, Explorer 2002-06, Expedition 1999-2004, F-250 1999, Crown Victoria 1999-2005, E-150 2003-05 + 9 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3413
19 reviews
Sale Price

$31.23

Estimated ship date Monday, November 23

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3413 Engine Piston Set delivers original equipment quality and precision engineering for reliable engine rebuilding. MAHLE is one of the world's largest OE piston manufacturers, and this set reflects the same exacting standards used in factory production vehicles.

Key Features:

  • Compensated Ring Grooves: Engineered to assure proper ring loading and consistent oil control throughout the piston's service life
  • Expansion-Controlled Design: Tight fitting clearances minimize engine noise, reduce wear, lower emissions, and improve overall oil control
  • Ready-to-Install Kit: Each set comes complete with mounted piston rings, wrist pin, and retaining clips for maximum convenience during engine assembly
  • OE-Equivalent Quality: Manufactured to the same specifications and tolerances as original equipment pistons
  • Trusted OE Supplier: MAHLE is a globally recognized original equipment piston supplier to major automotive manufacturers worldwide

The MAHLE 224-3413 piston set is an ideal choice for engine builders seeking a complete, drop-in replacement solution that restores factory performance, compression, and longevity.

Products specifications

Fits

Ford F-150 1999-2005, Mustang 1999-2004, Explorer 2002-06, Expedition 1999-2004, F-250 1999, Crown Victoria 1999-2005, E-150 2003-05, E-250 2003-05, E-150 Econoline 1999-2002, F-150 Heritage 2004, E-150 Econoline Club Wagon 1999-2002 + 5 more models

Piston Material

Hypereutectic

Piston Head Type

Recessed Head

Piston Pin Hole Location

Offset

Compression Distance (in)

1.21

Bore Diameter (mm)

90.215

Bore Diameter (in)

3.551

Compression Distance (mm)

30.75

Measure Skirt Clearance At

.354 from the bottom

Piston Casting Number

90L90

Piston Length (mm)

51.7144

Piston Note

Coated Skirt

Piston Pin Diameter (in)

0.866

Piston Pin Diameter (mm)

21.9964

Piston Pin Retention Type

Floating

Piston Recess Depth (in)

0.193

Piston Recess Diameter (in)

2.931

With Piston Rings

No

Amount Oversized

Standard

Piston Item Grade

OE Replacement

Piston Length (in)

2.036

Piston Skirt Clearance (mm)

0.36

Piston Skirt Clearance (in)

0.0014

Piston Pin Outside Diameter

22.00

Piston Material

Aluminium

Piston Head Type

Dish

Top Compression Ring Thickness

1.50

Oil Ring Thickness

3.00

Oversized

No

Second Compression Ring Thickness

1.50
