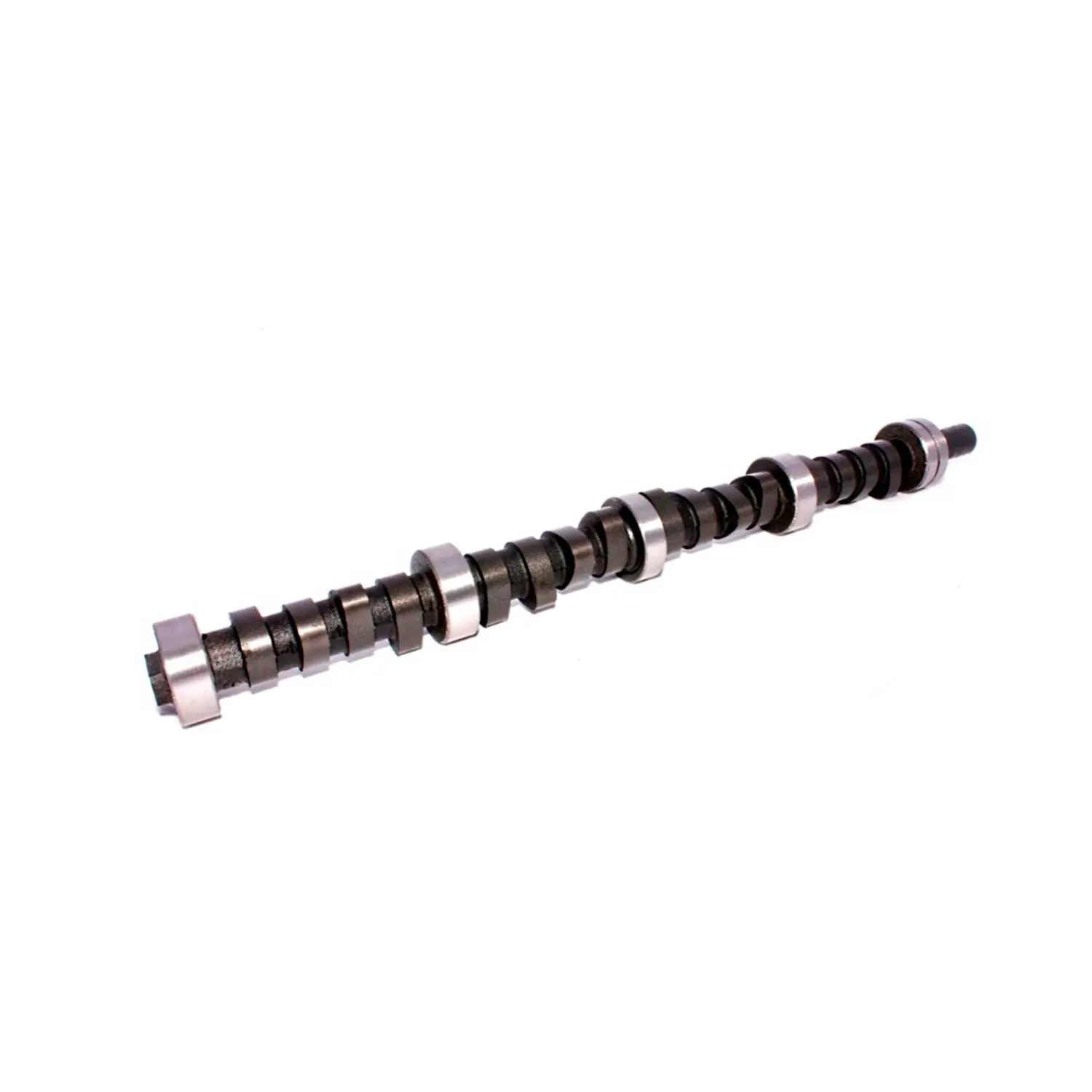

COMP Cams SK10-216-5 Xtreme Energy 230/236 Hydraulic Flat Tappet Cam SK-Kit for AMC 290-401

(Jeep Cherokee 1974-83, CJ7 1976-81, CJ5 1971-81, Grand Wagoneer 1984-91, J10 1974-88, Wagoneer 1972-83, J20 1974-88, Commando 1972-73 + 28 more models)

Manufacturer

Picture for manufacturer COMP Cams

Part Number

SK10-216-5
9 reviews
Sale Price

$562.95

Estimated ship date Wednesday, November 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams SK10-216-5 is an Xtreme Energy Small Kit (SK-Kit) built around the XE274H hydraulic flat tappet camshaft, designed specifically for American Motors (AMC) 290–401 cubic inch V8 engines (1966–1991). This kit delivers very strong mid-range torque and throttle response with a 2,200+ RPM stall requirement, making it an ideal choice for street/strip builds demanding aggressive performance.

The Xtreme Energy series features an aggressive lobe profile engineered to produce superior throttle response and increased top-end horsepower compared to other camshafts with equivalent duration figures, while simultaneously delivering increased engine vacuum to support power brake applications. Aftermarket valve springs are required due to the aggressive lobe design.

Camshaft Specifications:

  • Grind Number: XE274H
  • Camshaft Series: Magnum
  • Cam Type: Hydraulic Flat Tappet
  • Intake Duration @ .050" Lift: 230°
  • Exhaust Duration @ .050" Lift: 236°
  • Advertised Intake Duration: 274°
  • Advertised Exhaust Duration: 286°
  • Intake Valve Lift: 0.520"
  • Exhaust Valve Lift: 0.523"
  • Lobe Separation: 110°
  • Basic Operating RPM Range: 2,000–6,000 RPM
  • Camshaft Material: Cast Iron
  • Gear Attachment: 1-Bolt

SK-Kit Contents:

  • Camshaft (XE274H)
  • Hydraulic flat tappet lifters
  • Timing chain set
  • Assembly lube
  • Decals and instructions

Best performance is achieved when paired with aftermarket intake manifolds, headers, and lower rear-end gear ratios. Note that aftermarket valve springs are required and not included in this SK-Kit. For a more complete package including valve springs, retainers, and locks, consider upgrading to the K10-216-5 K-Kit.

Products specifications

Fits

Jeep Cherokee 1974-83, CJ7 1976-81, CJ5 1971-81, Grand Wagoneer 1984-91, J10 1974-88, Wagoneer 1972-83, J20 1974-88, Commando 1972-73, CJ6 1971-75, Jeepster 1972-73, J-100 1971-73, J-2500 1970-73, J-4600 1971-73, J-4500 1971-73 + 22 more models

Cam Type

Hydraulic Flat Tappet

Engine Family

American Motors 290-401 c.i. 8 Cylinder (1966-1991)

Kit Type

SK-Kit - Small Kit

Intake Valve Lift

0.52

Exhaust Valve Lift

0.523

Camshaft Material

Cast Iron

Camshaft Series

Magnum

Assembly Lubricant Included

Yes

Camshaft Gear Attachment

1-Bolt

LOBE SEPARATION

110

Valve Springs Required

Yes

Lifter Type

Hydraulic Flat Tappet

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Gaskets Included

No

Advertised Intake Duration

274

Basic Operating RPM Range

2,000-6,000

Locks Included

No

Exhaust Duration at .050 inch Lift

236

Intake Duration at .050 Inch Lift

230

Lifters Included

Yes

Retainers Included

No

Advertised Exhaust Duration

286

Timing Chain and Gears Included

Yes

Valve Stem Seals Included

No

Pushrods Included

No
