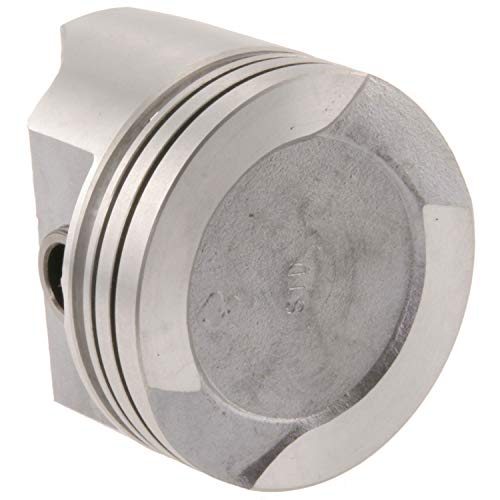

MAHLE 224-1840 OE-Quality Engine Piston Set with Rings Pin Clips

(Ford F-150 1977-79, F-250 1977-82, Bronco 1978-79, Thunderbird 1971-74, 1977-78, F-350 1977-82, Galaxie 500 1971-74, F-100 1977-79 + 29 more models)

Part of: MAHLE Engine Piston Set with Rings Pins Clips

Other options in this family: MAHLE 224-3935WR MAHLE 224-3355WR.020 MAHLE 224-2908WR.020 MAHLE 224-3503WR.020 MAHLE 224-3503WR.010

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-1840
12 reviews
Sale Price

$174.60

Estimated ship date Monday, November 23

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-1840 is an OE-quality engine piston set engineered to meet or exceed original equipment standards. MAHLE is one of the world's largest OE piston manufacturers, supplying major automakers globally, and this set brings that same factory-grade precision to the aftermarket.

Key Features:

  • Compensated ring grooves ensure proper ring loading and consistent oil control throughout the life of the engine
  • Expansion-controlled design allows for tight fitting clearances, reducing engine noise, wear, and emissions
  • Ready-to-install set — includes mounted piston rings, wrist pin, and retaining clips for maximum convenience to the engine builder
  • OE-matched specifications — manufactured to the same design standards as original equipment pistons
  • Improved oil control characteristics extend engine service life and help maintain performance

Designed for engine builders and professional technicians who demand OE-level quality, the MAHLE 224-1840 piston set delivers a complete, installation-ready solution that simplifies the rebuild process without compromising on fit, function, or durability.

Products specifications

Fits

Ford F-150 1977-79, F-250 1977-82, Bronco 1978-79, Thunderbird 1971-74, 1977-78, F-350 1977-82, Galaxie 500 1971-74, F-100 1977-79, Ranchero 1972-78, Torino 1972-76, E-350 Econoline 1980-82, Gran Torino 1972-76, LTD 1971-78 + 24 more models

Piston Material

Aluminum

Bore Diameter (mm)

101.60

Bore Diameter (in)

4.0

Piston Head Type

Recessed Head

Compression Distance (in)

1.627

Compression Ratio

7.9:1

Compression Distance (mm)

41.40

Measure Skirt Clearance At

1.00in from bottom of skirt

Piston Length (mm)

82.42

Piston Pin Diameter (in)

0.9752

Piston Pin Diameter (mm)

24.778

Piston Recess Depth (in)

0.115

Piston Recess Diameter (in)

2.944

Piston Length (in)

3.23

Piston Skirt Clearance (mm)

0.38

Piston Skirt Clearance (in)

0.0015

Top Compression Ring Thickness

0.0781

Oil Ring Thickness

0.1875

Oversized

No

Piston Material

Aluminium

Piston Pin Outside Diameter

0.9752

Piston Head Type

Dish

Second Compression Ring Thickness

0.0781
