MAHLE 224-3452.020 Duramax Right Bank Piston 0.020" Oversize

(2001-2005 Chevrolet Silverado 2500 HD; 2001-2005 Chevrolet Silverado 3500; 2001-2005 GMC Sierra 2500 HD; 2001-2005 GMC Sierra 3500 + 2 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3452.020
11 reviews
Sale Price

$106.06

Estimated ship date Wednesday, November 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

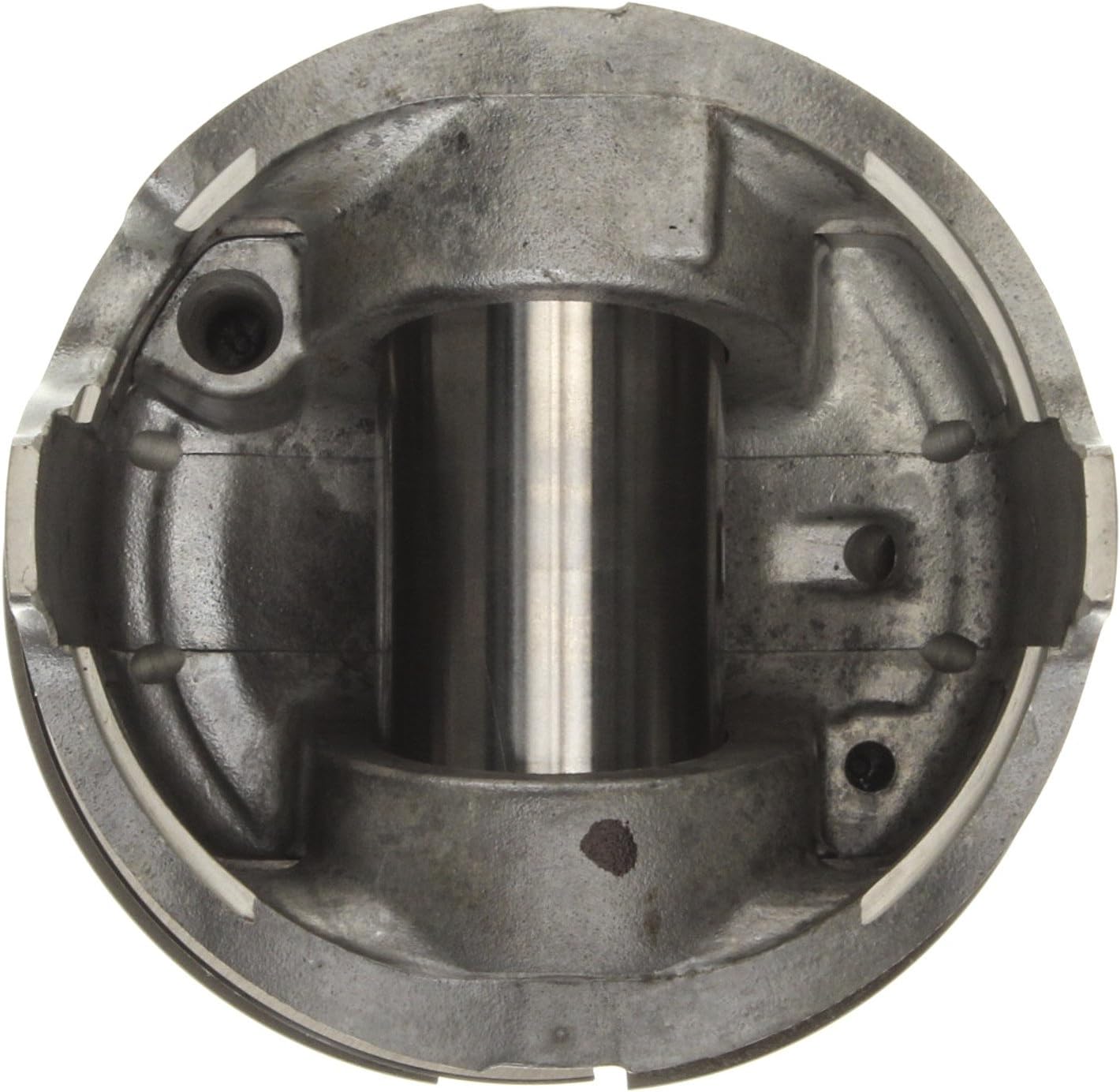

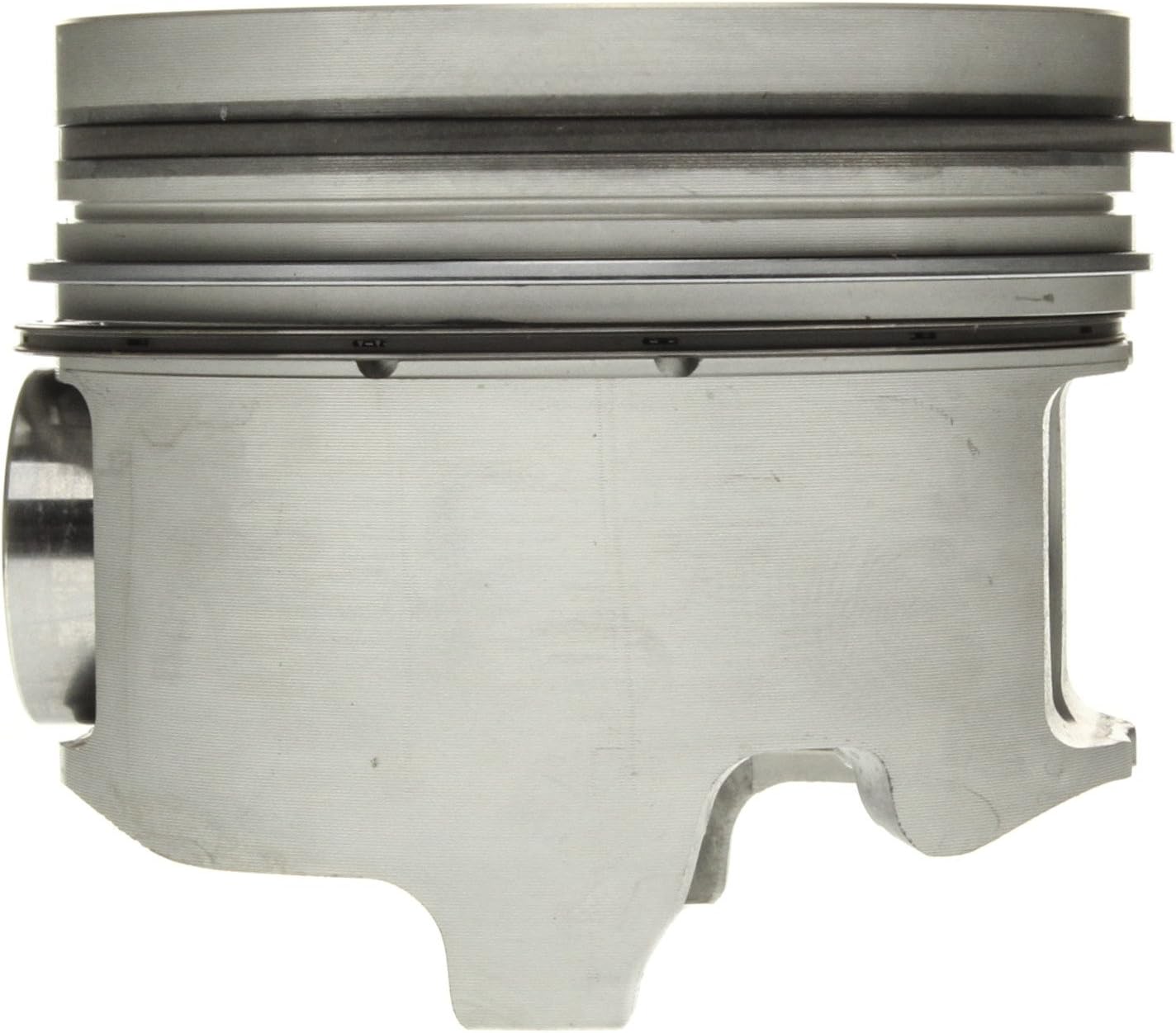

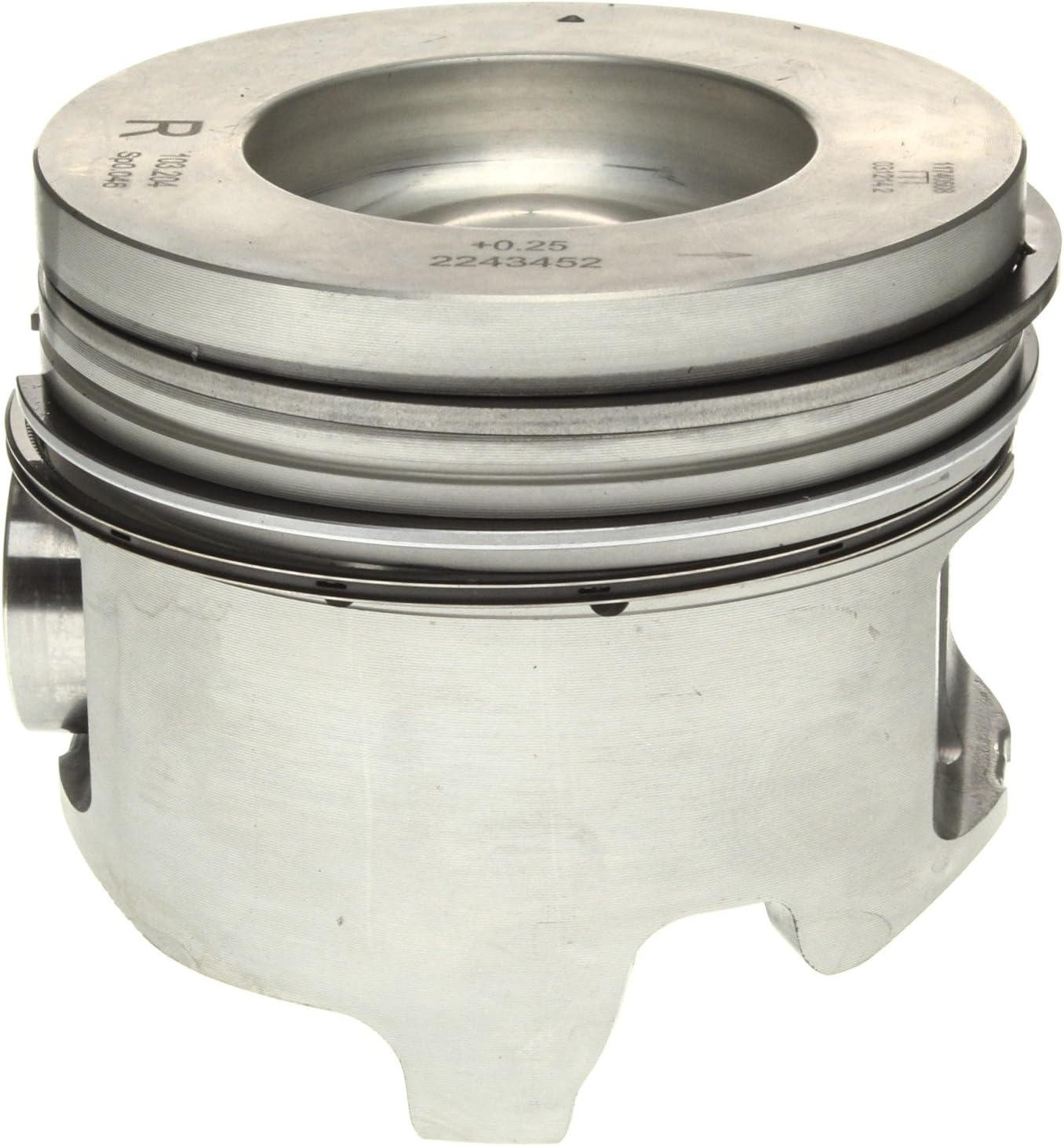

The MAHLE 224-3452.020 is a precision-engineered replacement aluminum piston designed for 2001-2005 GM 6.6L Duramax LB7 and LLY diesel engines, specifically for the right bank cylinders with a 0.020 inch oversize bore. This piston cross-references to OEM part numbers 97226116 and 97303755, ensuring proper fitment and compatibility with factory specifications.

Key Specifications:

  • Bore diameter: 4.055 inches (103.00mm)
  • Compression distance: 1.961 inches (49.82mm)
  • Piston pin diameter: 1.358 inches (34.5mm)

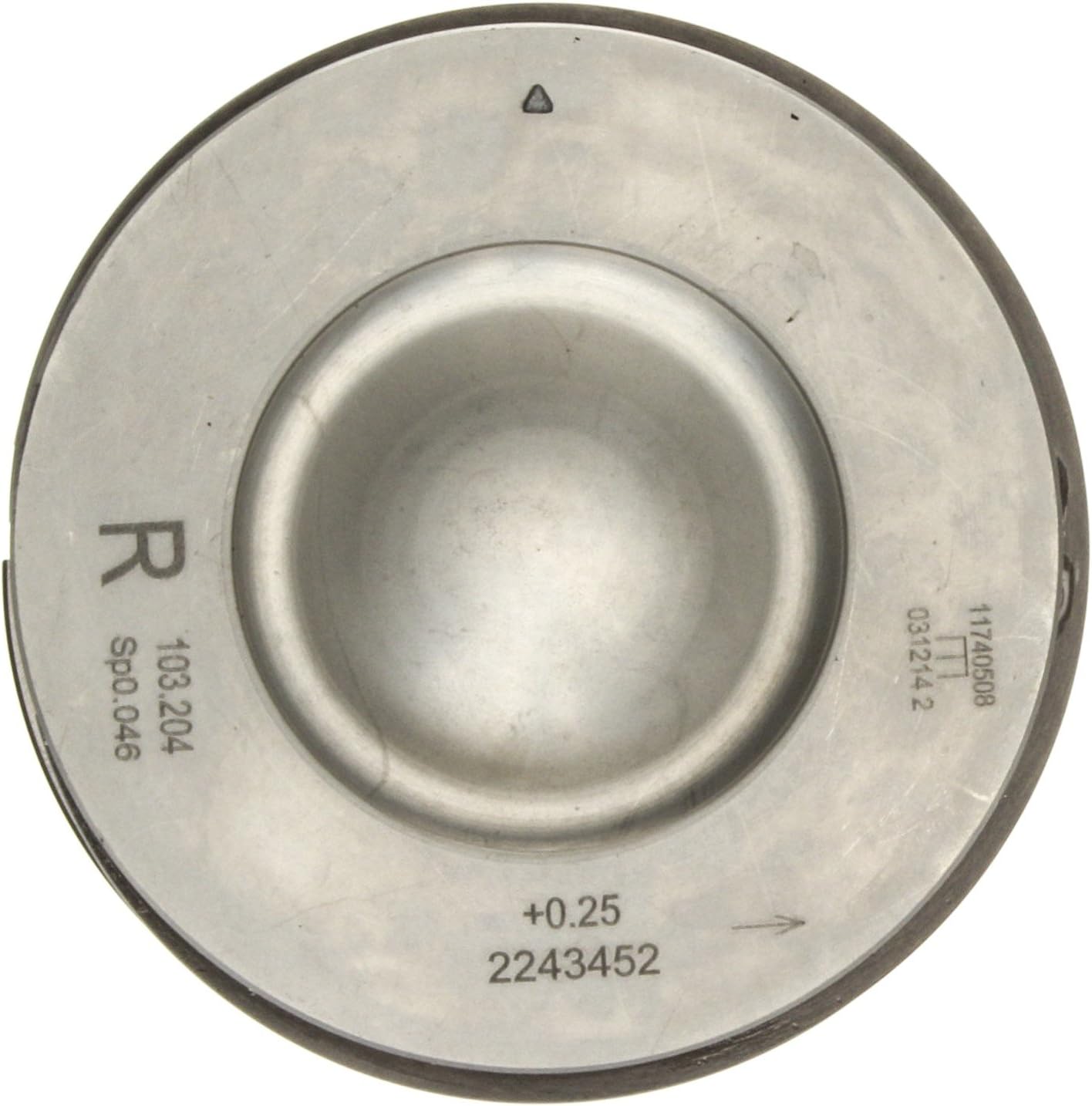

  • Dish-style piston head with combustion chamber
  • Casting number: 103V12

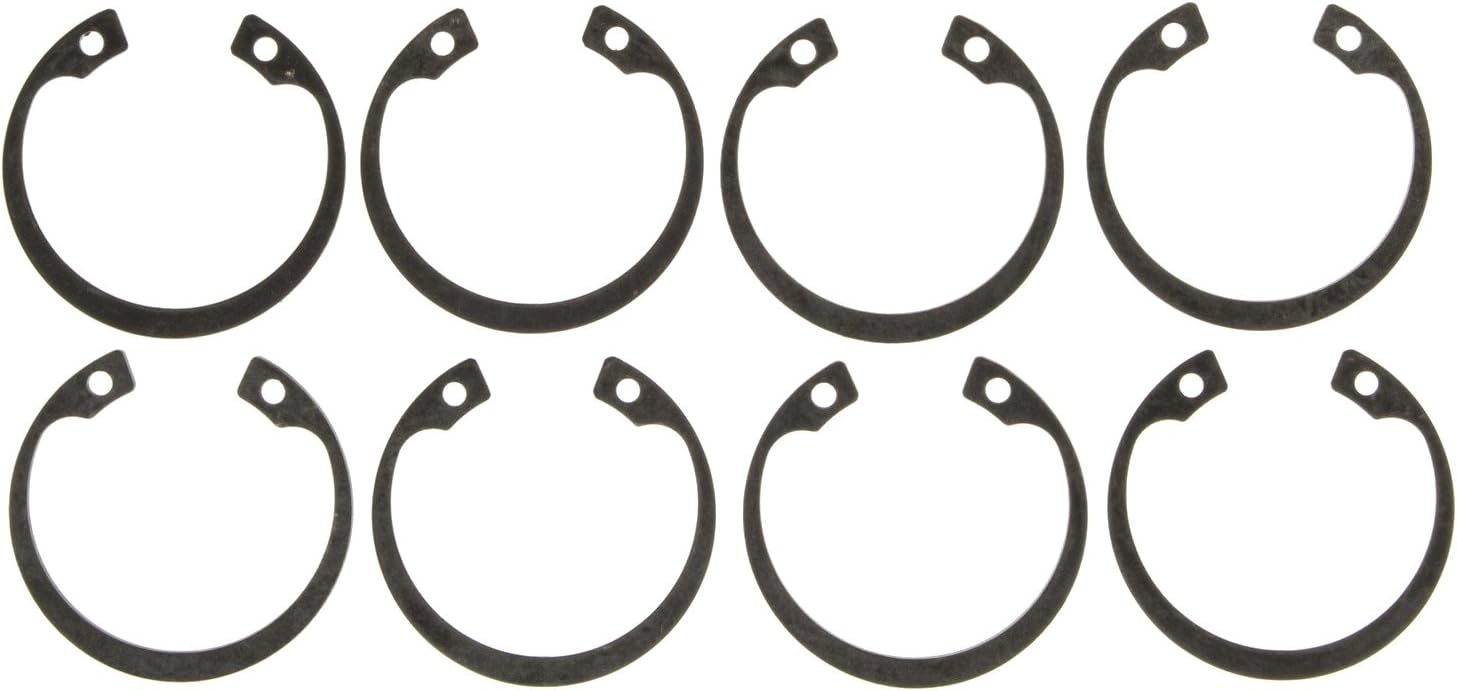

  • Includes wrist pin and clips

Features and Benefits:

  • Compensated ring grooves ensure proper ring loading and oil control
  • Expansion-controlled design maintains small fitting clearances to reduce engine noise and wear
  • Standard compression height for OE replacement applications
  • Ideal for engine rebuilds requiring 0.020" bore machining

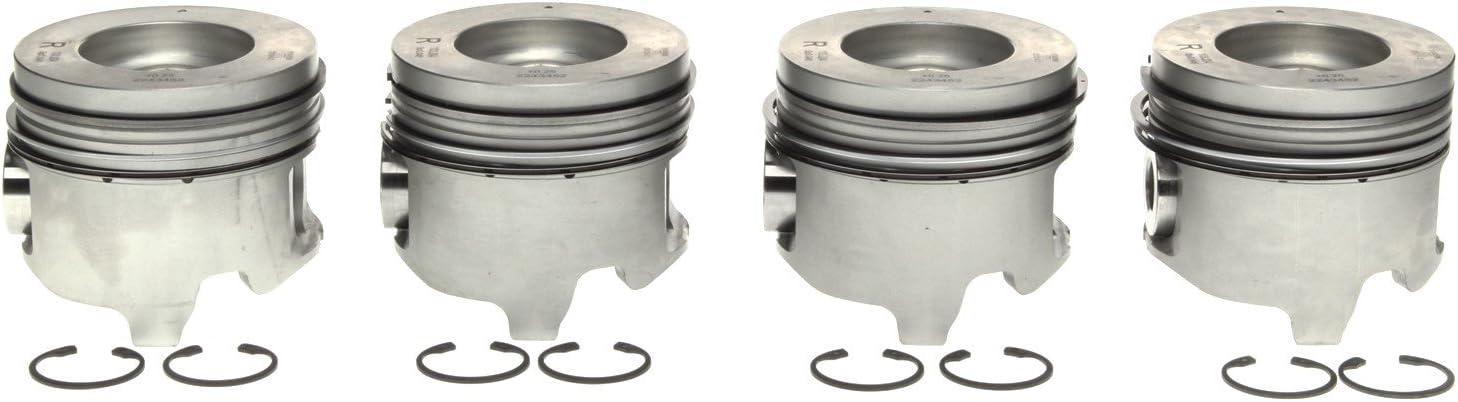

This piston is sold individually, and a quantity of 4 must be ordered for a complete right bank. Designed specifically for engines machined with 0.020 inch oversized bore. MAHLE Original pistons deliver OE-quality construction and reliability, making them the ideal choice for restoring your Duramax diesel engine to factory performance standards.

Products specifications

Fits

2001-2005 Chevrolet Silverado 2500 HD; 2001-2005 Chevrolet Silverado 3500; 2001-2005 GMC Sierra 2500 HD; 2001-2005 GMC Sierra 3500; 2004-2007 Mazda RX-8 Base; 2008 Mazda RX-8 Grand Touring

With Piston Rings

No

Amount Oversized

.020IN

Piston Item Grade

OE Replacement

Top Compression Ring Thickness

3.00

Oil Ring Thickness

3.00

Oversized

Yes

Piston Material

Aluminium

Second Compression Ring Thickness

2.00

Piston Head Type

Bowl

Piston Pin Outside Diameter

34.50
