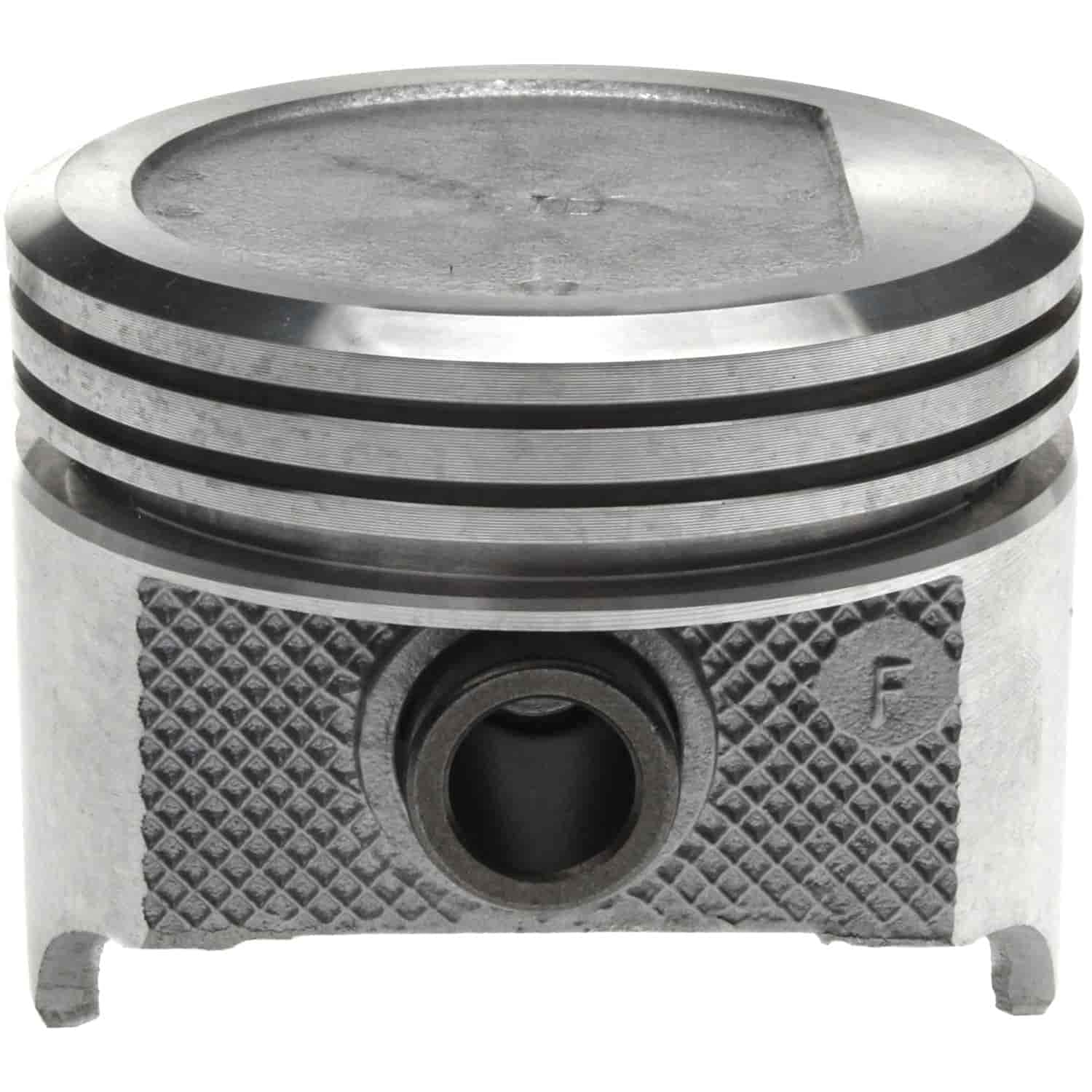

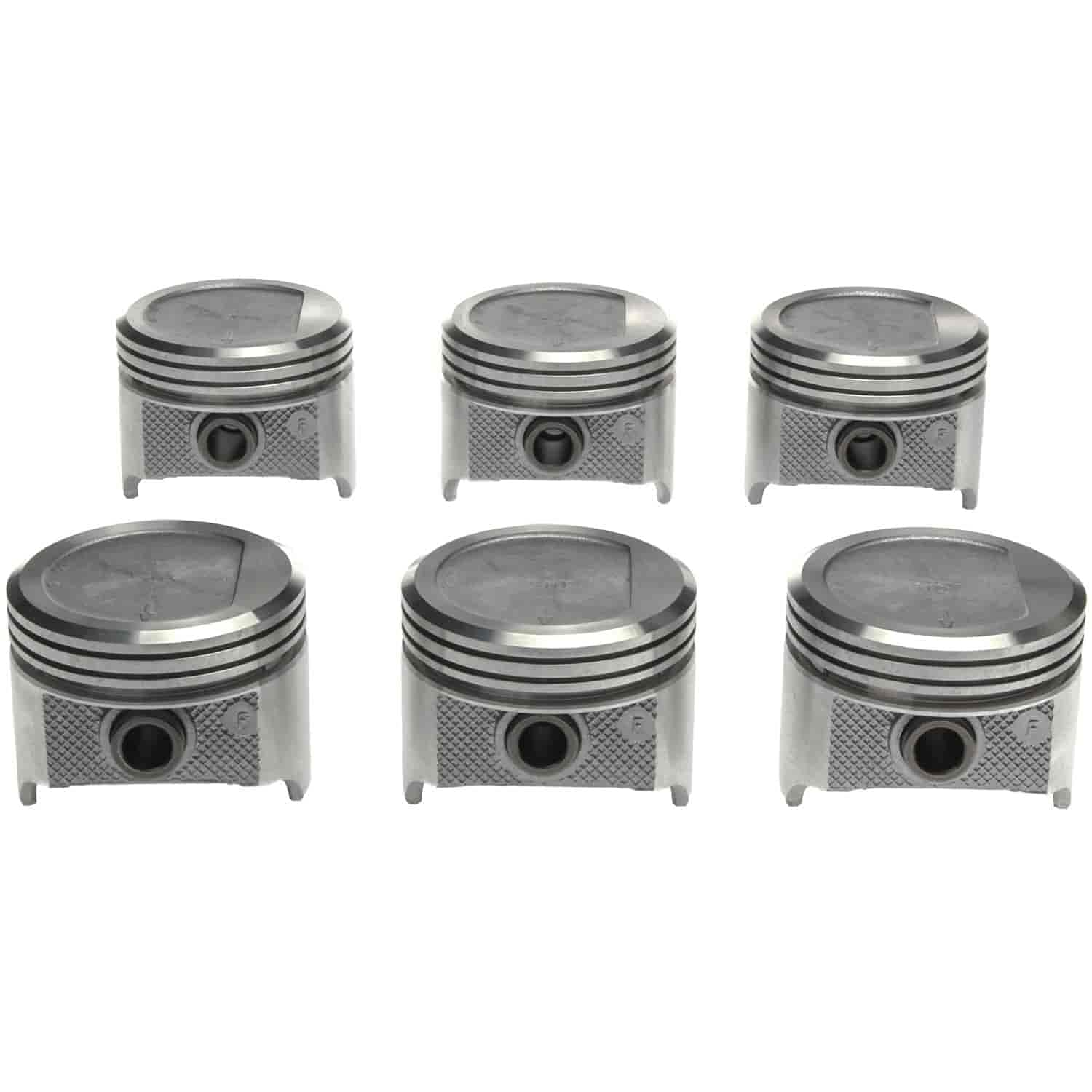

MAHLE 224-1658.060 Engine Piston Set with Rings, Pin, and Clips

(GMC G2500 1979-84, K1500 1979-84, C1500 1979-84, K2500 1980, Jimmy 1970-82, C3500 1979-80, C15/C1500 Pickup 1968-74, C2500 1979-84 + 91 more models)

Manufacturer

Part Number

224-1658.060
Sale Price

$20.67

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-1658.060 is a complete engine piston set engineered to original equipment (OE) standards, delivering the same precision and durability found in factory assemblies. MAHLE is one of the world's largest OE piston manufacturers, supplying major automakers globally and bringing that same manufacturing excellence to the aftermarket.

Key Features:

  • OE-Quality Construction: Manufactured to original equipment specifications for a direct-fit, reliable replacement
  • Compensated Ring Grooves: Engineered ring grooves ensure proper ring loading and optimal oil control throughout the piston's service life
  • Expansion-Controlled Design: Precision thermal expansion management allows for tighter fitting clearances, reducing engine noise, wear, and emissions
  • Improved Oil Control: Advanced design minimizes oil consumption and maintains consistent film lubrication across the cylinder wall
  • Ready-to-Install Kit: Each set includes mounted piston rings, wrist pin, and retaining clips — everything needed for a complete installation
  • 0.060" Oversize: Machined to 0.060" (1.5mm) oversize for use in bored or worn cylinders that have been machined to the corresponding oversize dimension

The MAHLE 224-1658.060 piston set is ideal for engine rebuilders seeking a complete, installer-ready solution. The included rings, pin, and clips eliminate the need to source additional components separately, saving time and ensuring all parts are properly matched.

Products specifications

Fits

GMC G2500 1979-84, K1500 1979-84, C1500 1979-84, K2500 1980, Jimmy 1970-82, C3500 1979-80, C15/C1500 Pickup 1968-74, C2500 1979-84, K1500 Suburban 1979-80, G25/G2500 Van 1967-74, C1500 Suburban 1979-80, K15/K1500 Pickup 1968-74 + 87 more models

Amount Oversized

.060IN

Second Compression Ring Thickness

0.0781

Piston Material

Aluminium

Oil Ring Thickness

0.1875

Oversized

Yes

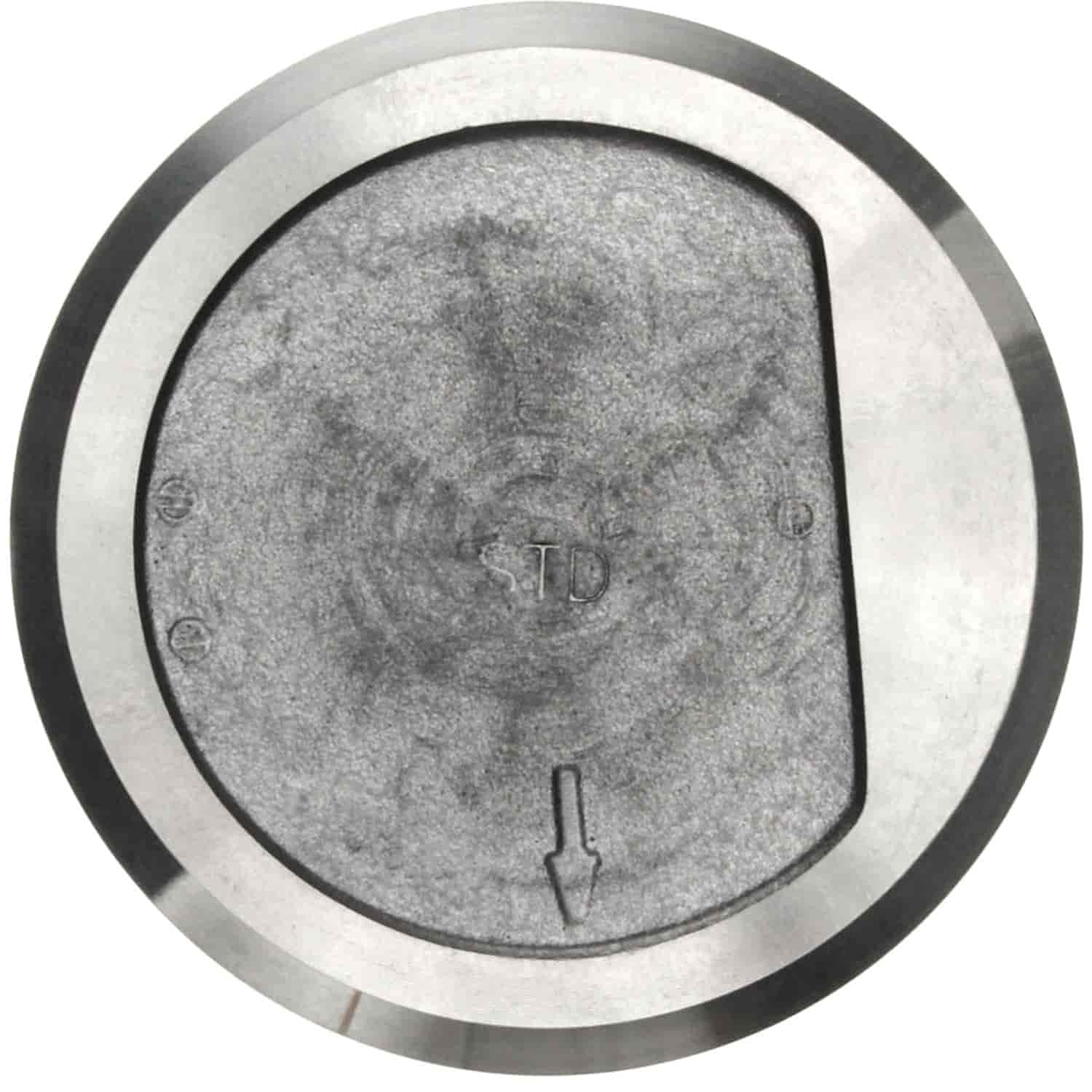

Piston Head Type

Dish

Piston Pin Outside Diameter

0.9273

Top Compression Ring Thickness

0.0781
