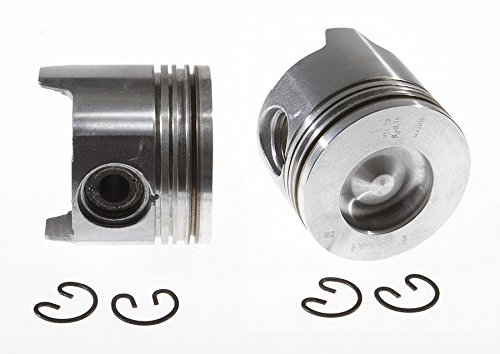

MAHLE 224-3409 OE Replacement Diesel Piston Set

(Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, F-250 1994-97, Excursion 2000-03, F-350 1994-97, E-350 Super Duty 1999-2003 + 17 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3409
14 reviews
Sale Price

$68.49

Estimated ship date Wednesday, November 25

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3409 Clevite piston set delivers original equipment quality for diesel engine rebuilds and replacements. Engineered as an OE systems supplier, MAHLE pistons define the original equipment standard rather than simply meeting it.

Key Features:

  • Cast aluminum construction with dish design for optimal combustion
  • Standard bore diameter of 4.110 inches (104.40mm)
  • Pin diameter: 1.3085 inches
  • Reentrant bowl head design for efficient fuel mixing
  • Compensated ring grooves ensure proper ring loading and oil control
  • Expansion-controlled design reduces engine noise, wear, and emissions
  • Minimum skirt clearance: 0.0550 inches (measured 0.850 inches from bottom of skirt)
  • Sold as a complete set of 8 pistons

MAHLE Original pistons are built to exact OE specifications, providing the perfect fit and function for your engine application. Each piston features OE-quality construction designed to reduce engine noise, piston and cylinder wear while improving oil control. Backed by MAHLE's industry-leading 2-year, 200,000-mile warranty, these pistons deliver reliable performance for demanding diesel applications.

Products specifications

Fits

Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, F-250 1994-97, Excursion 2000-03, F-350 1994-97, E-350 Super Duty 1999-2003, F-450 Super Duty 1999-2003, F-550 Super Duty 1999-2003, E-350 Econoline 1995-2002 + 14 more models

Piston Material

Aluminum

Compression Distance (in)

2.132

Compression Ratio

Varies

Bore Diameter (mm)

104.39

Bore Diameter (in)

4.110

Compression Distance (mm)

54.15

Measure Skirt Clearance At

0.850in from the bottom of skirt

Piston Casting Number

104L34

Piston Head Type

Reentrant Bowl

Piston Length (mm)

96.26

Piston Note

Keystone top ring

Piston Pin Diameter (in)

1.307

Piston Pin Diameter (mm)

33.2359

Piston Pin Hole Location

Center

Piston Recess Depth (in)

0.665

Piston Recess Diameter (in)

2.260

Piston Skirt Clearance (in)

.0055

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Reduced .010

Piston Item Grade

OE Replacement

Piston Length (in)

3.619

Piston Recess Volume

39.59

Piston Skirt Clearance (mm)

0.14

Oversized

No

Second Compression Ring Thickness

2.00

Piston Material

Aluminium

Oil Ring Thickness

3.40

Piston Pin Outside Diameter

33.233

Piston Head Type

Bowl

Top Compression Ring Thickness

3.00
