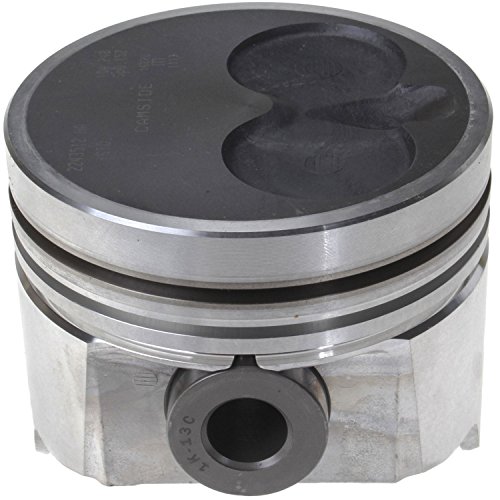

MAHLE 224-3512HA Engine Piston Set

(1994 Ford F-250; 1994 Ford F-350; 1994 Ford F Super Duty; 1994 Ford F59; 1969-1974 MG MGB Base; 1975-1976 MG MGB V-8; 1977-1980 MG MGB MK IV)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3512HA
17 reviews
Sale Price

$82.82

Estimated ship date Monday, November 23

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3512HA Engine Piston Set delivers OE-quality performance and precision engineering, making it a trusted choice for engine builders and professional technicians alike. MAHLE is one of the largest original equipment (OE) piston manufacturers in the world, bringing factory-level quality to the aftermarket.

Key Features:

  • Compensated Ring Grooves: Engineered to ensure proper ring loading and optimal oil control throughout the piston's service life
  • Expansion-Controlled Design: Tight fitting clearances help reduce engine noise, minimize wear, lower emissions, and improve oil control
  • Ready for Installation: Each piston set comes fully assembled with mounted piston rings, wrist pin, and retaining clips included — no additional hardware required
  • OE-Grade Materials: Manufactured to the same standards and specifications as original equipment pistons found in new vehicles
  • World-Class Manufacturing: Produced by one of the largest OE piston suppliers globally, ensuring consistent quality and dimensional accuracy

Designed as a direct OE replacement, the MAHLE 224-3512HA piston set simplifies the rebuild process by providing everything needed for a complete installation. Whether you're performing a full engine rebuild or replacing worn pistons, this set provides the reliability and fit you'd expect from an original equipment supplier.

Products specifications

Fits

1994 Ford F-250; 1994 Ford F-350; 1994 Ford F Super Duty; 1994 Ford F59; 1969-1974 MG MGB Base; 1975-1976 MG MGB V-8; 1977-1980 MG MGB MK IV

Piston Material

Aluminum

Compression Distance (in)

1.940

Bore Diameter (mm)

104.40

Bore Diameter (in)

4.110

Compression Distance (mm)

49.28

Measure Skirt Clearance At

1.000in from the bottom of skirt

Piston Casting Number

104L33

Piston Head Type

Ricardo Bowl

Piston Note

Hard anodized crown. Keystone top and second ring. Big Pin.

Piston Pin Diameter (in)

1.307

Piston Pin Diameter (mm)

33.2

Piston Pin Retention Type

Floating

Piston Skirt Clearance (in)

.0055

Compression Height (in)

Reduced .010in

Coated Skirt

No

Oversized

No

Piston Material

Aluminium

Piston Pin Outside Diameter

33.232

Oil Ring Thickness

3.50

Top Compression Ring Thickness

3.14

Second Compression Ring Thickness

2.50
