MAHLE 224-1658.040 Engine Piston Set .040 Over 250 CID 4.1L L6 Aluminum

(GMC G2500 1979-84, K1500 1979-84, C1500 1979-84, K2500 1980, Jimmy 1970-82, C3500 1979-80, C15/C1500 Pickup 1968-74, C2500 1979-84 + 92 more models)

Manufacturer

Part Number

224-1658.040
Sale Price

$21.18

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

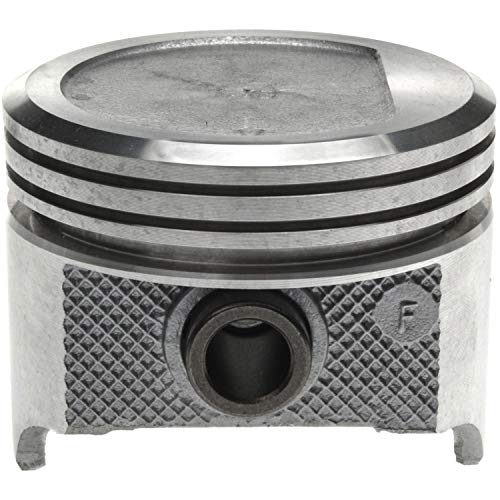

The MAHLE 224-1658.040 is a .040" oversize OE-replacement engine piston set for the General Motors 250 CID (4.1L) inline six-cylinder engine. Manufactured from aluminum with a D-shape recessed head design (0.060" recess depth), these pistons feature an offset pin hole and are precision-machined to exacting tolerances for reliable, long-service engine rebuilds.

Key Features:

  • OE Form, Fit & Function: Engineered to match original equipment specifications for consistent compression and sealing across all cylinders
  • Compensated Ring Grooves: Maintain proper ring loading and oil control throughout the engine's operating temperature range
  • Expansion-Controlled Design: Tight fitting clearances reduce engine noise, wear, and emissions while improving oil control
  • Aluminum Construction: Lightweight design reduces reciprocating mass and bearing loads for smoother engine operation
  • MAHLE GRAFAL Anti-Friction Skirt Coating: Graphite-impregnated resin coating minimizes drag, scuffing, and cylinder bore wear
  • Ready for Installation: Piston pin and retaining clips included for engine builder convenience

Specifications:

  • Bore Size: 3.88" (98.4mm) — .040" oversize
  • Head Style: D-Shape Recessed, 0.060" Recess Depth
  • Pin Diameter: 0.9273"
  • Compression Height: 1.640"
  • Ring Dimensions: 5/64" / 5/64" / 3/16"
  • Pin Hole: Offset
  • Compatible Ring Sets — Cast Iron: 50514CP | Premium: 40514CP

MAHLE is one of the world's leading OE piston manufacturers, supplying precision engine components to major automakers globally. The 224-1658.040 piston set delivers the same engineering standards found in factory assemblies, making it the trusted choice for professional engine builders performing oversize rebuilds.

Products specifications

Fits

GMC G2500 1979-84, K1500 1979-84, C1500 1979-84, K2500 1980, Jimmy 1970-82, C3500 1979-80, C15/C1500 Pickup 1968-74, C2500 1979-84, K1500 Suburban 1979-80, G25/G2500 Van 1967-74, C1500 Suburban 1979-80, K15/K1500 Pickup 1968-74 + 88 more models

Amount Oversized

.040IN

Top Compression Ring Thickness

0.0781

Piston Pin Outside Diameter

0.9273

Piston Head Type

Dish

Piston Material

Aluminium

Oversized

Yes

Second Compression Ring Thickness

0.0781

Oil Ring Thickness

0.1875
