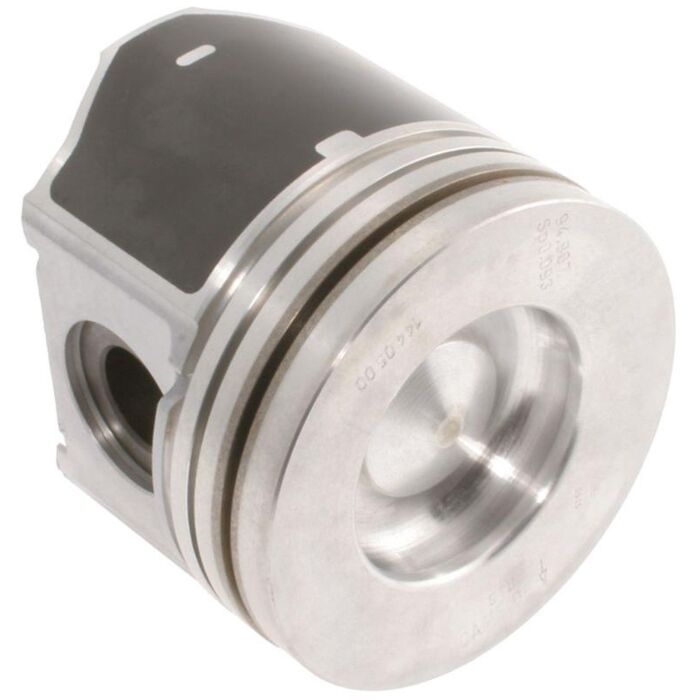

MAHLE 224-3454 Engine Piston Standard Bore Ford 6.0L Powerstroke

(2003-2004 Ford F-250 Super Duty; 2003-2004 Ford F-350 Super Duty; 2003-2004 Ford F-450 Super Duty; 2003-2004 Ford F-550 Super Duty + 2 more models)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3454
10 reviews
Sale Price

$60.37

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3454 is an Original Equipment (OE) quality replacement piston designed specifically for 2003-2004 Ford 6.0L Powerstroke diesel engines. As an OE systems supplier, MAHLE engineers work directly with vehicle manufacturers to design components that meet and define OE standards, ensuring optimal performance and reliability.

Key Features:

  • Standard bore size for 363 CID (6.0L) 32V Turbo V8 International Powerstroke Diesel engines
  • Designed for 2003 model year applications (to S/N 1610, VIN P) with 18:1 compression ratio
  • Compensated ring grooves for proper ring loading and oil control
  • Expansion-controlled design for precise fitting clearances
  • Reduces engine noise, piston and cylinder wear, and improves emissions control
  • Manufactured from high-quality aluminum alloy construction
  • Compatible with Ford F-Series Super Duty, Excursion, and E-Series vehicles

MAHLE pistons are engineered to deliver efficient combustion and power output while maintaining the durability expected from OE components. Each piston is precision-crafted to ensure a perfect fit for the Navistar 6.0L engine platform. This is a piston-only product; rings, pins, and clips are sold separately. Backed by MAHLE's industry-leading 2-year, 200,000-mile warranty.

Products specifications

Fits

2003-2004 Ford F-250 Super Duty; 2003-2004 Ford F-350 Super Duty; 2003-2004 Ford F-450 Super Duty; 2003-2004 Ford F-550 Super Duty; 1993-1996 Ford Probe SE; 1997 Ford Probe GT

Piston Material

Aluminum

Piston Head Type

Flat Top

Compression Distance (in)

2.059

Bore Diameter (mm)

95.00

Bore Diameter (in)

3.736

Compression Distance (mm)

52.29

Measure Skirt Clearance At

0.579in from the bottom of skirt

Piston Casting Number

95L102

Piston Length (mm)

85.8266

Piston Note

Keystone top ring. Coated skirts. For S/N 1611 and up. 2003 only

Piston Pin Diameter (in)

1.339 x 2.571

Piston Pin Diameter (mm)

34.16

Piston Recess Depth (in)

0.646

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Piston Length (in)

3.379

Piston Recess Volume

0.646

Piston Skirt Clearance (mm)

0.94

Coated Skirt

Yes

Piston Material

Aluminium

Top Compression Ring Thickness

2.30

Second Compression Ring Thickness

2.00

Piston Head Type

Bowl

Oil Ring Thickness

3.50

Oversized

No

Piston Pin Outside Diameter

34.01
