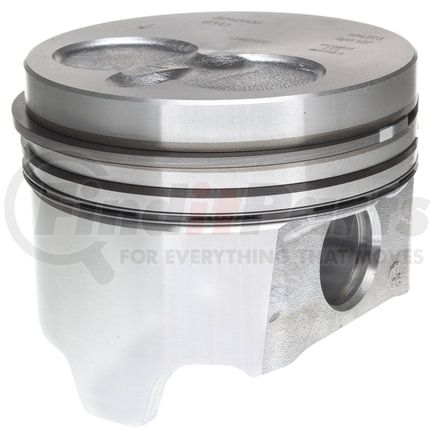

MAHLE 224-2908 OE Replacement Engine Piston Set

(1988-1994 Ford F-250; 1988-1994 Ford F-350; 1988-1994 Ford E-350 Econoline; 1988-1994 Ford E-350 Econoline Club Wagon + 4 more models)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-2908
12 reviews
Sale Price

$88.31

Estimated ship date Saturday, November 28

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-2908 Engine Piston Set delivers original equipment quality and performance for diesel engine rebuilds. This complete set includes 8 pistons, ready for installation with pre-mounted piston rings, wrist pins, and retaining clips for convenient engine assembly.

Key Specifications:

  • Bore diameter: 4.110 inches (104.39mm) standard size
  • Compression height: 1.360 inches (49.28mm)
  • Pin diameter: 1.110 inches (28.19mm)
  • Piston length: 3.460 inches (87.88mm)
  • Ricardo bowl piston head design with 2 valve reliefs
  • Aluminum construction with center pin hole location
  • OE Part/Casting Number: 104L32

Premium OE Features:

  • Compensated ring grooves ensure proper ring loading and oil control
  • Expansion controlled designs for small fitting clearances to reduce engine noise, wear, and emissions
  • Lightweight design reduces reciprocating mass without sacrificing reliability
  • Pre-installed piston rings with pins and clips included for convenient installation

MAHLE is one of the largest OE piston manufacturers in the world, delivering precision-engineered components trusted by professional engine builders. This piston set meets original equipment specifications for reliable performance and long service life in demanding diesel applications.

Products specifications

Fits

1988-1994 Ford F-250; 1988-1994 Ford F-350; 1988-1994 Ford E-350 Econoline; 1988-1994 Ford E-350 Econoline Club Wagon; 1988-1994 Ford F Super Duty; 1988-1994 Ford F59; 1988-1991 Ford E-250 Econoline Club Wagon; 1999-2001 Hyundai Sonata

Piston Material

Aluminum

Compression Distance (in)

1.360

Compression Ratio

Varies

Bore Diameter (mm)

104.39

Bore Diameter (in)

4.110

Compression Distance (mm)

49.53

Measure Skirt Clearance At

1.000in from the bottom of skirt

Piston Casting Number

104L32

Piston Head Type

Ricardo Bowl

Piston Length (mm)

87.884

Piston Pin Diameter (in)

1.110

Piston Pin Diameter (mm)

28.194

Piston Pin Hole Location

Center

Piston Skirt Clearance (in)

.055

Piston Valve Reliefs Quantity

2

With Piston Rings

No

Compression Height (in)

Reduced .010

Piston Length (in)

3.46

Piston Skirt Clearance (mm)

0.14

Second Compression Ring Thickness

2.00

Piston Pin Outside Diameter

28.204

Oil Ring Thickness

3.50

Top Compression Ring Thickness

3.00

Piston Material

Aluminium

Oversized

No
