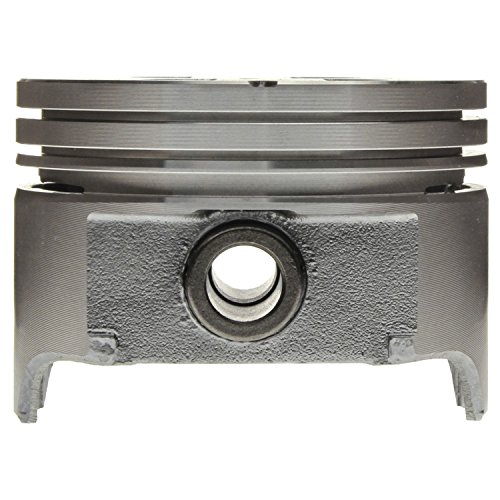

MAHLE 224-2108 Original OE Replacement Engine Piston Set

The MAHLE 224-2108 is a premium OE replacement engine piston engineered for the classic Ford small-block V8 platform. Manufactured to the same exacting tolerances as the original factory components, this piston set is built for reliable, long-term performance in street and daily-driven applications.

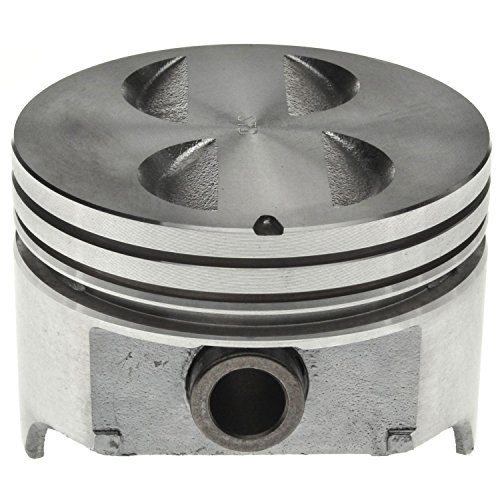

This piston features a flat-top design with four valve reliefs and a 4.000-inch (101.60mm) standard bore diameter, delivering an accurate OE-spec fit. Piston rings are not included and must be sourced separately.

Key Features:

• Flat-top with four valve reliefs — matches original OE piston geometry for proper compression and valve clearance
• 4.000 in. (101.60 mm) standard bore — precision-machined to tight tolerances for optimal cylinder wall fit
• Compensated ring grooves — ensure proper ring loading and effective oil control
• Expansion-controlled design — allows for minimal fitting clearances, reducing engine noise, wear, and emissions
• MAHLE GRAFAL® anti-friction skirt coating — graphite-impregnated resin coating that reduces drag, scuffing, friction, and cylinder bore wear
• Lightweight aluminum construction — reduces reciprocating mass for smoother engine operation and improved throttle response
• Stock engine stroke type — engineered for use with factory stroke specifications

MAHLE is one of the world's largest OE piston manufacturers, and the MAHLE Original line reflects that heritage. Every piston in this line is precision-engineered using international development standards to meet or exceed factory performance specifications, making the 224-2108 a trusted choice for engine rebuilders seeking OE quality.
