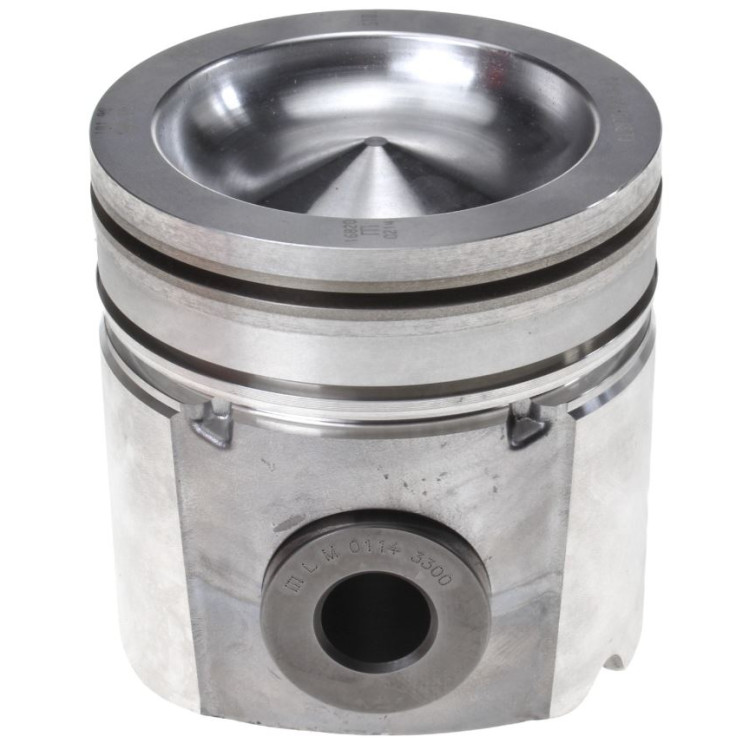

MAHLE 224-3673 OE Replacement Engine Piston Standard Bore

(2005-2008 Dodge Ram 2500; 2005-2008 Dodge Ram 3500)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3673
22 reviews
Sale Price

$442.29

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3673 Engine Piston is an OE-quality replacement piston designed for 2004.5-2009 Dodge Ram 2500/3500 trucks equipped with the 5.9L Cummins diesel engine (VIN Code C). This standard bore piston delivers the precise fit and durability needed for high-output Cummins applications.

Key Specifications:

  • Standard bore diameter: 4.002 inches (101.66mm)
  • Compression height: 2.818 inches
  • Piston style: Dish with no valve reliefs
  • Material: Cast aluminum construction
  • Wrist pin diameter: 1.575 inches (press-fit or floating)
  • Compatible stroke: 4.720 inches
  • Rod length: 7.559 inches
  • Piston ring thickness: 3.00mm x 2.38mm x 4.00mm
  • OE cross-reference: Cummins 3970192, 4089669

Premium MAHLE Engineering:

  • Compensated ring grooves ensure proper ring loading and superior oil control
  • Expansion-controlled design for tight fitting clearances
  • Reduces engine noise, wear, and emissions
  • Pin offset design minimizes piston slap
  • Lightweight construction reduces bearing loads for improved response

Important Notes: This piston does NOT include rings—rings must be purchased separately. Wrist pin and retainers are included. MAHLE pistons are sold individually but must be ordered in complete sets of 6 for proper engine balance. Priced per piece.

MAHLE is one of the world's largest OE piston manufacturers, supplying original equipment to major automotive manufacturers. These replacement pistons meet or exceed original specifications and provide the same quality and performance as factory-installed components.

Products specifications

Fits

2005-2008 Dodge Ram 2500; 2005-2008 Dodge Ram 3500

Piston Material

Aluminum

Compression Distance (in)

2.811

Compression Ratio

17.1:1

Bore Diameter (mm)

102.00

Bore Diameter (in)

4.016

Measure Skirt Clearance At

0.591in from the bottom of skirt

Piston Pin Diameter (in)

1.5748

Piston Recess Depth (in)

.492

Piston Recess Diameter (in)

3.001

Piston Length (in)

4.141
