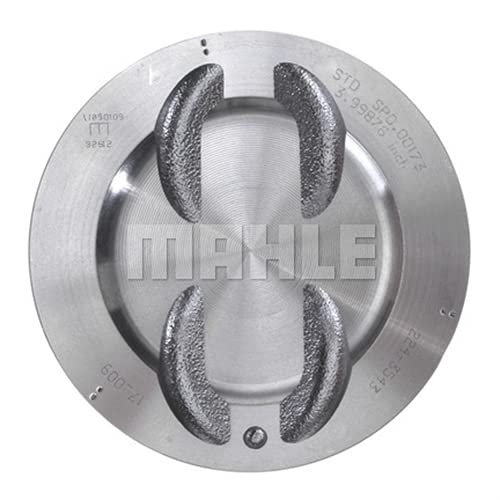

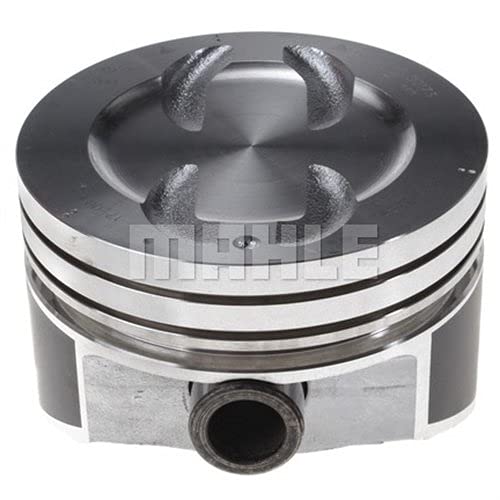

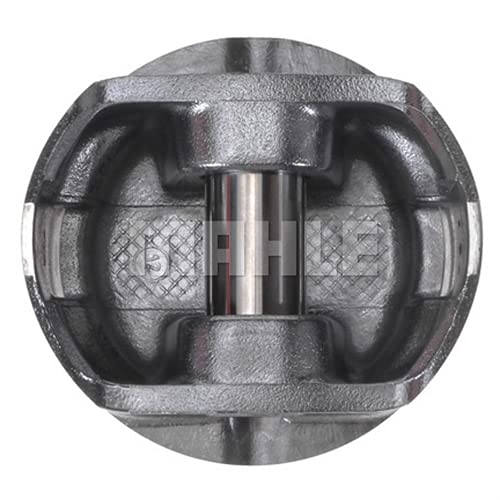

MAHLE 224-3543 Engine Piston Set

Manufacturer

MAHLE

<p><img src="https://media.boatplicity.com/masterimages/images/banner/mahle.jpg" alt="MAHLE" width="100%" /></p>

Picture for manufacturer MAHLE B33421 Engine Oil Cooler Gasket

Part Number

224-3543
12 reviews
04/30/2034 1:21 PM
Sale Price

$179.31

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Select Your Vehicle:

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

MAHLE 224-3543 Engine Piston Set

MAHLE 224-3543

Engine Piston Set

MAHLE® pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.

Products specifications

Piston Material

Hypereutectic

Bore Diameter (mm)

101.60

Piston Head Type

Recessed Head

Piston Pin Hole Location

Offset

Piston Pin Retention Type

Fixed

Piston Valve Reliefs Quantity

4

Compression Distance (in)

1.55

Compression Distance (mm)

39.37

Measure Skirt Clearance At

0.709in from the bottom of skirt

Piston Casting Number

101L63

Piston Note

Coated skirts. Replace in Full sets only

Piston Recess Depth (in)

0.100

Piston Recess Diameter (in)

2.767

With Piston Rings

No

Amount Oversized

Standard

Coated Skirt

Yes

Piston Item Grade

OE Replacement

Piston Length (in)

2.605

Piston Skirt Clearance (in)

0.0017

Piston Pin Outside Diameter

0.9279

Second Compression Ring Thickness

0.078

Oversized

No

Top Compression Ring Thickness

0.078

Oil Ring Thickness

0.1875

Piston Head Type

Dish
