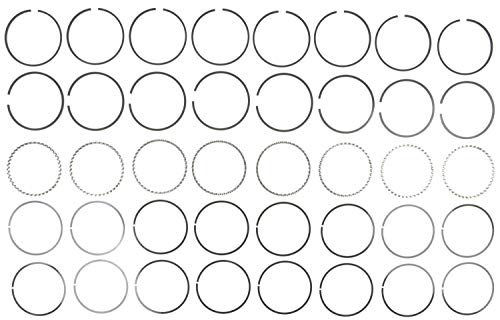

MAHLE 41137CP.060 Plasma-Moly Piston Ring Set 3.796 in. Bore +0.060 Oversize V8

(Chevrolet Silverado 1500 2004-06, Camaro 1976-92, Corvette 1980, Impala 1977-85, Malibu 1976-83, C1500 1988-94, Blazer 1987, K1500 1988-94 + 86 more models)

Manufacturer

Part Number

41137CP.060
Sale Price

$91.44

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 41137CP.060 is a premium plasma-moly piston ring set designed for V8 engines with a 3.796-inch bore (+0.060" oversize). Engineered to OE form, fit, and function standards, this set delivers superior compression sealing, reduced oil consumption, and extended engine life — making it ideal for engine rebuilds and re-ring applications.

Key Features:

  • SAE 9254 High Alloy Steel Base Material — provides higher tensile and yield strength, extended fatigue resistance, and increased material hardness for long-lasting durability
  • Barrel-Faced Top Compression Ring — CNC-controlled gap chamfer optimizes compression and reduces blow-by
  • Reverse Twist Intermediate Ring — taper face design with taper race machining enhances groove side sealing and cylinder wall contact
  • CP-20 Oil Ring Assembly — exclusive 20-degree ear angle provides the best possible side seal in the piston oil ring groove; chemically polished expander promotes enhanced oil drain back
  • 3-Piece Oil Ring Design — stainless steel expander between two chrome-faced steel rails delivers a high degree of conformability within the cylinder bore
  • Pre-Lapped Finish — rings seat immediately upon installation, virtually eliminating break-in time
  • Ring Thickness: 5/64 in. top, 5/64 in. second, 3/16 in. oil
  • Sold as a complete set (8 cylinders)

MAHLE is one of the largest OE piston ring manufacturers in the world, with ring materials, coatings, and tension levels optimized for reduced friction and extended service life in each specific application. The 41137CP.060 is the +0.060" oversize version of the 41137CP ring set, intended for bores that have been machined to 3.796 inches.

Products specifications

Fits

Chevrolet Silverado 1500 2004-06, Camaro 1976-92, Corvette 1980, Impala 1977-85, Malibu 1976-83, C1500 1988-94, Blazer 1987, K1500 1988-94, Caprice 1977-96, C10 1976-86, El Camino 1976-87, Monte Carlo 1976-88, K2500 1988-94 + 81 more models

Piston Ring Size

.060IN

Piston Ring Type

Premium
