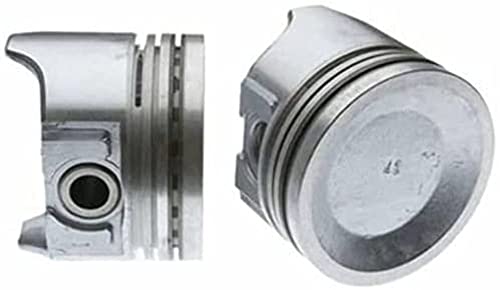

MAHLE 224-3417 Engine Piston Set with Rings Pin Clips

(Ford F-150 1997-98, Mustang 1999-2000, Expedition 1997-98, F-250 1997-98, Crown Victoria 1992-98, Thunderbird 1994-97, E-150 Econoline 1997-98 + 6 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3417
20 reviews
Sale Price

$21.01

Estimated ship date Monday, November 23

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3417 Engine Piston Set delivers genuine OE-quality performance for engine rebuilds and replacements. MAHLE is one of the world's largest original equipment piston manufacturers, and this set is engineered to the same exacting standards found in factory assemblies.

Key Features:

  • Compensated Ring Grooves: Engineered to ensure proper ring loading and precise oil control throughout the piston's service life
  • Expansion-Controlled Design: Tight fitting clearances minimize piston slap, reducing engine noise, wear, and emissions while improving oil control
  • Ready-to-Install Kit: Includes mounted piston rings, wrist pin, and retaining clips — everything the engine builder needs in one complete set
  • OE-Equivalent Quality: Manufactured to the same specifications as original equipment pistons for reliable, long-lasting performance
  • Reduced Emissions: Precision design helps maintain proper combustion sealing, supporting lower exhaust emissions and improved efficiency

Whether you're performing a full engine rebuild or replacing worn pistons, the MAHLE 224-3417 provides a direct-fit, factory-quality solution backed by MAHLE's decades of OE manufacturing expertise.

Products specifications

Fits

Ford F-150 1997-98, Mustang 1999-2000, Expedition 1997-98, F-250 1997-98, Crown Victoria 1992-98, Thunderbird 1994-97, E-150 Econoline 1997-98, E-250 Econoline 1997, E-150 Econoline Club Wagon 1997-98; Lincoln Town Car 1991-98 + 3 more models

Piston Material

Aluminum

Piston Head Type

Recessed Head

Piston Pin Hole Location

Offset

Piston Pin Retention Type

Fixed

Compression Distance (in)

1.246

Bore Diameter (mm)

90.215

Bore Diameter (in)

3.551

Compression Distance (mm)

31.65

Measure Skirt Clearance At

.354 from the bottom

Piston Length (mm)

52.446

Piston Note

Coated Skirt. Shallow Top Groove .131in

Piston Pin Diameter (in)

0.866

Piston Pin Diameter (mm)

21.9964

Piston Recess Depth (in)

0.162

Piston Recess Diameter (in)

2.642

With Piston Rings

No

Amount Oversized

Standard

Piston Item Grade

OE Replacement

Piston Length (in)

2.048

Piston Skirt Clearance (mm)

0.36

Piston Skirt Clearance (in)

0.0014

Top Compression Ring Thickness

1.50

Piston Pin Outside Diameter

22.00

Piston Material

Aluminium

Piston Head Type

Dish

Second Compression Ring Thickness

1.50

Oversized

No

Oil Ring Thickness

3.00
