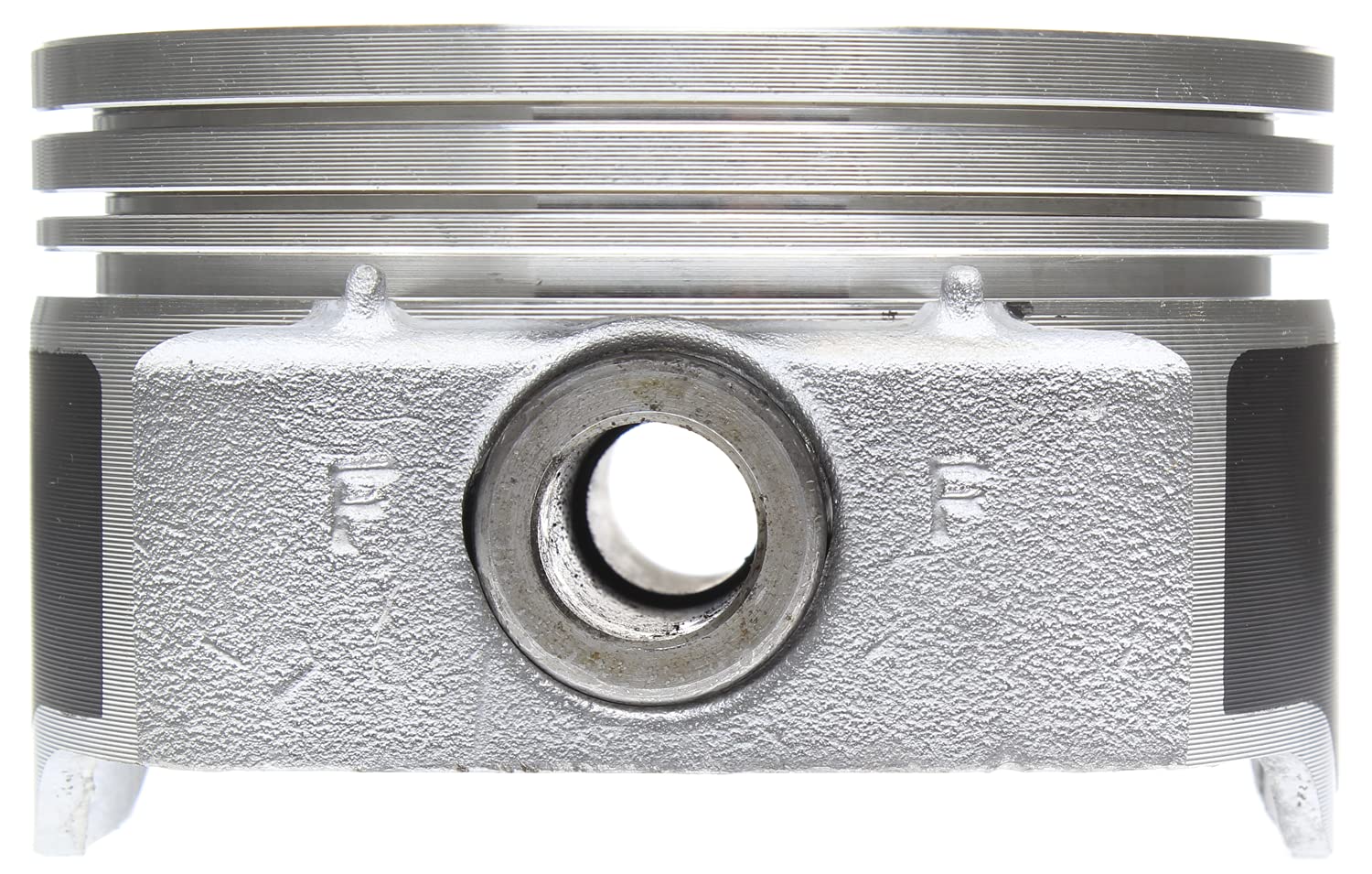

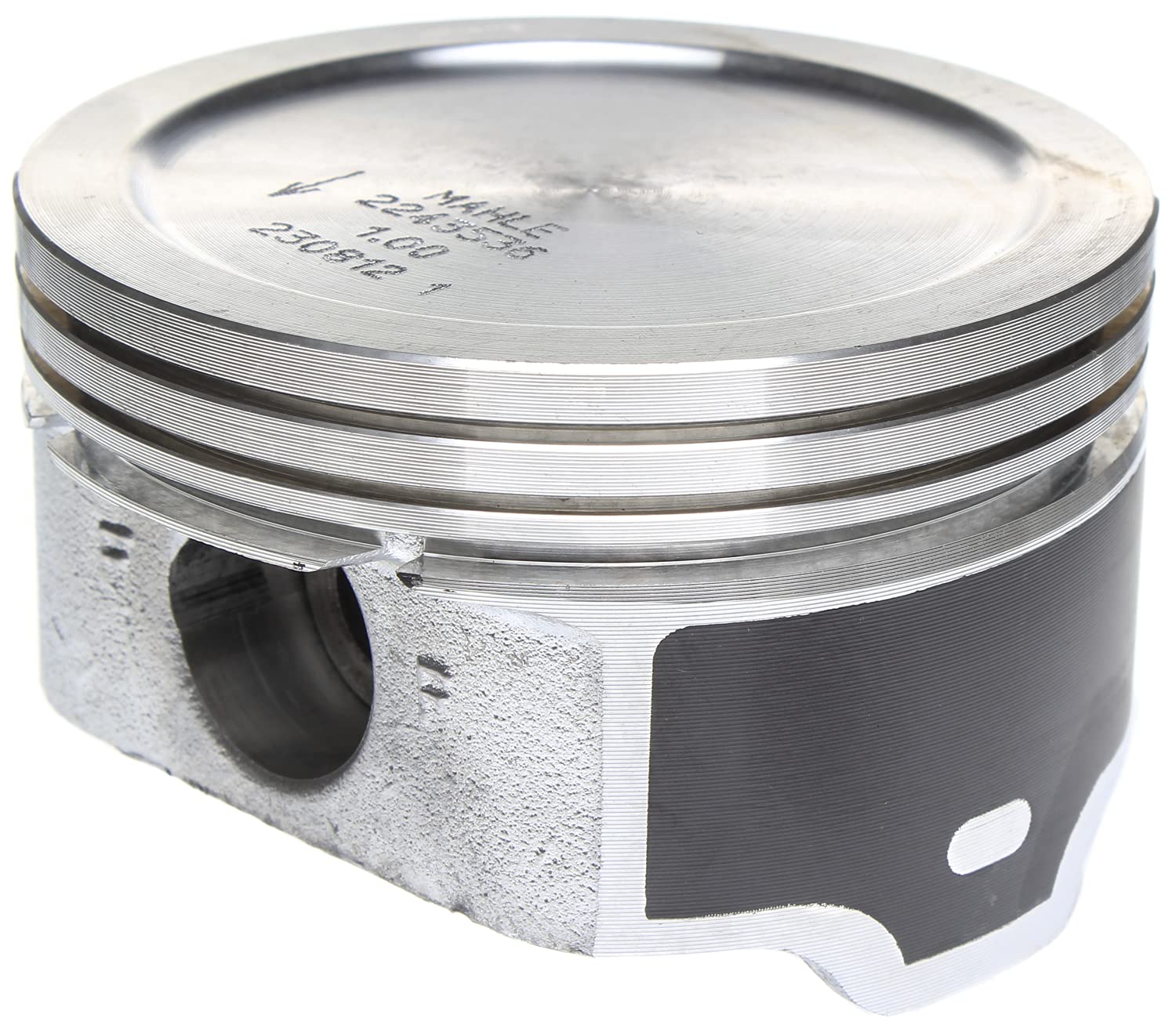

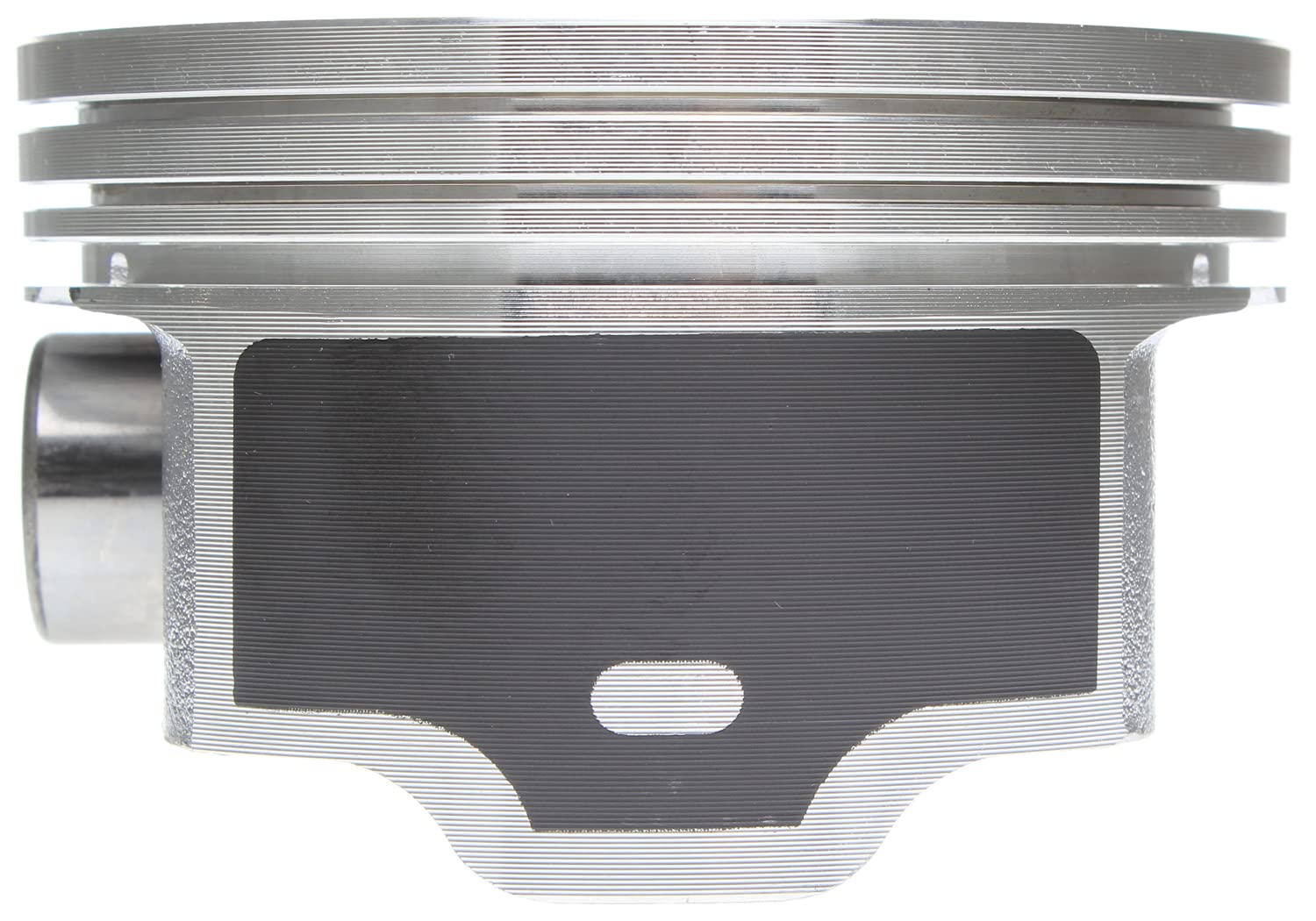

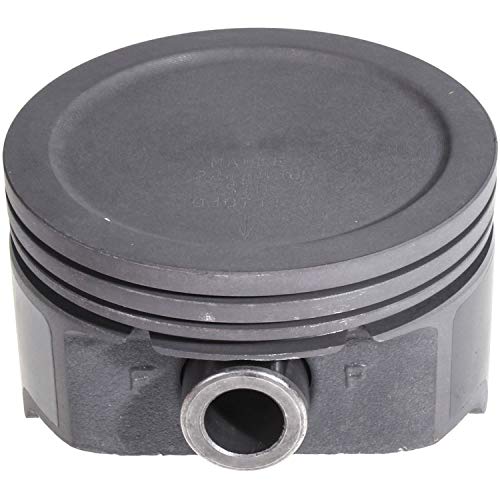

MAHLE 224-3536 OE Replacement Engine Piston Set

(Chevrolet Silverado 1500 1999-2004, Suburban 1500 2000-04, Tahoe 2000-04, Avalanche 1500 2002-04, Express 2500 2003-04 + 16 more models)

Part of: MAHLE Engine Piston Kit

Other options in this family: MAHLE 09301807 MAHLE 0017602 MAHLE 09301804 MAHLE 503 59 92 MAHLE 996-103-051-19

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3536
12 reviews
Sale Price

$37.07

Estimated ship date Saturday, November 28

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3536 is an OE-quality replacement engine piston set engineered to meet or exceed original factory specifications. MAHLE is one of the world's leading OE piston manufacturers, and this set delivers the same precision and durability found in factory-installed components.

Each piston features a dish-style crown with no valve reliefs, cast aluminum construction, a bore diameter of 3.780 in. (96.012 mm), and is designed for a 3.622 in. stock stroke application. These pistons are a direct-fit solution for GM 5.3L (325) V8 engines.

Key Features:

  • OE Form, Fit & Function — Precision-machined to tight tolerances matching original factory specifications
  • Compensated Ring Grooves — Ensure proper ring loading and optimal oil control throughout the piston's service life
  • Expansion-Controlled Design — Tight fitting clearances reduce engine noise, wear, and emissions while improving oil control
  • Cast Aluminum Construction — Lightweight design reduces reciprocating mass, lowering bearing loads and improving engine response
  • GRAFAL Anti-Friction Skirt Coating — MAHLE's proprietary graphite-impregnated resin coating minimizes drag, scuffing, friction, and cylinder bore wear
  • Dish Piston Style — No valve reliefs; designed for stock stroke applications
  • Bore: 3.780 in. (96.012 mm) | Stroke: 3.622 in. (stock)

MAHLE is the world's leading manufacturer of more than 100,000 OE and aftermarket parts. When rebuilding your engine, trust MAHLE's decades of international engineering expertise to restore power, efficiency, and long-term reliability. Note: Piston rings are not included with this set.

Products specifications

Fits

Chevrolet Silverado 1500 1999-2004, Suburban 1500 2000-04, Tahoe 2000-04, Avalanche 1500 2002-04, Express 2500 2003-04, Silverado 2500 1999-2000, Express 1500 2003-04, SSR 2003-04, Trailblazer EXT 2003-04; GMC Yukon XL 1500 2000-04 + 11 more models

Piston Material

Aluminum

Piston Head Type

Recessed Head

Piston Pin Hole Location

Offset

Piston Pin Retention Type

Fixed

Compression Distance (in)

1.313

Bore Diameter (mm)

96.01

Bore Diameter (in)

3.780

Compression Distance (mm)

33.35

Measure Skirt Clearance At

0.551in from the bottom of skirt

Piston Casting Number

96L70

Piston Length (mm)

64.45

Piston Note

0.25mm Reduced CH. Coated skirts. Shallow Ring Grooves

Piston Pin Diameter (mm)

24

Piston Recess Depth (in)

0.069

Piston Recess Diameter (in)

2.992

Compression Height (in)

Reduced .010in

Piston Length (in)

3.537

Piston Recess Volume

7.88

Piston Skirt Clearance (in)

0.0008

Coated Skirt

Yes

Oil Ring Thickness

3.00

Top Compression Ring Thickness

1.50

Second Compression Ring Thickness

1.50

Oversized

No

Piston Pin Outside Diameter

24.00

Piston Head Type

Dish

Piston Material

Aluminium
