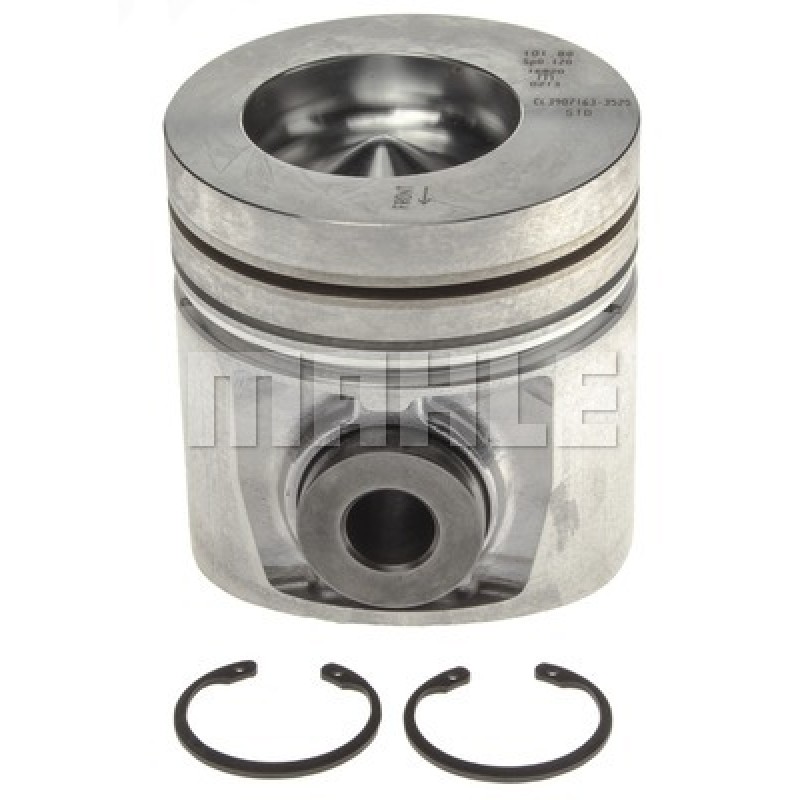

MAHLE 224-3525.040 Clevite OE Replacement Piston +.040" Oversize Cummins 5.9L Diesel

(1991 Dodge W250; 1991 Dodge D250; 1991 Dodge D350 Base)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3525.040
12 reviews
Sale Price

$126.38

Estimated ship date Friday, November 27

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE Clevite 224-3525.040 is an OE-grade replacement piston engineered for Cummins 5.9L turbocharged diesel engines. Machined to exacting factory tolerances, this +.040" (1.00mm) oversize piston is designed for use during engine rebuilds where cylinder bores have been machined oversize to restore proper clearances.

Key Features:

  • Material: High-quality aluminum construction (Casting No. 102L37)
  • Oversize: +.040" (1.00mm) over standard bore — oversize bore diameter of approximately 4.056"
  • Standard Bore Diameter: 4.016" (102.00mm)

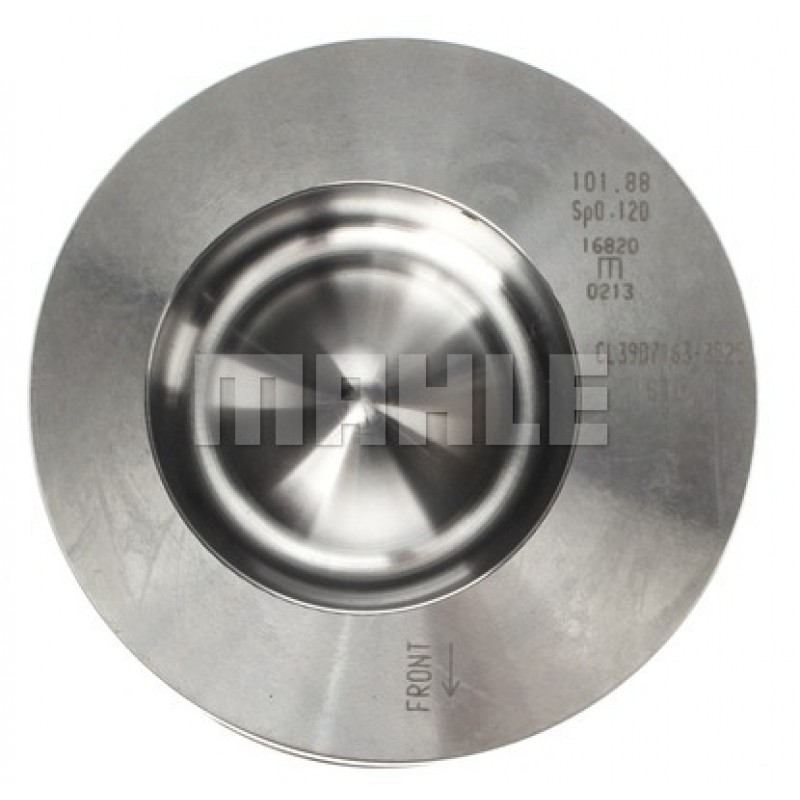

  • Head Type: Reentrant bowl combustion chamber design
  • Recess Volume: 43.2cc bowl volume
  • Recess Depth: 0.697"
  • Recess Diameter: 2.328"
  • Compression Distance: 2.817" (71.56mm)
  • Piston Pin Diameter: 1.575" (40.00mm)

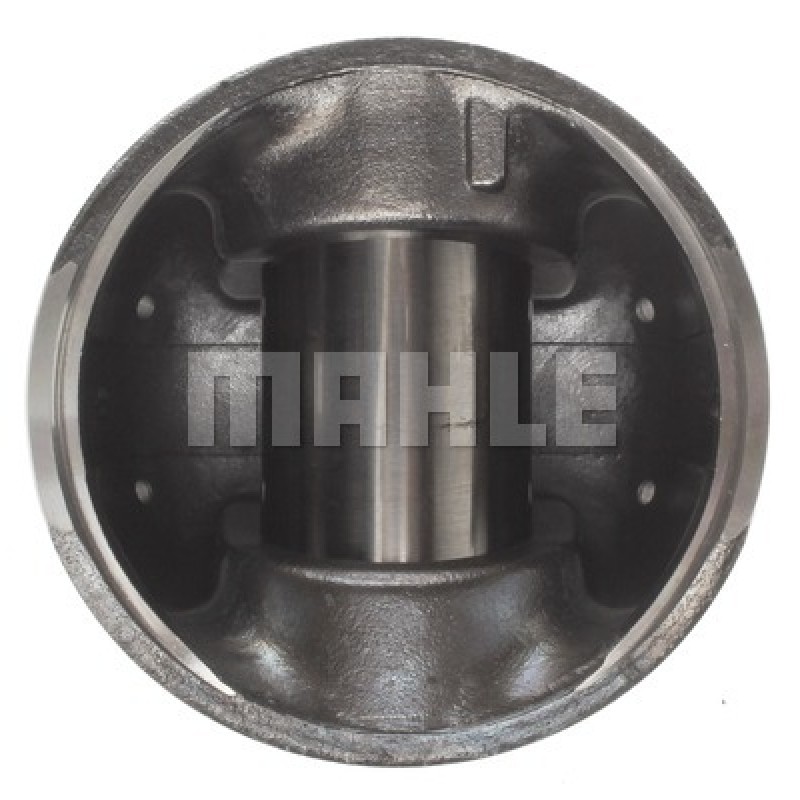

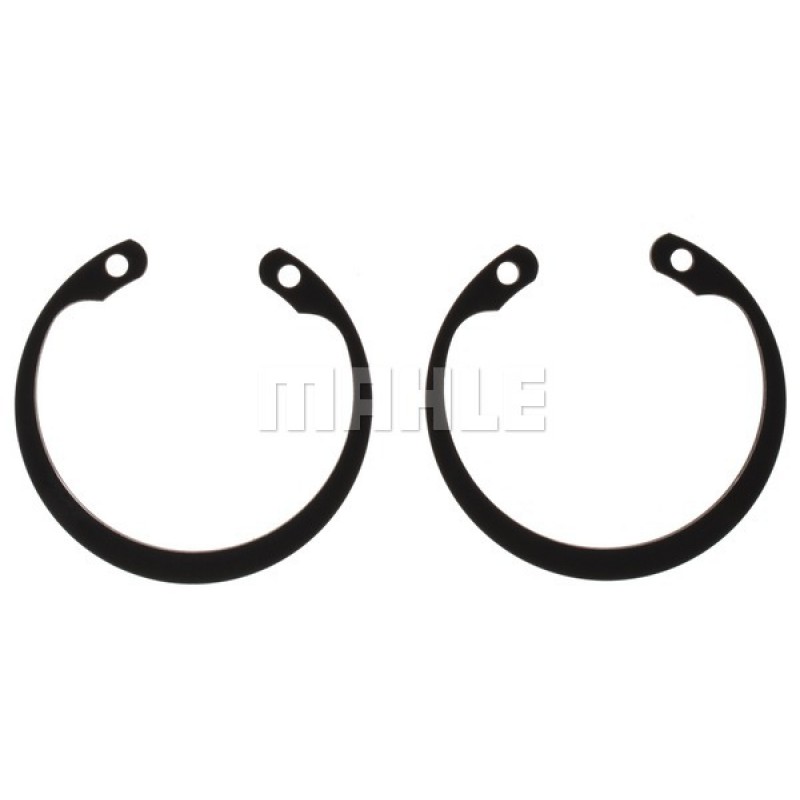

  • Pin Retention Type: Floating pin with offset pin hole location
  • Piston Skirt Clearance: 0.0047" (measured 0.472" from bottom of skirt)
  • Compression Ring Groove 1: 3.00mm (Keystone top ring)
  • Compression Ring Groove 2: 2.40mm
  • Oil Ring Groove Width: 4.00mm
  • Related Part Number: S41518 | OE Casting No. 102O18

MAHLE pistons feature compensated ring grooves for proper ring loading and oil control, and an expansion-controlled design that allows for tight fitting clearances — reducing engine noise, piston and cylinder wear, and improving oil control over the life of the engine. Sold individually; rings sold separately unless otherwise noted.

Products specifications

Fits

1991 Dodge W250; 1991 Dodge D250; 1991 Dodge D350 Base

With Piston Rings

No

Amount Oversized

.040IN

Piston Item Grade

OE Replacement
