MAHLE 224-3409WR.030 Engine Piston Set .030 Oversize Reduced Compression

(Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, F-250 1994-97, Excursion 2000-03, F-350 1994-97, E-350 Super Duty 1999-2003 + 20 more models)

Manufacturer

Part Number

224-3409WR.030
Black Friday Price

$104.83

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

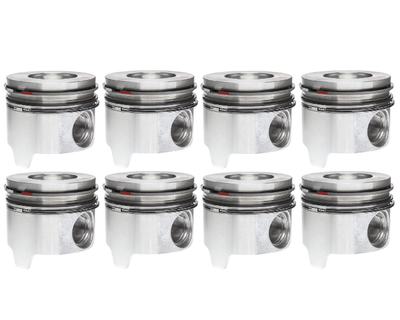

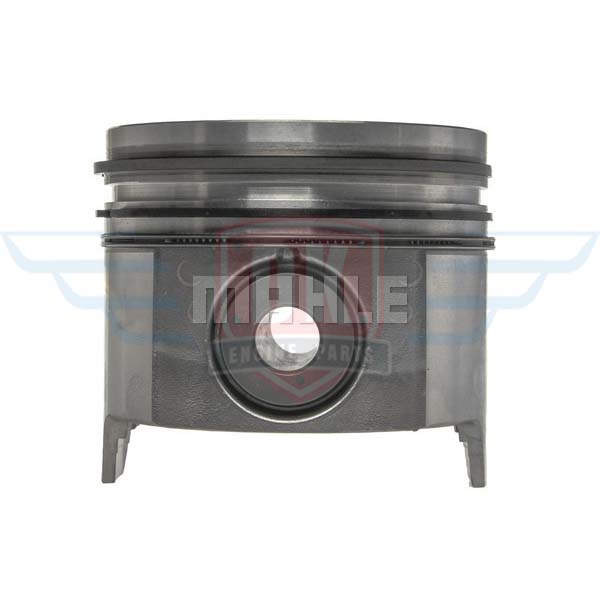

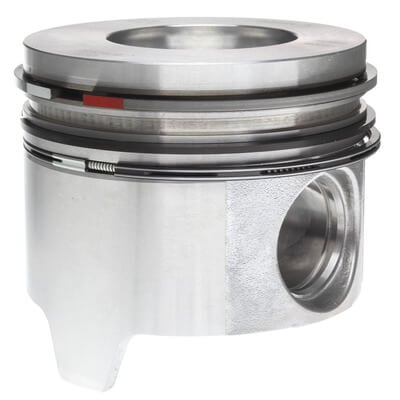

The MAHLE 224-3409WR.030 is a high-quality piston set designed for the 1994–2003 Ford 7.3L Powerstroke diesel engines. This set includes eight pistons, each with rings, and is engineered to meet or exceed OEM specifications. These pistons feature an oversized bore of 4.140 inches, making this set ideal for .030" overbore engine rebuild applications.

Key Features:

  • Reduced compression height of 0.010 inches, perfect for addressing deck height variations and achieving desired compression ratios
  • Constructed from high-quality aluminum for lightweight strength and long-lasting reliability
  • Top compression ring groove of 3.00 mm and second ring groove of 2.00 mm for effective sealing and minimizing blow-by
  • Oil ring groove width of 3.50 mm for enhanced oil control
  • Piston pin size of 1.308" O.D.
  • Non-coated skirt design for standard applications
  • Compensated ring grooves to assure proper ring loading and oil control
  • Expansion controlled design for reduced engine noise, wear, and emissions

This complete set includes all necessary components for a full engine rebuild, with pistons arriving ready for installation with mounted piston rings, pins, and clips included. MAHLE is one of the largest OE piston manufacturers in the world, trusted by professional engine builders and automotive technicians for precision-engineered components that deliver reliable performance.

Products specifications

Fits

Ford F-250 Super Duty 1999-2003, F-350 Super Duty 1999-2003, F-250 1994-97, Excursion 2000-03, F-350 1994-97, E-350 Super Duty 1999-2003, F-450 Super Duty 1999-2003, F-550 Super Duty 1999-2003, E-350 Econoline 1995-2002 + 17 more models

With Piston Rings

Yes

Amount Oversized

.030IN

Piston Item Grade

OE Replacement

Piston Head Type

Bowl

Piston Pin Outside Diameter

33.233

Top Compression Ring Thickness

3.00

Oil Ring Thickness

3.40

Piston Material

Aluminium

Oversized

Yes

Second Compression Ring Thickness

2.00
