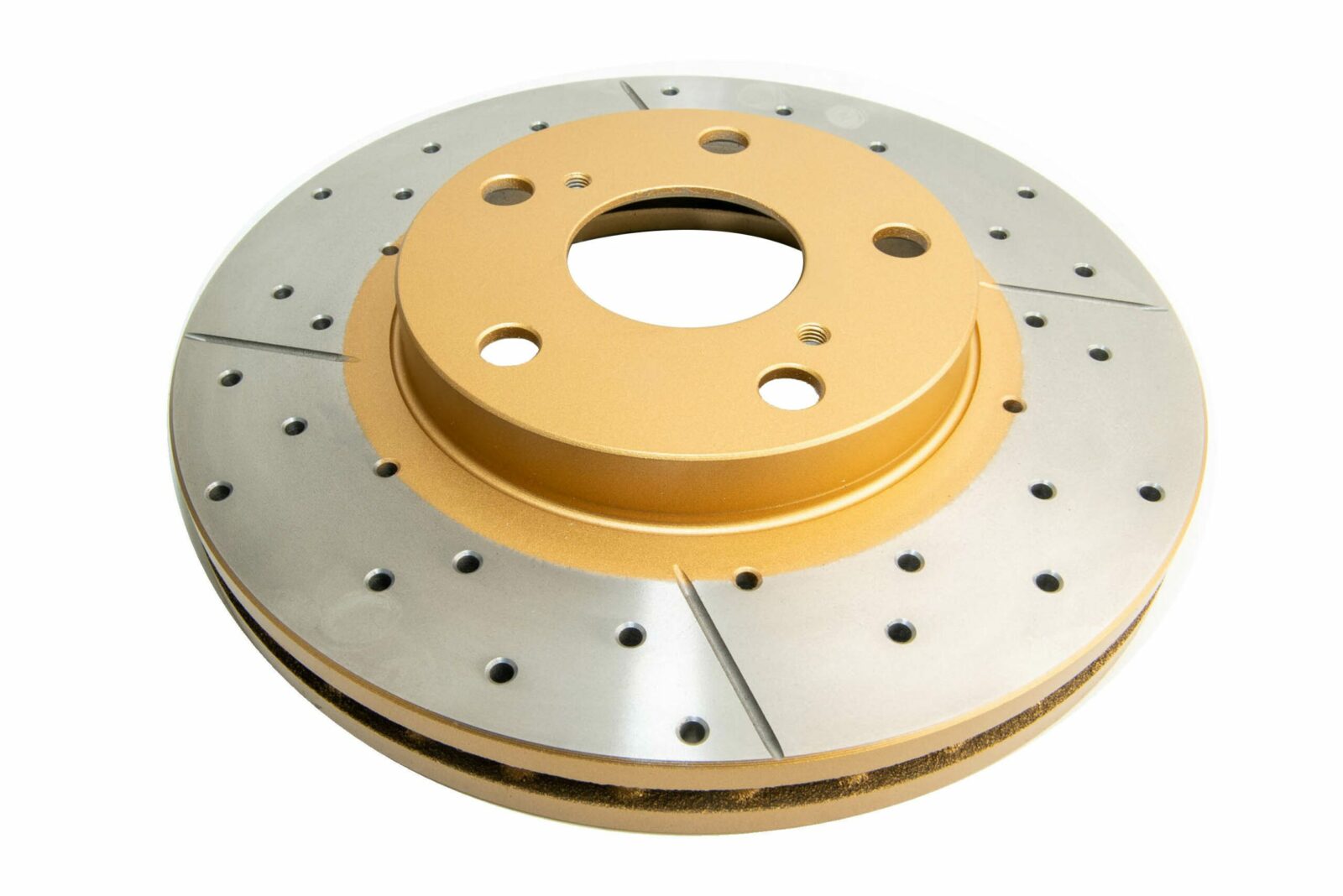

The DBA DBA735X Street Series X Gold is a premium cross-drilled and slotted front brake rotor engineered by Disc Brakes Australia (DBA) for daily drivers, light commercial vehicles, and SUVs seeking a direct OE-level replacement with enhanced performance aesthetics. With over 40 years of braking expertise, DBA manufactures this rotor above OEM standards using proven materials and precision processes.
The X Gold designation features DBA's non-directional cross-drilled and slotted design, which increases the number of exit points on the rotor surface. This allows brake pad friction dust and gases to escape through both the cross-drilled holes and slots simultaneously, delivering more consistent and responsive braking performance. The non-directional pattern eliminates the need for separate left- and right-hand rotors, simplifying fitment and inventory.
At the core of the DBA735X is DBA's proprietary XG-150 high-carbon cast iron alloy, selected for its high strength and excellent thermal stability, providing outstanding resistance to heat-induced warping. The internal vane structure uses DBA's patented Kangaroo Paw ventilation system, which maximizes passive cooling through a network of machined passages while retaining material mass for rigidity and heat capacity.
The friction surfaces are finished using Cubic Boron Nitride (CBN) machine tooling, producing an exceptionally tight surface tolerance that minimizes disc thickness variation and reduces the risk of pad knock and premature wear. All non-friction surfaces receive a gold high-temperature paint coating that protects against corrosion and gives the rotor its distinctive, show-ready appearance.
Key Features:
- Non-directional X Gold cross-drilled and slotted design — no left/right distinction required
- 275mm rotor diameter, front axle application
- Proprietary XG-150 high-carbon cast iron alloy for superior thermal stability and warp resistance
- Patented Kangaroo Paw internal vane ventilation for up to 20% better heat dissipation
- CBN (Cubic Boron Nitride) machine finish for minimal disc thickness variation
- Gold high-temperature coating on all non-friction surfaces for corrosion protection and premium appearance
- Benchmarked for use with DBA Street Series or DBA Street Performance brake pads
- Direct OE replacement — built above OEM manufacturing standards
- Ideal for daily drivers, light commercial vehicles, SUVs, and show vehicles
The DBA DBA735X is sold as a single rotor. For best results, DBA recommends pairing with DBA Street Series (blue) or Street Performance (green) brake pads. For more intensive braking applications, DBA's T2 slotted series is recommended.
