Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5

Part of: Weld Racing Wheels Prostar Aluminum Wheel

Other options in this family: Weld Racing Wheels 96-54272 Weld Racing Wheels 96-57278 Weld Racing Wheels 96-512212 Weld Racing Wheels 96-54200 Weld Racing Wheels 96-514208

Manufacturer

Picture for manufacturer Weld Racing Wheels

Part Number

96-514206
9 reviews
Sale Price

$566.29

4 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Show details for Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5

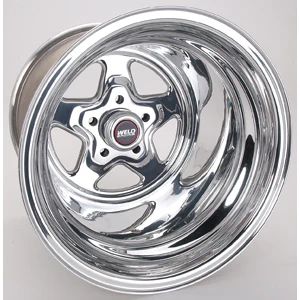

Picture of Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5
Picture of Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5

Wheels and Tires sold separately

Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5 — image 1
Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5 — image 2
Weld Racing Wheels 96-514206 Pro Star Polished Aluminum Wheel 15x14 5x4.5 — image 3
Product Details

The Pro Star is one of the longest produced five-star style drag racing wheels for a reason—its storied past makes it one of the most iconic wheels on the marketplace. These wheels used to be the norm in NHRA Pro Stock and eventually made their way down to the streets on muscle cars and late-model vehicles.

Key Features:

  • 15 inch diameter x 14 inch width
  • 5 x 4.5 inch (5 x 114.3mm) bolt pattern
  • 3.5 inch backspacing (-102mm offset)
  • Polished aluminum finish on center and shell
  • Weight: 17.5 lbs
  • Two-piece cold forged and welded construction for lightweight strength that holds up to the rigors of daily driving
  • Precision-crafted from cold-forged aluminum for superior strength and up to 40 percent lighter than comparable race wheels
  • Guaranteed tubeless with aluminum push-through center cap included
  • Rated for street/strip use up to 8 seconds, 160 MPH drag cars

This Sport Forged ProStar 96-Series wheel combines classic five-spoke styling with modern forged aluminum construction. Whether you're building a vintage muscle car or a modern street/strip machine, the Pro Star delivers the authentic racing look with proven performance durability. Made in the USA by Weld Racing, a company that has dominated professional drag racing and oval racing since 1967.

Products specifications

Application Notes

For Drag Race use only.

Backspacing (in)

3.500 in.

Beadlock Functional

No

Beadlock Included

No

Center Bore Diameter (in)

3.180 in.

Center Cap Included

Yes

Hub Centric

No

Lug Nut Seat Style

Shank

Lug Nut Shank Diameter (in)

0.679-0.687 in.

Lug Nut Shank Length (in)

1.300-1.380 in.

Manufacturers Wheel Series

Weld Racing Prostar Series

Notes

The factory warranty will become void if used on any type of sports racing, road race, solo, 4WD, off-road, towing, vehicles exceeding 4,800 GVW, or the use of 31 in. or taller tires.

Offset

-102.00mm

Offset (mm)

-102.00mm

Primary Wheel Color

Polished

Quantity

Sold individually.

Valve Stems Included

No

Washer Outside Diameter (in)

1.250 in.

Wheel Bolt Pattern

5 x 4 1/2 in.

Wheel Construction

2-piece

Wheel Diameter

15 in.

Wheel Finish

Polished

Wheel Material

Aluminum

Wheel Width (in)

14.00 in.
