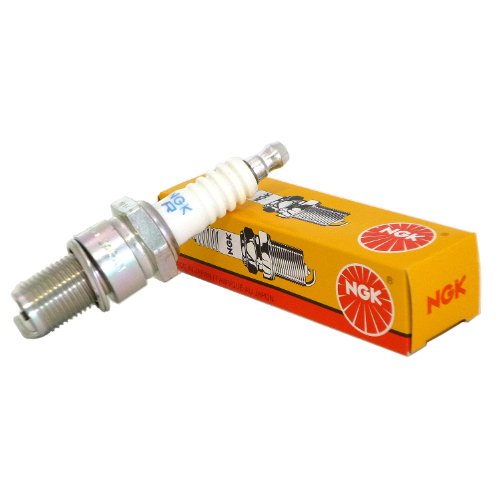

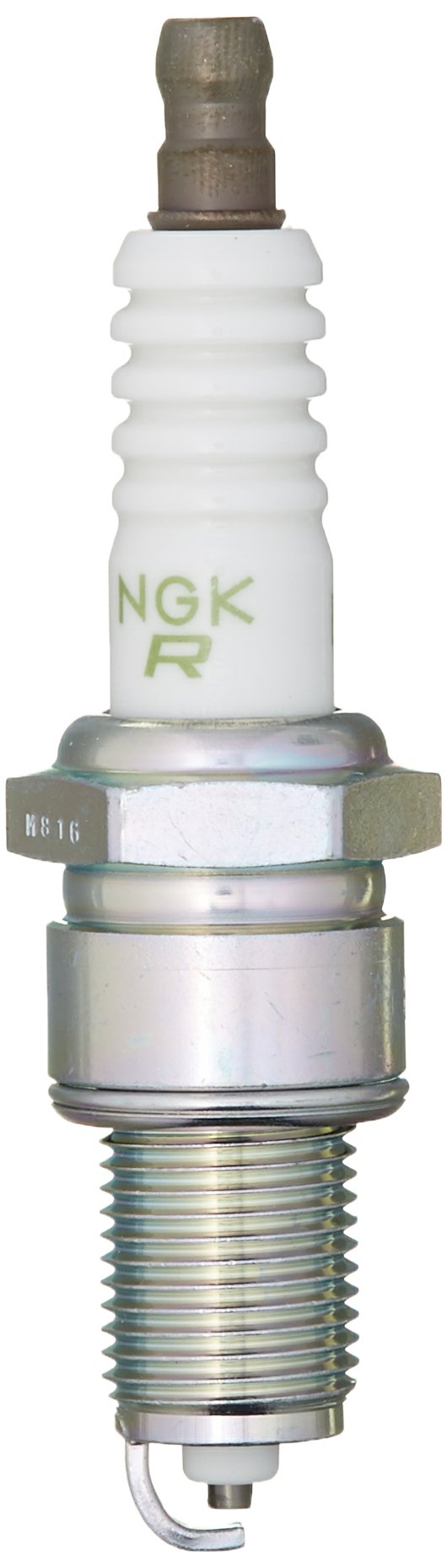

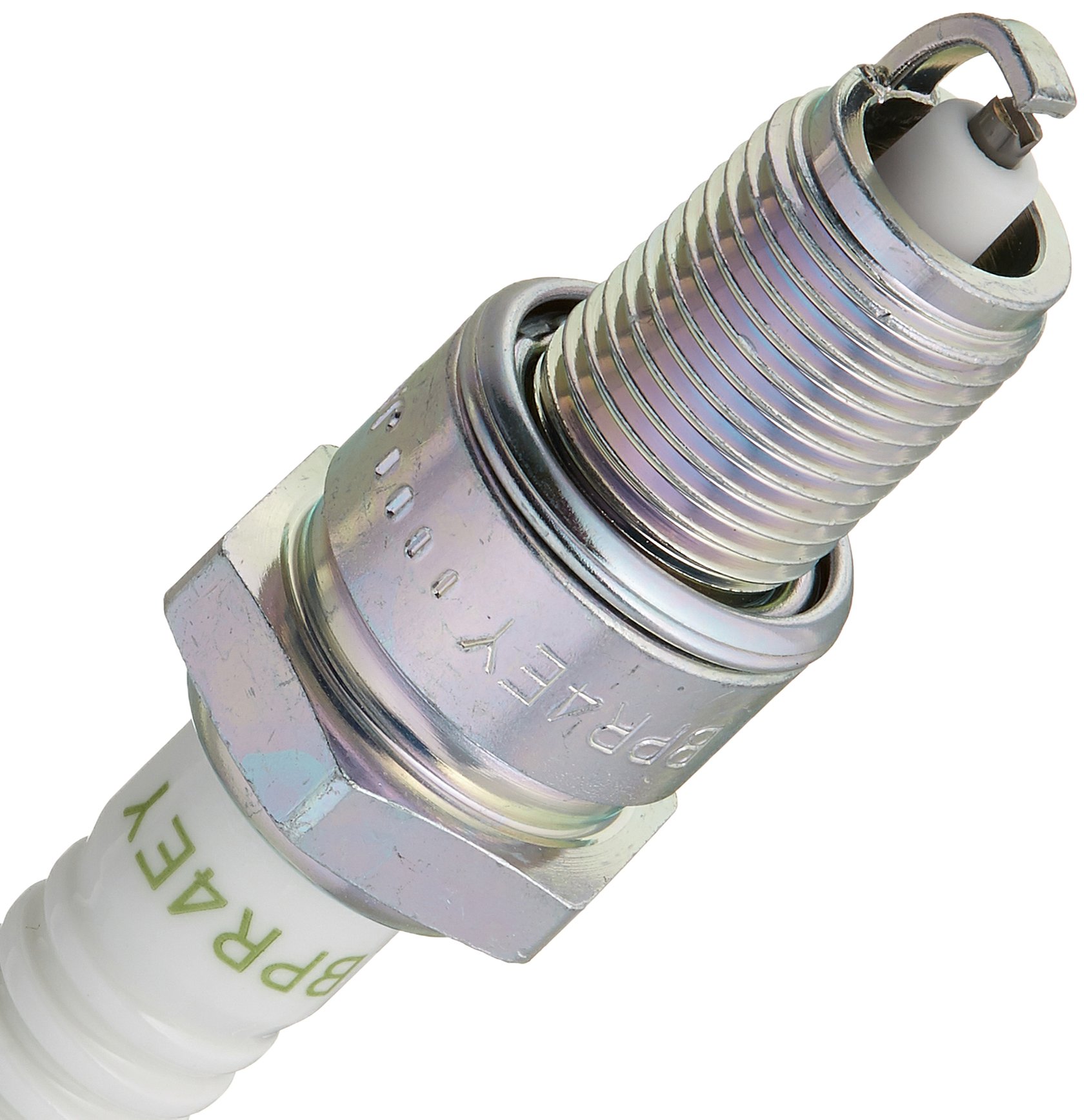

NGK 3432 BPR4EY V-Power Spark Plug 14mm Thread 3/4in Reach Heat Range 4

(Toyota Land Cruiser 1981-87; Bentley Continental 1985-93, Turbo R 1988, Mulsanne 1981-92, Corniche 1971-84, Brooklands 1993, Eight 1984-91 + 15 more models)

Manufacturer

Part Number

3432
Black Friday Price

$4.04

$5.31 Save 24%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The NGK 3432 V-Power spark plug (BPR4EY) is a resistor-type, nickel-alloy replacement spark plug for automotive, powersports and small-engine applications that call for an OE-style nickel plug. It has a V-cut center electrode that sends the spark to the edge of the electrode. This helps the spark develop faster, improves ignitability and lowers the voltage the ignition system needs.

Key Features:

  • V-grooved nickel alloy center electrode with a copper core for heat removal
  • Trivalent metal plating resists corrosion and seizing, which makes installation and removal easier
  • High-grade alumina silicate ceramic insulator for strength, heat transfer and dielectric performance
  • Corrugated insulator ribs help prevent flashover
  • Triple seals help prevent leakage
  • Built-in resistor (approx. 5k ohm) for reduced radio-frequency interference

Specifications:

  • NGK part number: 3432 (plug number BPR4EY)
  • Thread diameter: 14mm, thread pitch 1.25mm
  • Thread reach: 0.750 in. (19mm)
  • Hex size: 13/16 in. (21mm)
  • Seat type: gasket
  • Heat range: 4
  • Pre-set gap: 0.035 in. (0.9mm)
  • Terminal: solid, non-removable nut
  • Projected insulator tip, with 2.5mm center electrode
  • Ground electrode: standard, nickel
  • Torque: 18-25.3 lb-ft in cast iron heads, 18-21.6 lb-ft in aluminum heads

Cross-references: Toyota 90919-01103, Motorcraft AG54CU / AGR54CU, DENSO 3011 / 3012 / 3013 / 3014 / W14EX-U / W14EX-U11 / W14EXR-U / W14EXR-U11, Beck/Arnley 1765153, Daihatsu 90048-51121-000, Yamaha 94709-00342, Robin 065-01407-30.

This plug suits engines originally equipped with nickel-tipped plugs. It is not intended to replace factory precious-metal plugs. NGK has been an original-equipment spark plug supplier for decades. V-Power plugs are built for dependable starting, smooth idle and long service life.

Products specifications

Fits

Toyota Land Cruiser 1981-87; Bentley Continental 1985-93, Turbo R 1988, Mulsanne 1981-92, Corniche 1971-84, Brooklands 1993, Eight 1984-91, T1 Series 1968-76, T2 Series 1977-80; Rolls-Royce Silver Spur 1981-87, 1993, 1997 + 12 more models

Stock Number

3432

Part Number

BPR4EY

Electrical Terminal Type

Non-Removable Nut

Manufacturer Heat Range

4

Ground Electrode Core Material

Nickel

Hex Size

13/16

Seat Type

FLAT

Center Electrode Tip Material

Nickel

Ground Electrode Quantity

1

Ground Configuration

Standard

Pre-Gap Size

.036

Center Electrode Core Material

Copper

Ground Electrode Tip Design

Standard

Reach

.75

Insulator Height

55.00

Thread Diameter

14.00

Resistance

5000
