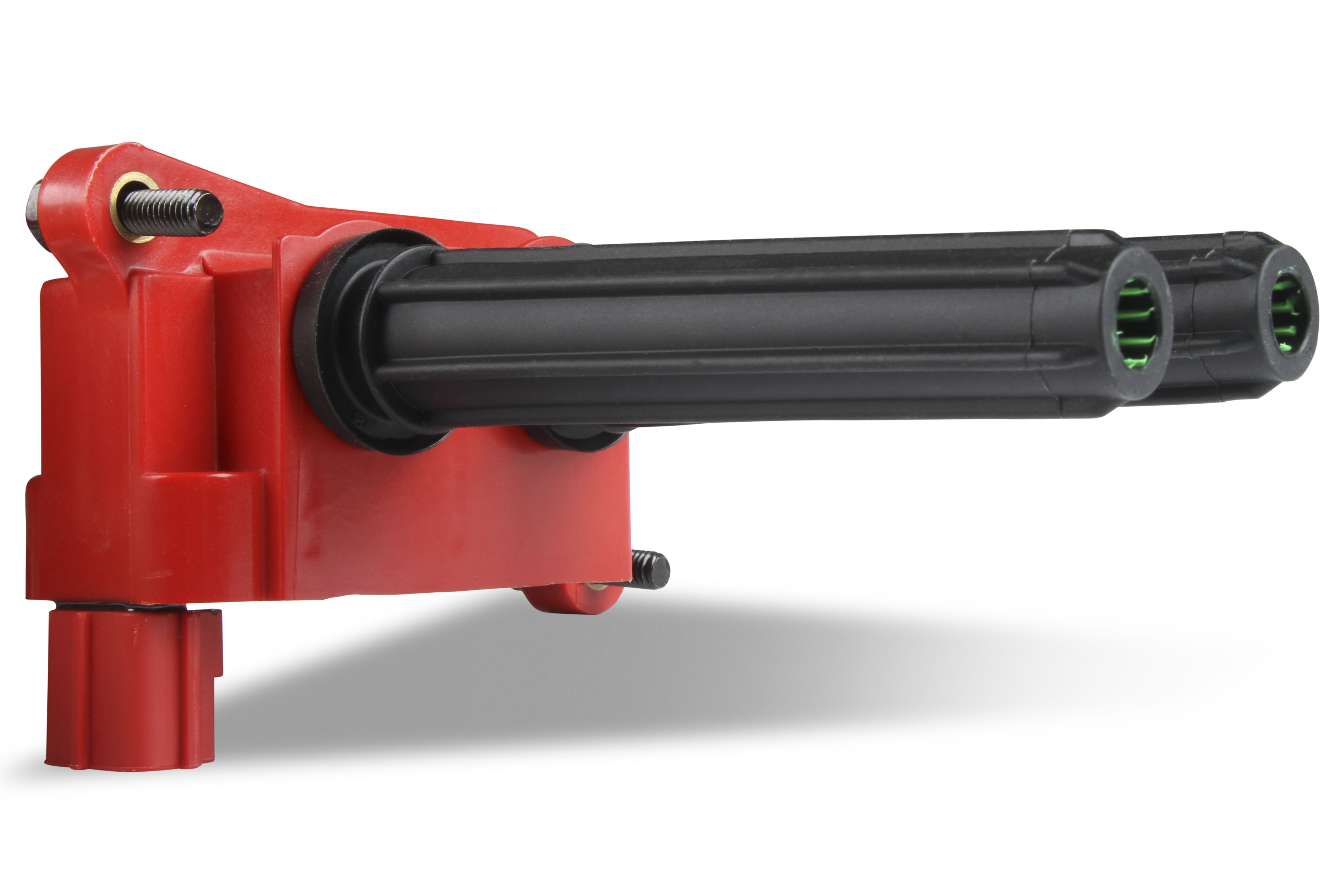

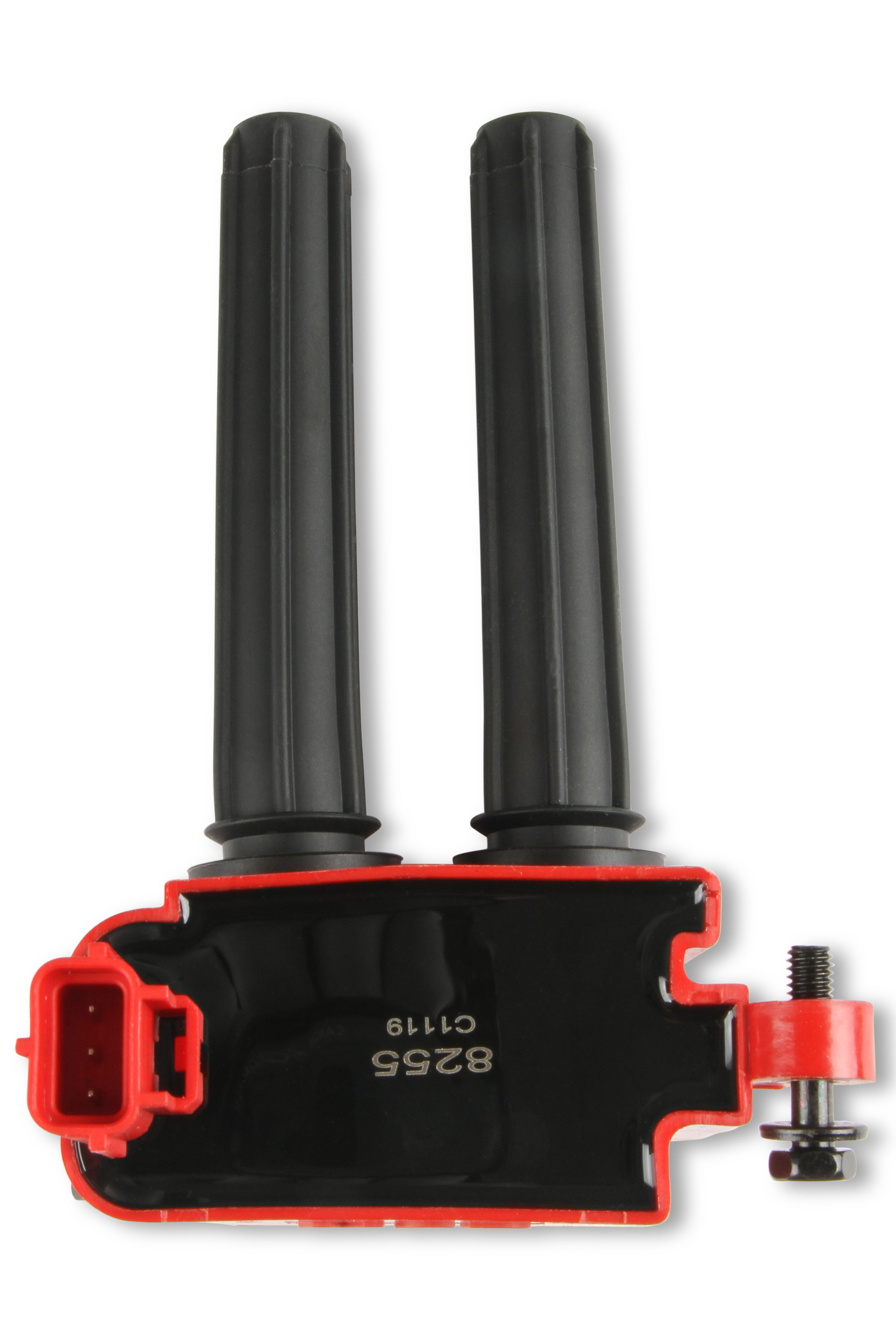

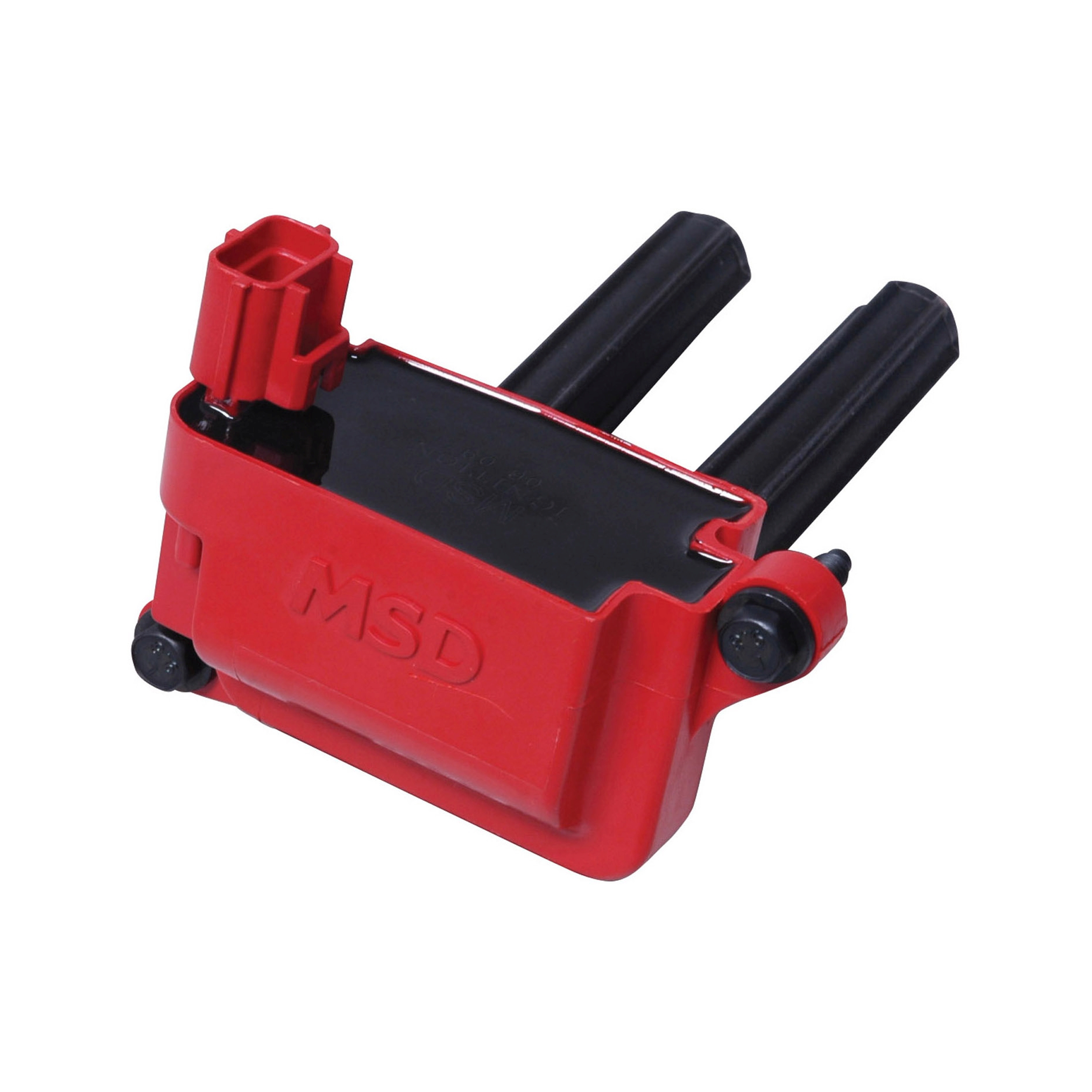

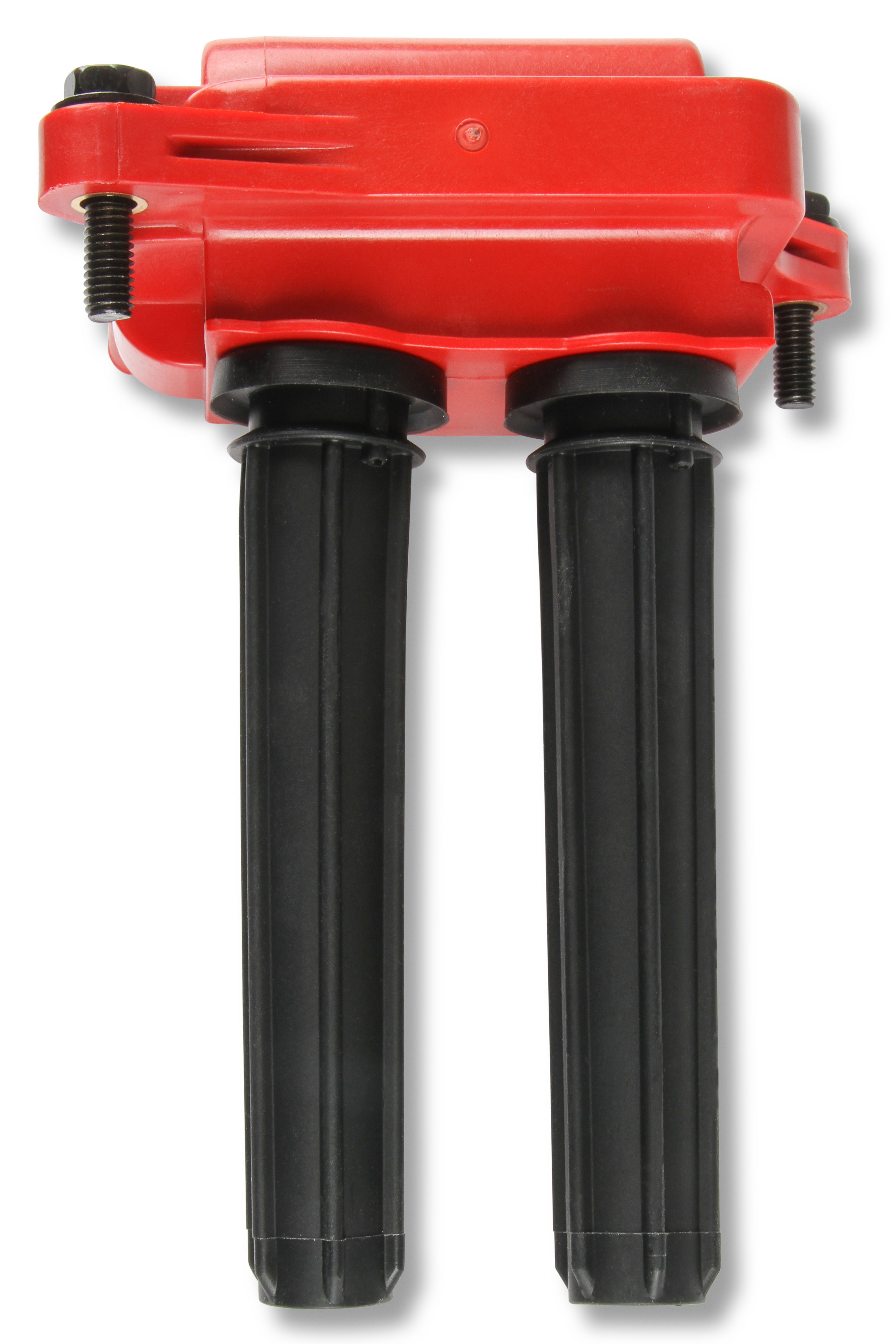

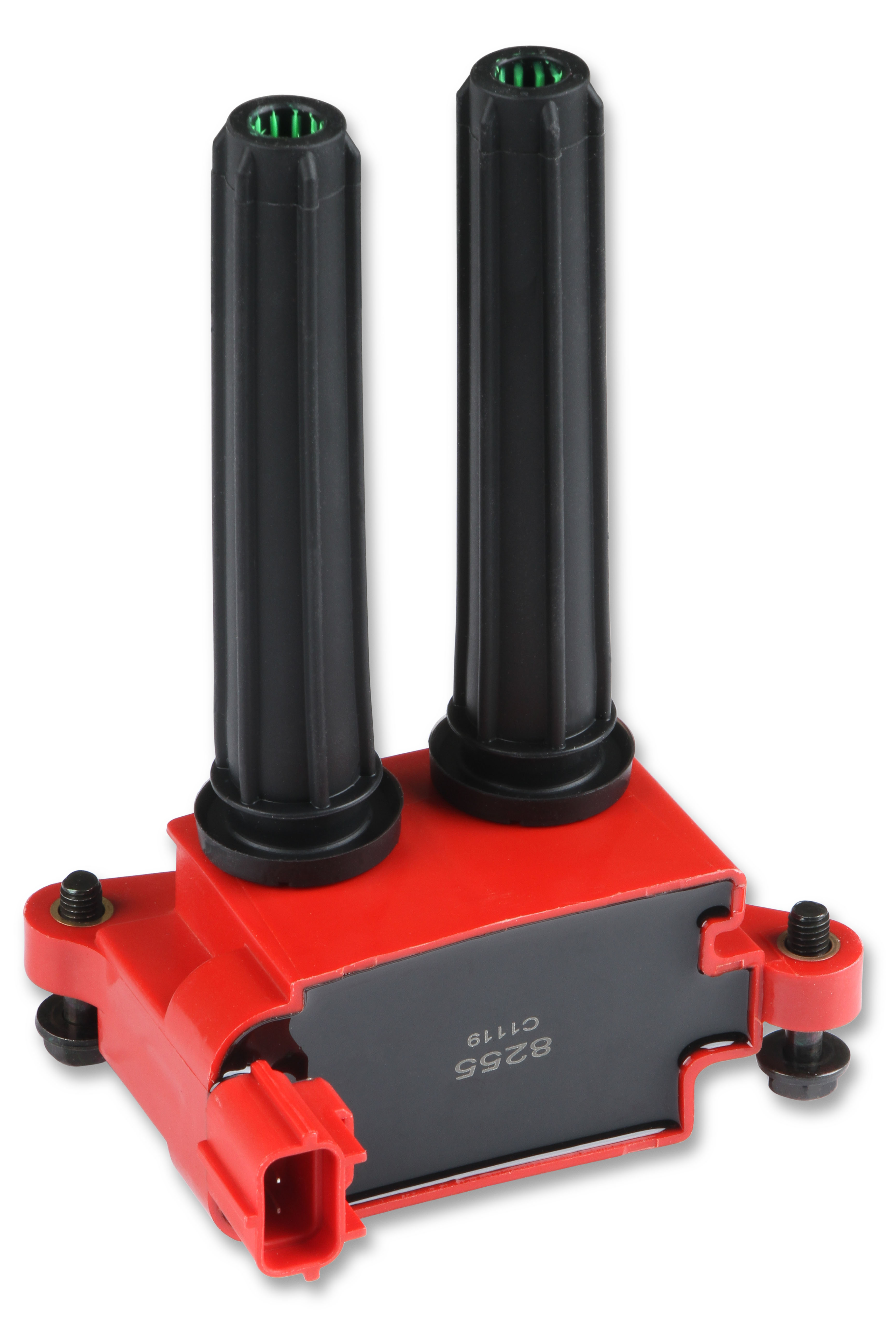

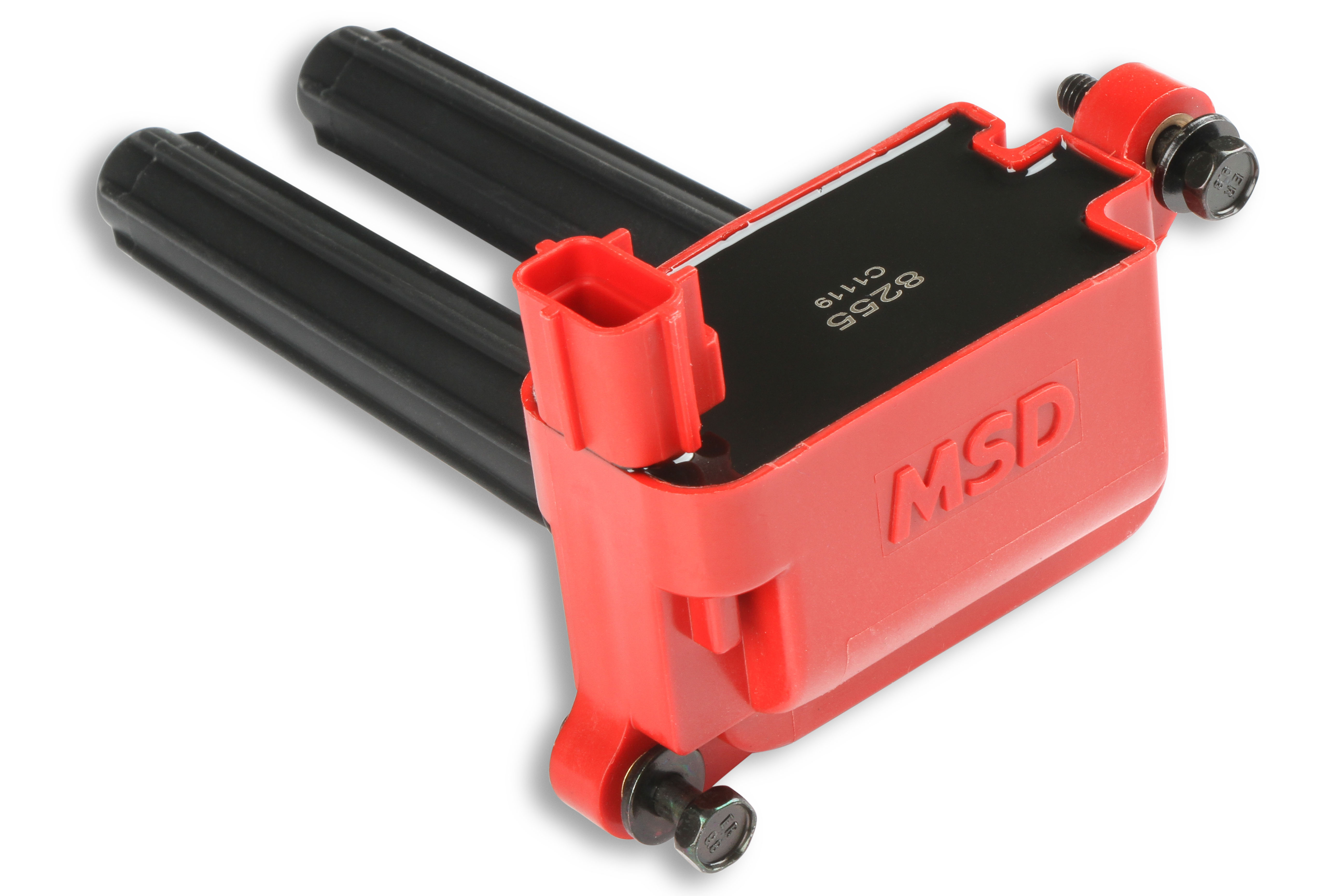

MSD 8255 Blaster Direct Ignition Coil Gen III HEMI 5.7/6.1/6.2/6.4 Red

The MSD 8255 Blaster Ignition Coil is a high-performance coil-on-plug direct ignition coil engineered for Gen III HEMI engines. Featuring MSD's patented winding design and premium internal materials, this coil delivers a stronger, more consistent spark than the factory unit — improving combustion efficiency, smoothing idle quality, and boosting mid-range RPM power.

Designed as a true direct bolt-in replacement, the MSD 8255 plugs directly into the factory coil connector with no wiring modifications required. The square-body, epoxy-filled construction provides excellent thermal and vibration resistance for long-term durability in demanding conditions. The coil is finished in MSD's signature red and is sold individually.

Key Specifications:

• Peak Secondary Current: 56 mA
• Maximum Output Voltage: 34,000 V
• Inductance: 3.2 mH
• Primary Resistance: 0.550 ohms
• Secondary Resistance: 14,500 ohms
• Turns Ratio: 80:1
• Spark Duration: 1,320 µS
• Coil Style: Coil-on-plug, square body
• Internal Construction: Epoxy filled
• Color: Red
• Quantity: Sold individually

Key Features:

• Patented winding design and superior materials for increased coil output
• Direct bolt-in fitment — plugs into factory connectors without modification
• Improved high-RPM ignition performance over OEM coils
• Stronger spark improves fuel burn efficiency for smoother idle and better throttle response
• CARB Executive Order D-40-42 — 50-state emissions legal
• Note: On 6.2L Hellcat applications, the MSD logo will face downward — this has no effect on performance
• Note: 2005 model year applications may require visual inspection to confirm correct coil part number

The MSD 8255 is the red variant of MSD's Blaster HEMI coil lineup and is compatible with 5.7L, 6.1L, 6.2L, and 6.4L Gen III HEMI engines. For the black color option, see MSD part number 82553.
