Skyjacker F8852KS-M 8.5 in. Suspension Lift System with M95 Performance Shocks and 4-Link Conversion

The Skyjacker F8852KS-M is an 8.5-inch suspension lift system engineered specifically for the Super Duty F-250 4WD Diesel. This comprehensive kit features a complete 4-Link Conversion that fundamentally re-engineers the front suspension geometry for improved performance, articulation, and long-term durability on and off the road.

4-Link Conversion System:

• Replaces OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms
• Control arms are adjustable Flex Links formed from 2-inch OD x 0.250-wall DOM tubing
• Flex Links feature a forked clevis end at the lower axle mount and a 1-1/4" forged rod end with steel-encased rubber bushing at the upper bracket mount
• Drop brackets lower the rear frame mounts to maintain correct caster specifications for proper alignment
• Adjustable design allows precise caster settings for improved handling

Springs:

• 2-Stage Variable Rate front coil springs specifically engineered for the heavy diesel powerplant — the first flex rate stage delivers a comfortable everyday ride while the second rate supports full articulation and load
• Softride® Technology rear leaf springs with tapered leafs to distribute loads more evenly and maximize flex at the leaf ends
• Teflon® wear pads and bolt-style spring clips prevent binding and eliminate friction

M95 Performance Shocks:

• Front and rear M95 monotube performance shocks included
• Nitrogen-charged design for consistent, fade-resistant damping
• Matched to the 8.5-inch lift height for optimal valving and wheel travel

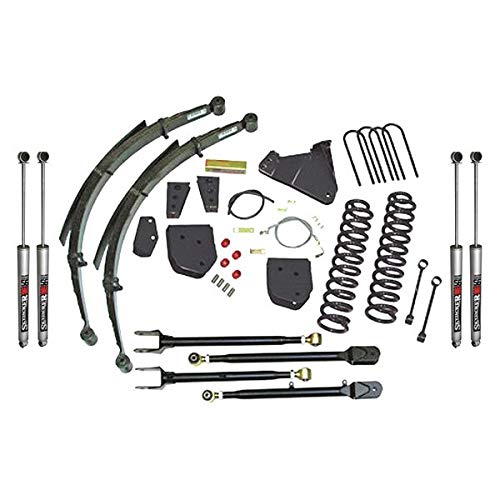

Kit Includes:

• Front coil springs
• Rear leaf springs
• Upper and lower adjustable 4-link control arms
• Radius arm drop brackets
• Track bar bracket
• Steering stabilizer
• Sway bar links
• Brake line extensions
• M95 performance shocks (front and rear)
• U-bolts and all necessary mounting hardware
• Detailed installation instructions

Important Notes: This kit does not fit models equipped with a gas engine — diesel engine only. Pitman Arm FA450 is required (sold separately). If the vehicle is equipped with a rear sway bar, order extended end links SBE406 (sold separately).
