Nitrous Express 93106-00 8 Cylinder Dry Direct Port Dual Stage Nitrous System

The Nitrous Express 93106-00 is a professional-grade dual stage dry direct port nitrous injection system engineered for 8-cylinder applications. This advanced system delivers nitrous oxide directly into each cylinder through two independent sets of high-flow dry nozzles, providing precise power delivery across a wide range from 200 to 600 horsepower.

System Design:

This dry direct port configuration is specifically designed to work in conjunction with an advanced engine management system capable of adding fuel enrichment through the engine's existing fuel injection system. The included jet card provides detailed lbs/hr flow data for each horsepower setting, enabling precise tuning of your EMS nitrous enrichment parameters for optimal air/fuel ratios and safe operation.

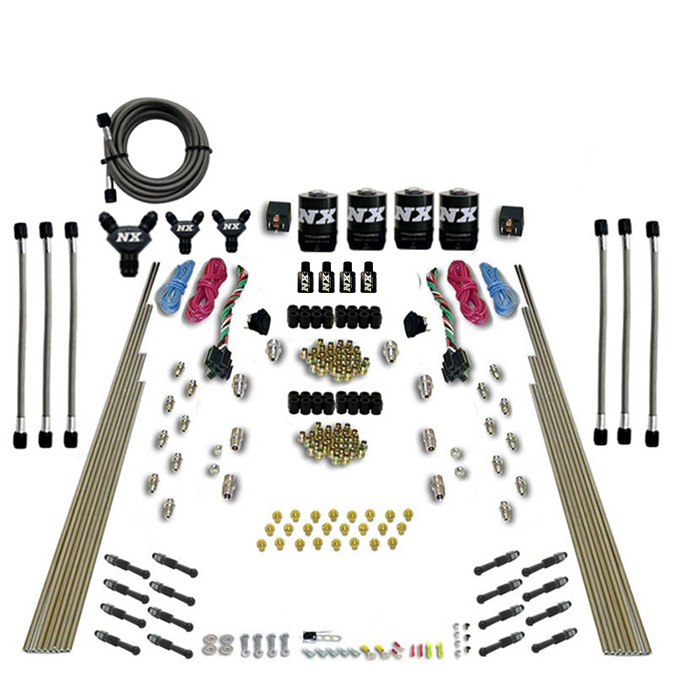

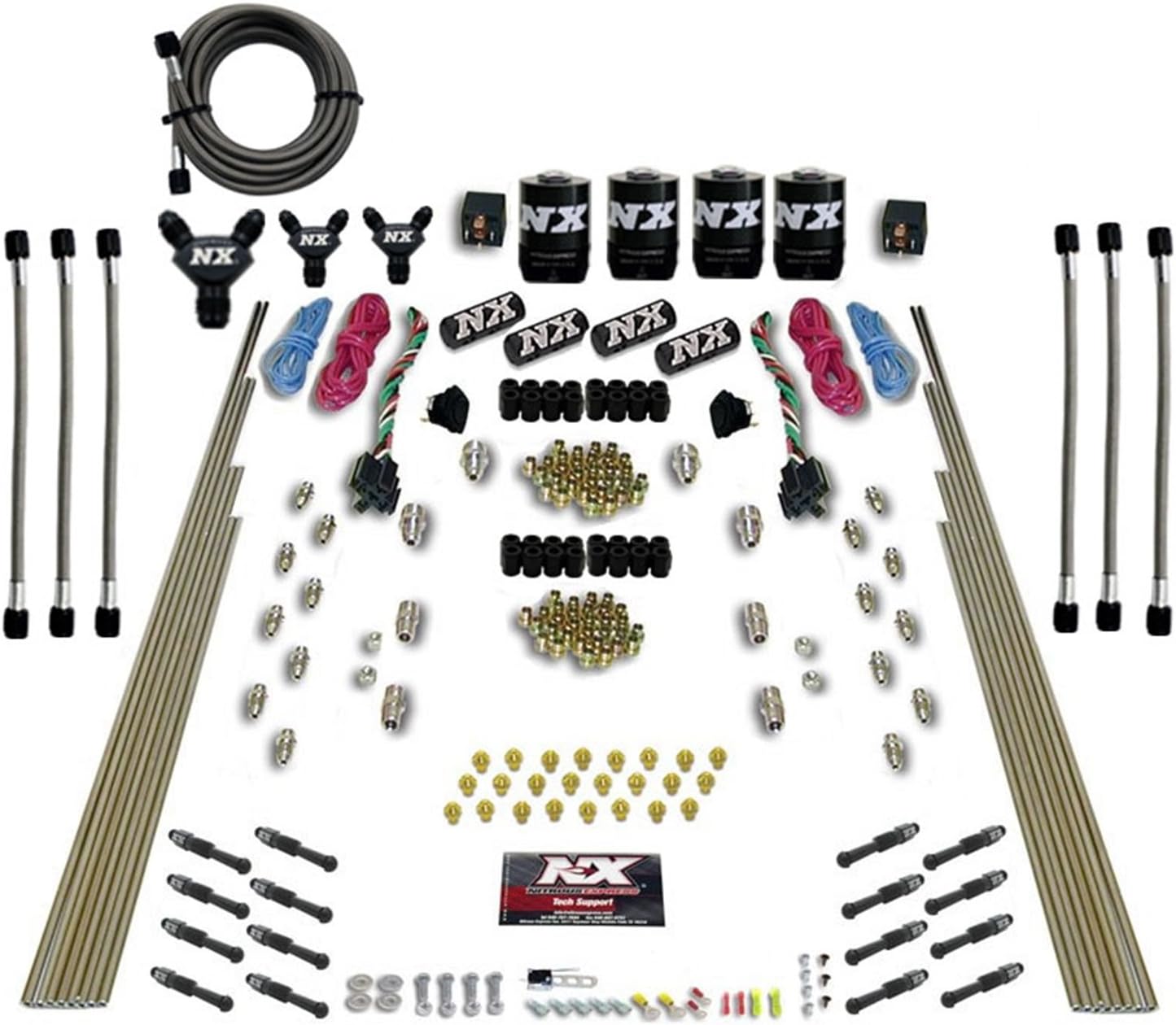

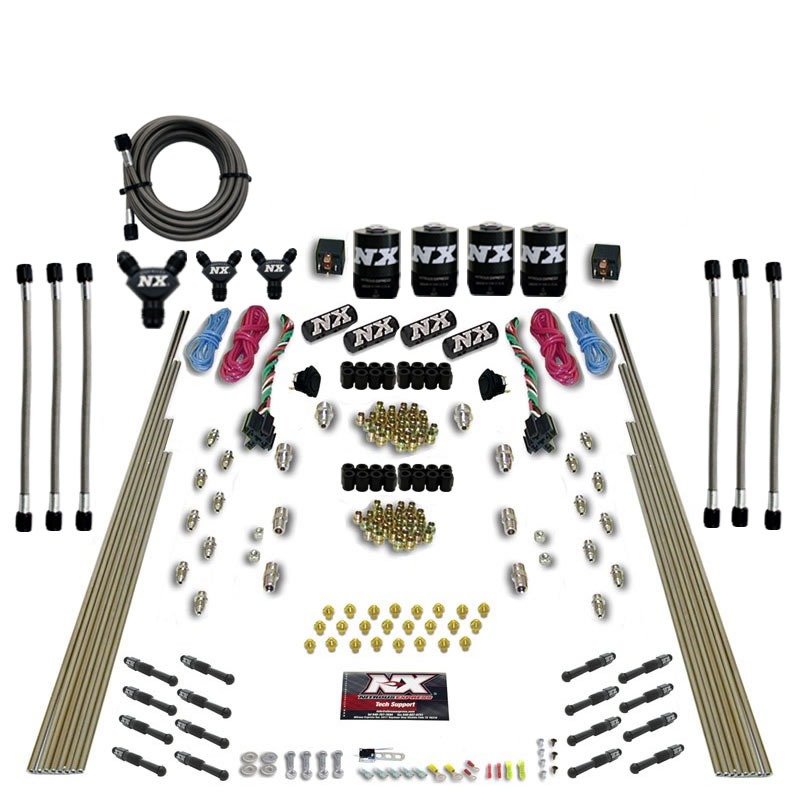

Complete Kit Includes:

• Four billet aluminum and carbon fiber Lightning Nitrous Solenoids for precise flow control
• Sixteen NX Dry Nozzles (two per cylinder for dual stage operation)
• 6AN nitrous feedline for high-flow delivery
• Jet pack for 100-600 horsepower per stage tuning flexibility
• Wide Open Throttle (WOT) activation switch
• Electrical relay and complete relay harness
• All necessary mounting hardware and fittings for installation

Technical Specifications:

• Configuration: 8-cylinder dry direct port
• Stages: Dual stage progressive activation
• Power Range: 200-600 horsepower (combined stages)
• Solenoid Count: 4 high-flow Lightning solenoids
• Nozzle Configuration: 16 dry nozzles (2 per cylinder)
• Line Size: 6AN nitrous feed

This system does not include a nitrous bottle and requires a standalone engine management system with nitrous fuel compensation capability. The dual stage design allows for progressive power delivery, activating the first stage for initial boost and engaging the second stage for maximum power output. Ideal for serious performance applications including drag racing, road racing, and high-horsepower street builds.
