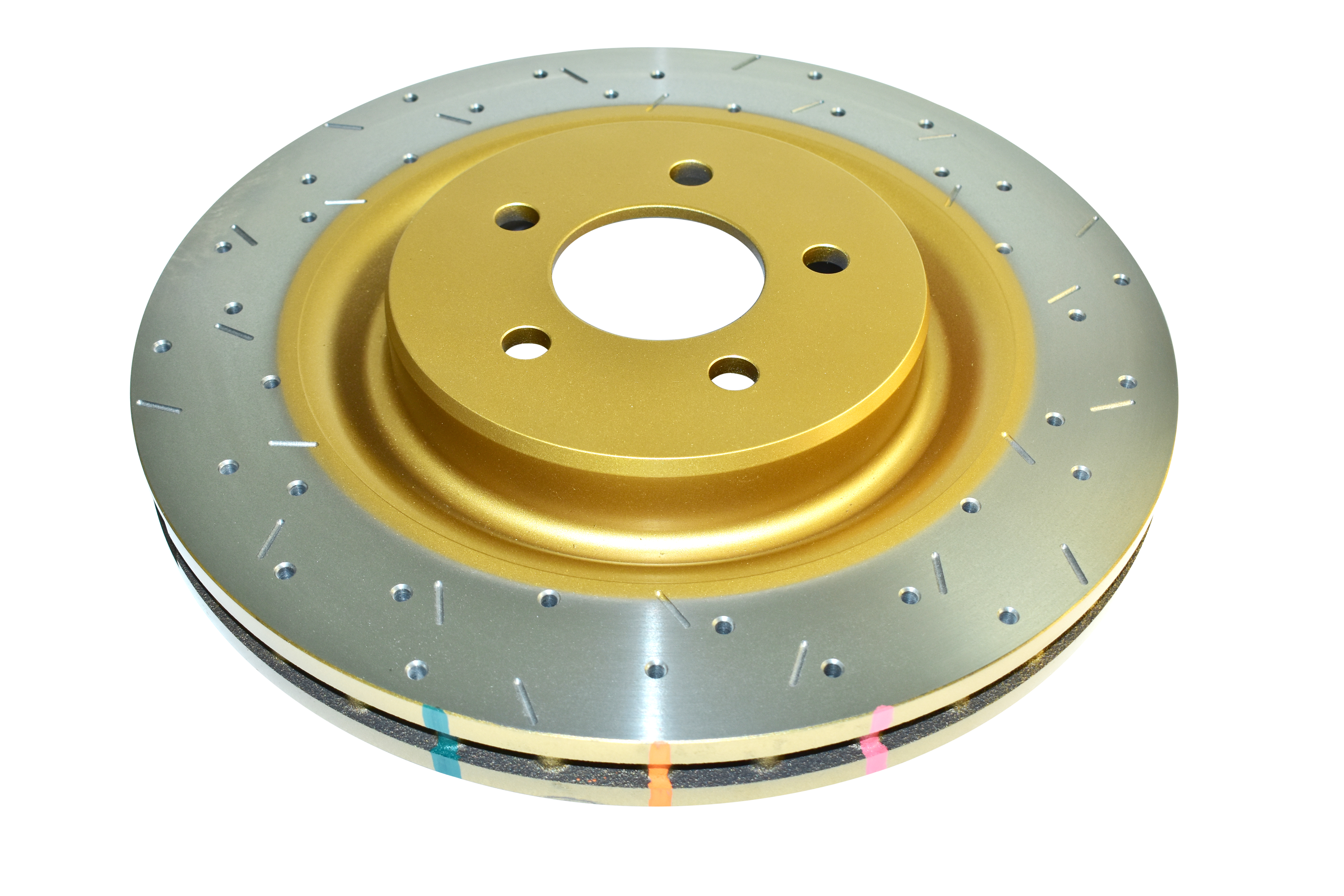

DBA DBA4748XS 4000 Series XS Gold Cross-Drilled Slotted Brake Rotor 296mm Front

The DBA 4000 Series XS brake rotor is a one-piece rotor featuring a premium non-directional cross-drilled and slotted design, accentuated by an appealing gold finish on the rotor hub. Designed for drivers seeking upgraded performance braking above and beyond standard OE levels, this 296mm front brake disc delivers enhanced stopping power for performance street cars, heavily laden SUVs, and towing applications.

Advanced Cooling Technology:

• Kangaroo Paw ventilation implements a series of 144 diamond and teardrop patterned pillars, achieving up to a 30% increase in surface area and 20% improvement in cooling efficiency
• Unique non-directional cross-drilled and slotted pattern increases passive cooling and allows for gas-escape whilst maintaining excellent rigidity
• Symmetrical slots and chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel

Premium Construction:

• Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA's metallurgy can handle the increased stress and heat generated under intense braking applications
• CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad knock and resulting premature wear
• Thermographic heat paint markings change colour at specific temperature thresholds to assist with monitoring braking temperatures and rotor fatigue

Specifications: 296mm diameter, 32mm thickness, 62mm center bore, 5-bolt pattern, 51mm height, vented design. While providing similar performance benefits to the T3 slot, the XS Gold is a popular alternative for show cars. Note: Drilled rotor configurations are not recommended for heavy off-road or track day usage.
