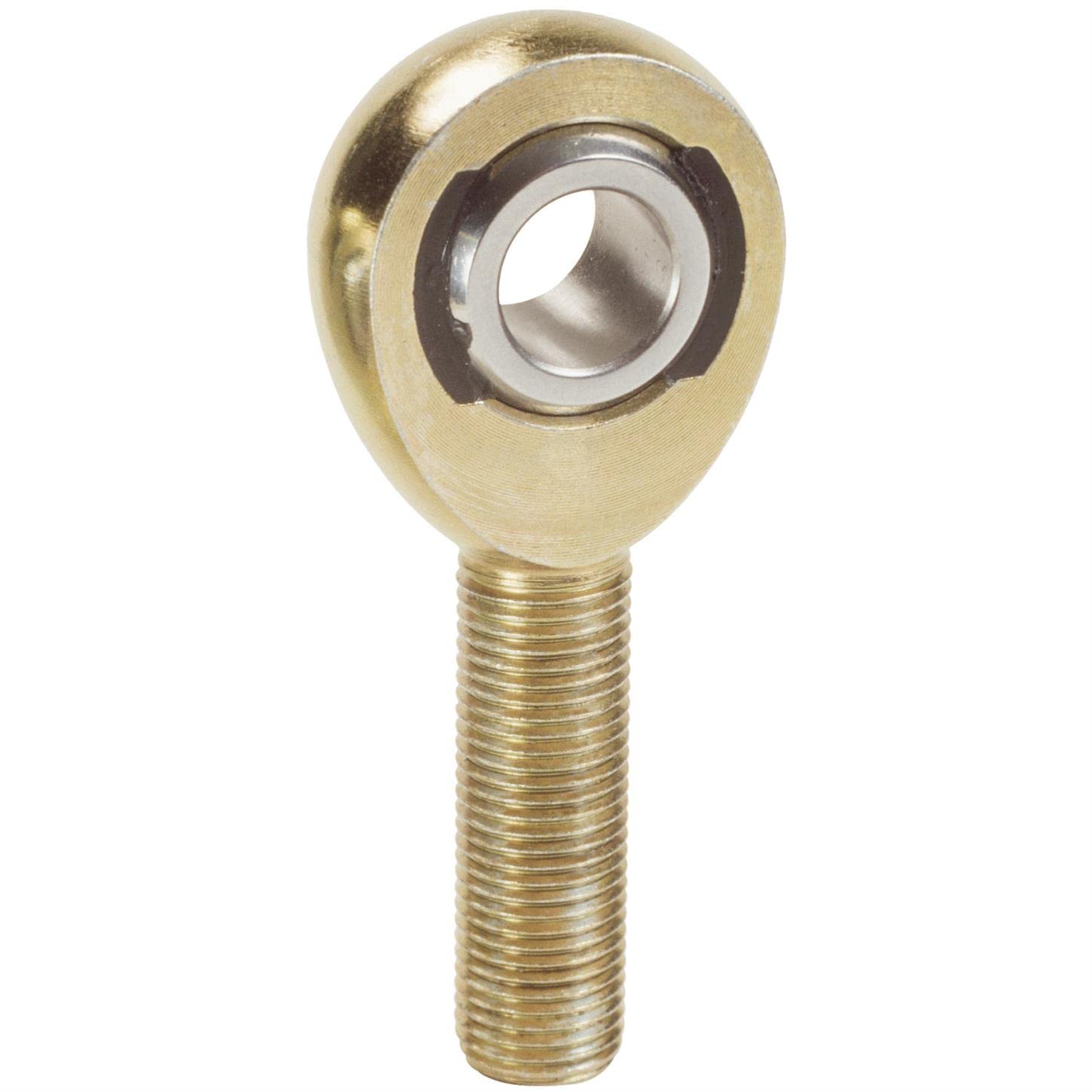

QA1 EXMR7-8 EXM Carbon Steel Loader Slot Rod End 7/16in Bore 1/2-20 RH Male Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

EXMR7-8
5 reviews
Sale Price

$12.85

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 EXMR7-8 is an EXM Series carbon steel loader slot rod end featuring a 7/16 in. (0.4375 in.) bore and 1/2 in.-20 right-hand male thread. As QA1's economical alternative to alloy and chromoly steel rod ends, the EXM Series delivers the performance and durability demanded by motorsports applications without sacrificing value.

At the core of the EXM design is QA1's unique loader slot construction. The body is machined with a circumferential groove, the ball is seated into this slot, and a reinforced Nylon/PTFE race is injection-molded in place. This process creates a permanently self-sealing and self-lubricating assembly that resists dirt and debris intrusion — and unlike traditional pressed-in PTFE liners, the injection-molded race won't pound out under load.

The increased cross-sectional body thickness provides greater tensile strength, while the loaded slot geometry delivers metal-to-metal support under heavy shock loads and smooth articulation under light loads — making this rod end suitable for a wide range of racing and performance applications including 4-link suspensions, ladder bars, and chassis linkages.

Ball:

  • 52100 bearing steel construction
  • Heat treated for strength
  • Hard chrome plated for wear resistance
  • Precision ground for smooth operation

Race:

  • Self-lubricating reinforced Nylon 12 with PTFE
  • Injection molded — won't pound out like traditional liners
  • Self-sealing against dirt and debris

Body:

  • Carbon steel (alloy/chromoly steel at manufacturer's option)
  • Protective coating for corrosion resistance
  • Increased cross-sectional thickness for greater tensile strength

Key Features:

  • Loader slot design — QA1 is the exclusive provider of carbon steel loader slot rod ends
  • Metal-to-metal support for heavy shock loads
  • Available with right- or left-hand threads
  • Stud configurations also available

Products specifications

A (+/-0.015)

2.437

Approx Bearing Weight

0.24

B (+0.0015/-0.0005)

0.4375

Ball Dia Ref

0.812

C (+0.062/-0.031)

1.5

D (+/-0.010)

1.312

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.562 in.

Rod End Centerline Length

2.438 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.4375 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.562 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

9,620 lbs.

Rod End Static Load Capacity (lbs)

9,620 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1/2-20 RH in.

T (+/-0.005)

0.437

Thread Length

1.500 in.

Thread Type

Right Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

9620

W (+/-0.005)

0.56
