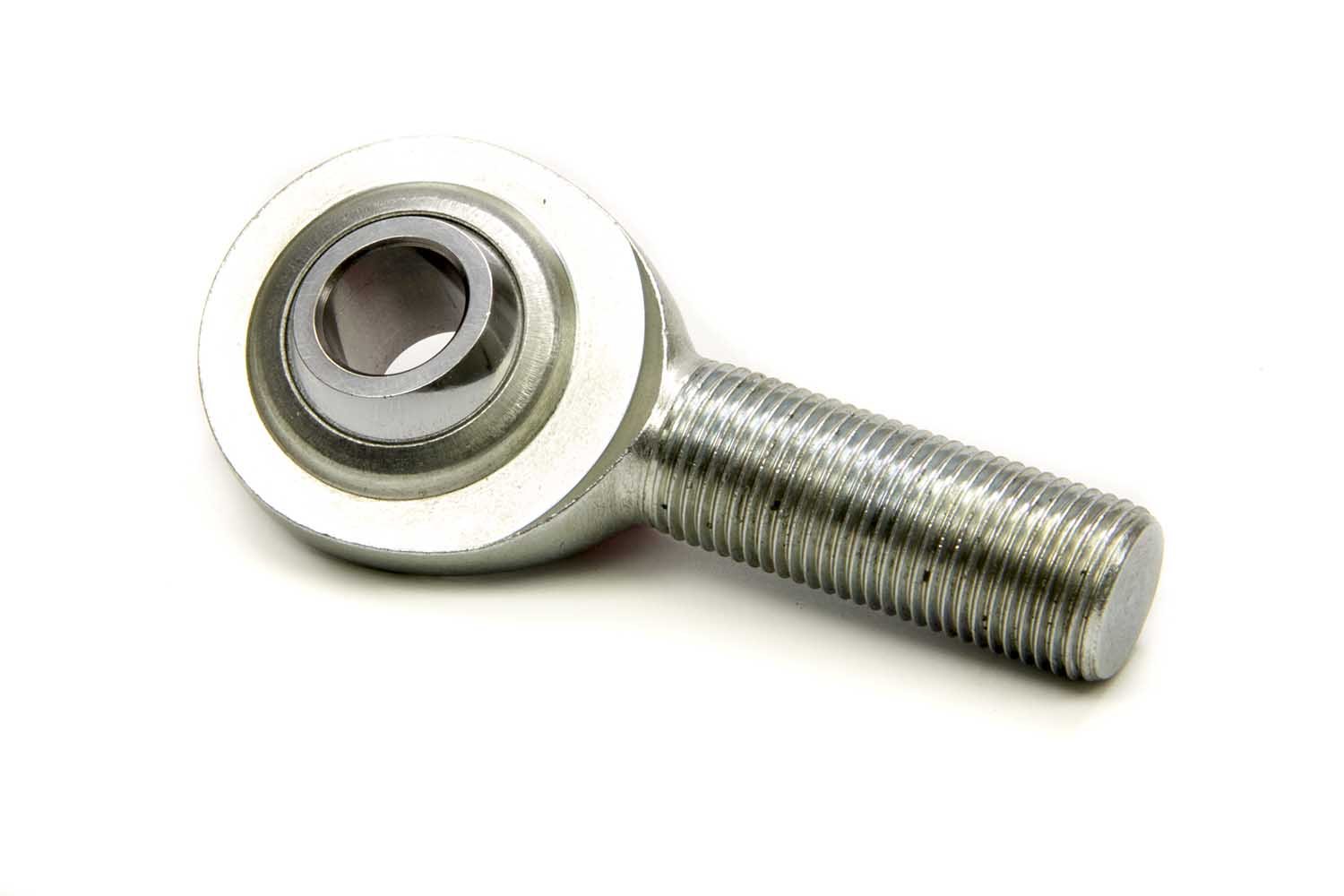

QA1 CML8-10T CM-T Series Carbon Steel Male Rod End 1/2in Bore 5/8in-18 LH PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CML8-10T
4 reviews
Sale Price

$12.03

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CML8-10T is a CM-T Series two-piece carbon steel male rod end featuring a self-lubricating PTFE liner. Designed for a wide range of commercial and performance applications, this rod end combines a traditional two-piece construction with the maintenance-free convenience of a PTFE liner for smooth, low-friction articulation.

The body is protective-coated for corrosion resistance and features a left-hand thread configuration, making it well-suited for adjustable linkage assemblies and suspension components where thread direction matters. Available in standard configuration with optional stud setups.

Key Specifications:

  • Series: CM-T Carbon Steel Male (2-Piece)
  • Bore: 1/2 in. (0.5000 in.)
  • Thread Size & Pitch: 5/8 in.-18
  • Thread Direction: Left-Hand (LH)
  • PTFE Lined: Yes – Self-Lubricating

Ball Construction:

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Body Construction:

  • Carbon Steel
  • Protective Coated for Corrosion Resistance
  • PTFE Lined

Note: Load ratings apply only to rod ends without grease fittings. Stud configurations are available separately.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.34

B (+0.0025/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.625

D Ref

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

20

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.625 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

26 degrees

Rod End Static Load Capacity

13,729 lbs.

Rod End Static Load Capacity (lbs)

11,532 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

5/8-18 LH in.

Thread Length

1.625 in.

Thread Type

Left Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

11532

W (+/-0.005)

0.625
