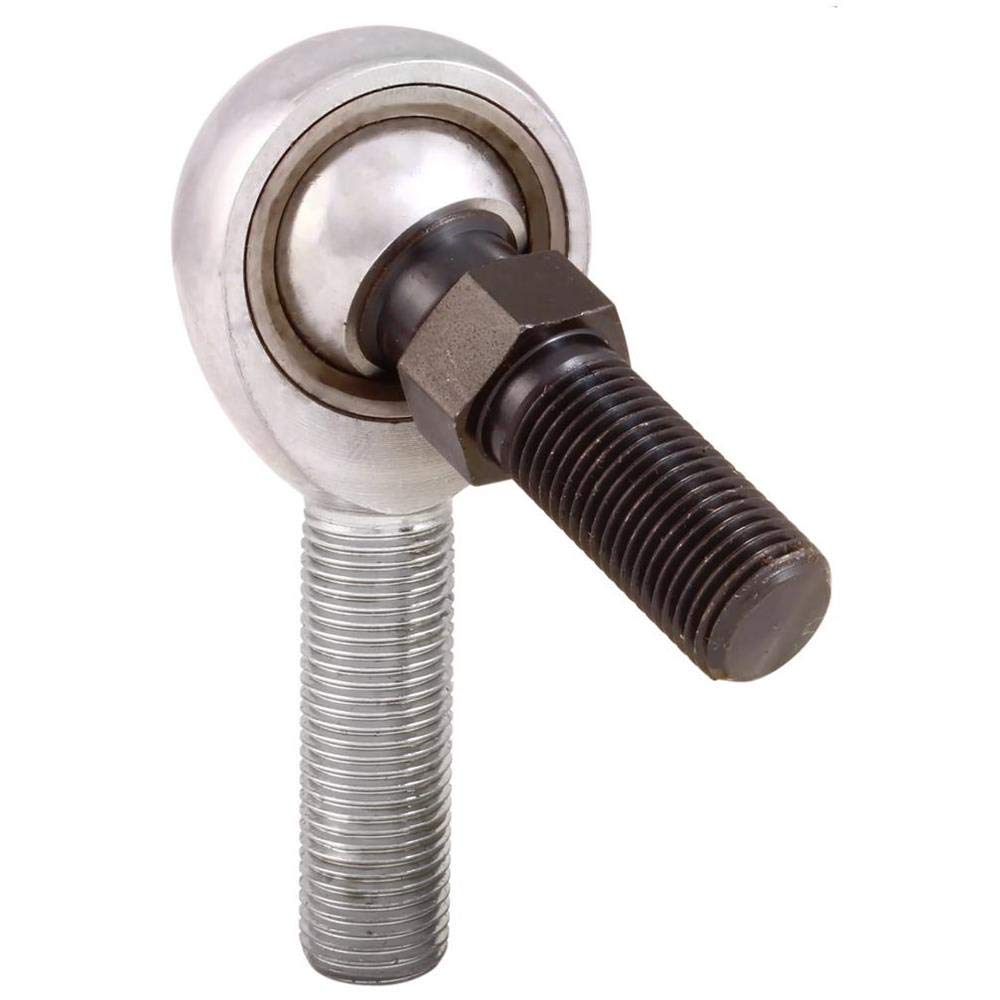

QA1 KMR10-12 K Series 3-Piece Carbon Steel Male Rod End 5/8in. Bore 3/4-16 RH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KMR10-12
4 reviews
Sale Price

$20.00

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KMR10-12 is a precision 3-piece carbon steel male rod end (heim joint) from QA1's KM Series, featuring a 5/8 in. bore and 3/4 in.-16 right-hand male thread. Designed for applications requiring tighter tolerances, this rod end uses a unique construction where the ball is pressed into a sleeve that is swaged around the ball to form an insert. The insert's outer diameter is then precision-turned and faced square before being staked into the rod end body, resulting in superior ball-to-race conformity and exceptional dimensional accuracy.

Key Features:

  • 3-piece precision construction with swaged insert for tighter tolerances
  • 5/8 in. (0.625 in.) bore diameter
  • 3/4 in.-16 right-hand male thread
  • Protective coating on body for corrosion resistance
  • Grease fitting and stud configurations available
  • Sold individually

Ball:

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race:

  • Alloy Steel
  • Corrosion and Wear Resistant

Body:

  • Carbon Steel
  • Protective Coated for Corrosion Resistance

QA1 KM Series rod ends are also available in left-hand thread configurations and a range of inch dimensions, making them a versatile choice for chassis, suspension, and steering linkage builds where precision rod ends and heim joints are required.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.57

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.75

D (+/-0.010)

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

13

Notes

Only rod end ball and race are heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.750 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

13 degrees

Rod End Static Load Capacity

16,565 lbs.

Rod End Static Load Capacity (lbs)

16,565 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/4-16 RH in.

T (+/-0.005)

0.562

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

16565

W (+0.000/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing KMR10-12
