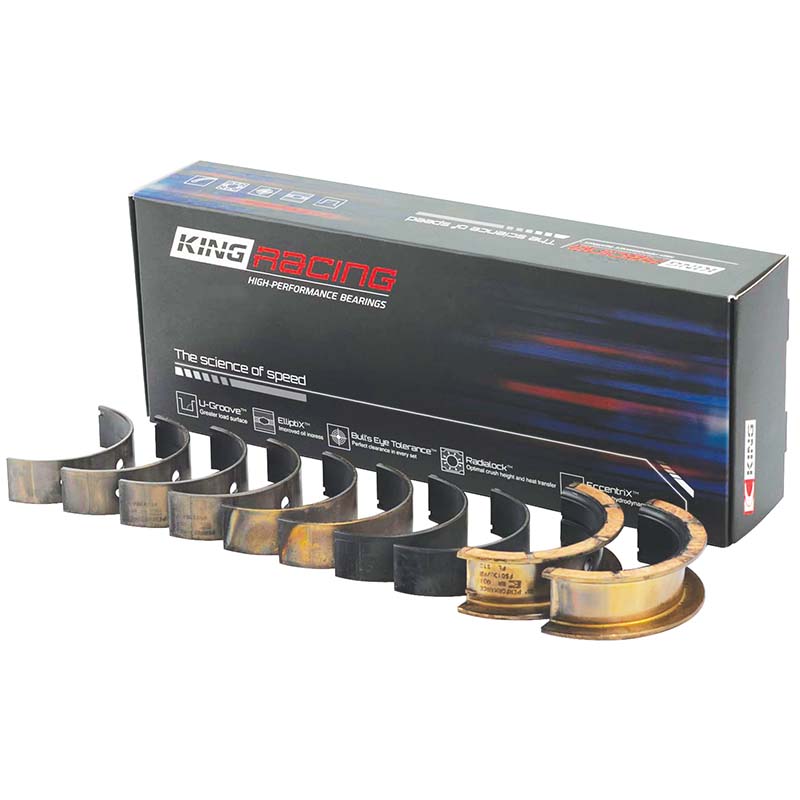

King Engine Bearings MB529XP001 XP Series Tri-Metal Performance Main Bearing Set

(Ford F-150 1975-96, Mustang 1964-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-96, Thunderbird 1977-88, 1991-93, F-350 1972-98 + 86 more models)

Manufacturer

Part Number

MB529XP001
Black Friday Price

$135.74

Estimated ship date Saturday, December 12

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Engine Bearings MB529XP is an XP Series high-performance crankshaft main bearing set engineered for the Ford Small Block Windsor family, including the 260ci, 289ci, 302ci, and 5.0L engines. Designed for builders who demand the maximum in load capacity and durability, the XP Series combines advanced metallurgical technology with precision geometric design to survive the extreme demands of competition engines running forged steel aftermarket crankshafts.

pMaxBlack Tri-Metal Construction:

At the core of the XP Series is King's proprietary pMaxBlack overlay — a nano-scaled hardening process applied to a tri-metal copper-lead structure with a nickel barrier and SecureBond adhesion layer. This overlay delivers an industry-leading hardness level of up to 18.1 HV and withstands up to 10,200 PSI overlay fatigue resistance, while the intermediate layer handles up to 17,000 PSI load capacity. The result is a bearing that is 24% harder than conventional tri-metal race bearings with 17% more fatigue resistance than the nearest competitor.

XP Series Key Features:

  • Bull's Eye Tolerance: All bearing shells are matched to ±0.0001" wall thickness — the tightest tolerances in the industry — for consistent crush and optimal oil film geometry
  • pMaxBlack Overlay: 0.0005" metallurgically enhanced and hardened overlay resists surface fatigue and withstands greater loads than standard overlays
  • SecureBond Adhesion: Unique adhesion process ensures superior stability between the top and intermediate layers, preventing delamination under shock loads
  • 15%–30% Greater Load Capacity: Versus traditional tri-metal bearings across the full RPM range
  • Half-Groove Mains: Upper shells are half-grooved to preserve full lower shell load capacity where loads are highest
  • Enlarged, Chamfered Oil Holes: Improves oil ingress and film pressure distribution across the bearing surface
  • Medium Eccentricity (Eccentrix): Optimized eccentricity value derived from elasto-hydrodynamic analysis for superior load distribution and oil retention
  • Narrowed Design (Radialock): Mains are narrowed to clear the large-radius fillet crankshafts used in performance builds
  • Wide Size Selection: Available in standard and multiple undersizes to accommodate various crank grinding specifications

Ideal Applications:

  • Circle track and oval racing
  • Drag racing
  • Off-road and off-shore racing
  • Any high-load, long-duration performance application using a forged steel crankshaft

This set includes 5 pairs of main bearing shells sized for the Ford Small Block Windsor 260ci, 289ci, 302ci, and 5.0L engines. King Engine Bearings offers the industry's widest selection of sizes and clearance options, ensuring the right fit for even the most demanding performance builds.

Products specifications

Fits

Ford F-150 1975-96, Mustang 1964-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-96, Thunderbird 1977-88, 1991-93, F-350 1972-98, Maverick 1970-77, Galaxie 500 1962-74, F-100 1969-83, F-250 Pickup 1972-74, Fairlane 1962-70 + 81 more models

Flange Oversize

FL STD

Material

pMax Black (racing line)

Undersize

001

Housing Diameter

62.03 / 62.01 mm || 2.442 / 2.441 inch

STD Max Thickness

2.438

Shaft UnderSize

001

STD Shaft Diameter

57.12 / 57.10 mm || 2.249 / 2.248 inch
