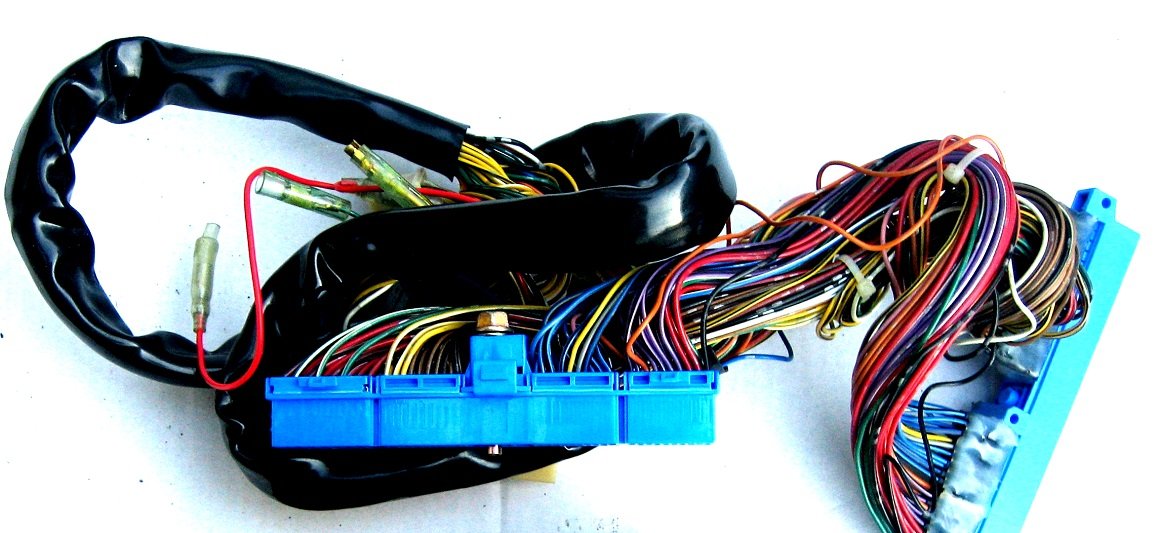

F-CON iS / F-CON V Pro Harness
Type NP5-2
HKS USA,
Inc. releases the newest version of its engine management system,
the F-CON V Pro version 3.3. The new
F-CON V Pro hardware and Power Writer
software have been upgraded to offer improved functionality and
features over the previous generations.
The HKS F-CON V Pro is a full featured standalone engine
management system that connects easily to the factory Engine
Control Unit as a ?piggy-back? fuel and timing controller. As
modifications to a vehicle are made, the need for fuel and timing
adjustments becomes critical for performance and safety. With up to
4 selectable trim maps for different fuel octane ratings, the
F-CON V Pro with its 32?32 resolution for
both fuel and timing maps is the optimal solution.
The F-CON V Pro can control up to
eight injectors with D Jetro or L Jetro setups. Injectors can be
set to fire as batch, sequential or staged. The F-CON V Pro can also be utilized in ?drive by wire?
vehicles. Programming is done via the HKS
Power Writer software; which only Certified HKS Pro Dealers have access to.
The HKS Power Writer software for the
F-CON V Pro has some very unique
abilities to simplify setup and tuning. The F-CON V Pro utilizes A/F Feedback control; where a
target A/F value can be input and the F-CON V Pro will adjust fuel automatically.
Full data logging capabilities are also built into the
F-CON V Pro Power Writer software
allowing all major vehicle conditions; speed, rpm, water
temperature, intake temperature, timing, boost, injector duty
cycle, etc. to be logged onto the HKS Pro
Dealer?s computer.
New functions and features of the F-CON V Pro 3.3 include:
- Expanded vehicle applications including Mitsubishi?s Lancer
Evolution X
- Air flow input voltage monitoring
- Direct inputs for: Fuel pressure, Oil pressure and Oil
temperature
- Compatibility with the HKS A/F Knock
Amp 2 (AFK)
- Deceleration fuel cut by vehicle speed, improving low speed
drivability
- Flat shift (wide open throttle) rpm control
- Pit lane speed limiter
- Compatibility with HKS Valcon
- Improved Idle Control Valve control
- Error code reporting and memory function
- Oil Pressure, oil temp warning light option output
- RPM, ignition cut, and data logging
warning/indicator light output
The HKS F-CON V Pro and tuning is only available exclusively
through select Authorized Pro Dealers.
The F-CON V Pro version 3.3 is
currently NOT compatible with
the HKS F-CON
Navigator and Navigator Pro.
