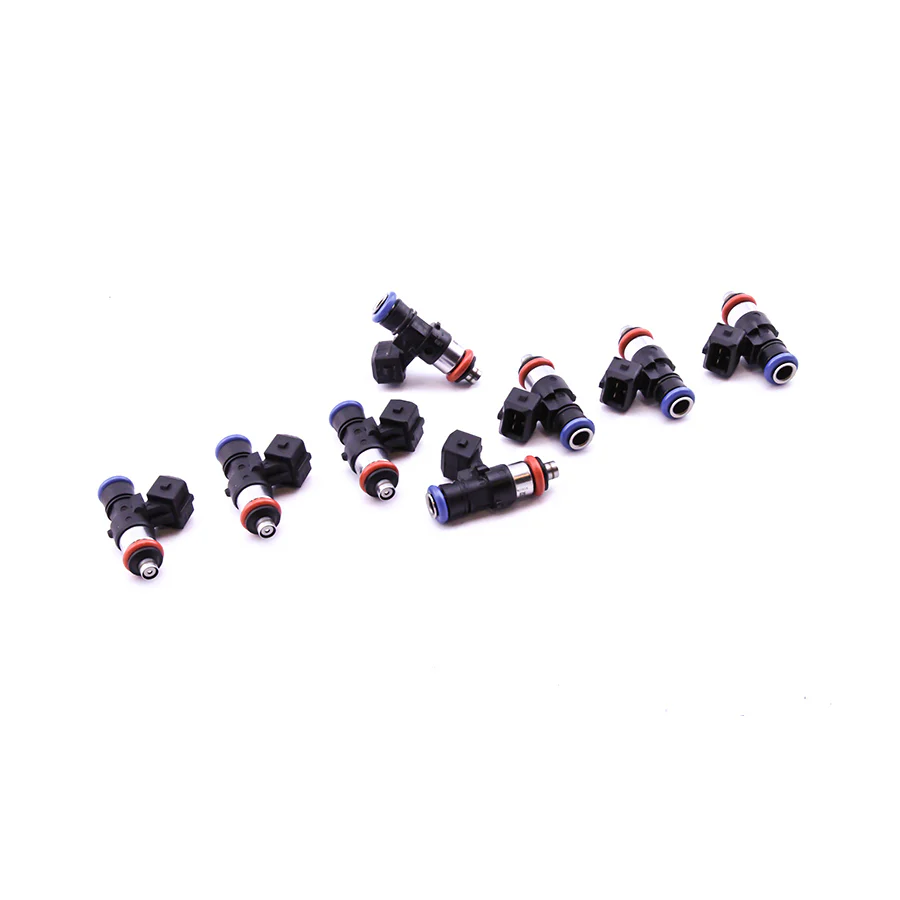

DeatschWerks 16M-22-1500-8 High Flow Fuel Injectors - DV2 1500cc Set of 8

The DeatschWerks 16M-22-1500-8 DV2 Fuel Injectors are a matched set of eight high-performance 1500cc/min fuel injectors designed for GM LS-series applications including Chevrolet Camaro SS, Corvette, Cadillac CTS-V, and Pontiac G8. These injectors incorporate Bosch EV14 technology, widely regarded as the gold standard in electronic fuel injection systems.

Key Features:

• 1500cc/min flow rate (143 lb/hr) at 43.5 PSI (3 bar)
• Set of 8 injectors precision flow-matched to within 1-2%
• 8.5 ohm high impedance coil design
• Bosch EV14 compact body with low-mass injection valves
• Jetronic/Minitimer electrical connector (plug-and-play installation)
• Stainless steel internals for race fuel compatibility
• Fuel pressure range: 40-100 PSI
• Minimum pulse width: 1.1ms, maximum duty cycle: 94%

Race Fuel Compatible: These DV2 injectors feature stainless steel internals that resist corrosion from aggressive fuels including E85 ethanol blends, methanol, MTBE-oxygenated fuels, and leaded gasoline. The advanced EV14 design provides excellent spray pattern and atomization for optimized idle quality and tuning precision.

What's Included: Each set includes 8 flow-matched injectors, O-rings, plug-and-play electrical connectors, and a detailed flow report showing individual injector performance data. All DeatschWerks injectors are flow-tested in-house using their exclusive multi-point dynamic flow testing system and backed by a comprehensive 3-year warranty.

The DV2 line represents DeatschWerks' premium offering for injectors flowing over 1,000cc/min, combining high energy coils, precise ball-and-seat sealing surfaces, and compact housings to deliver maximum flow with the fastest response times for forced induction and high-horsepower applications.
