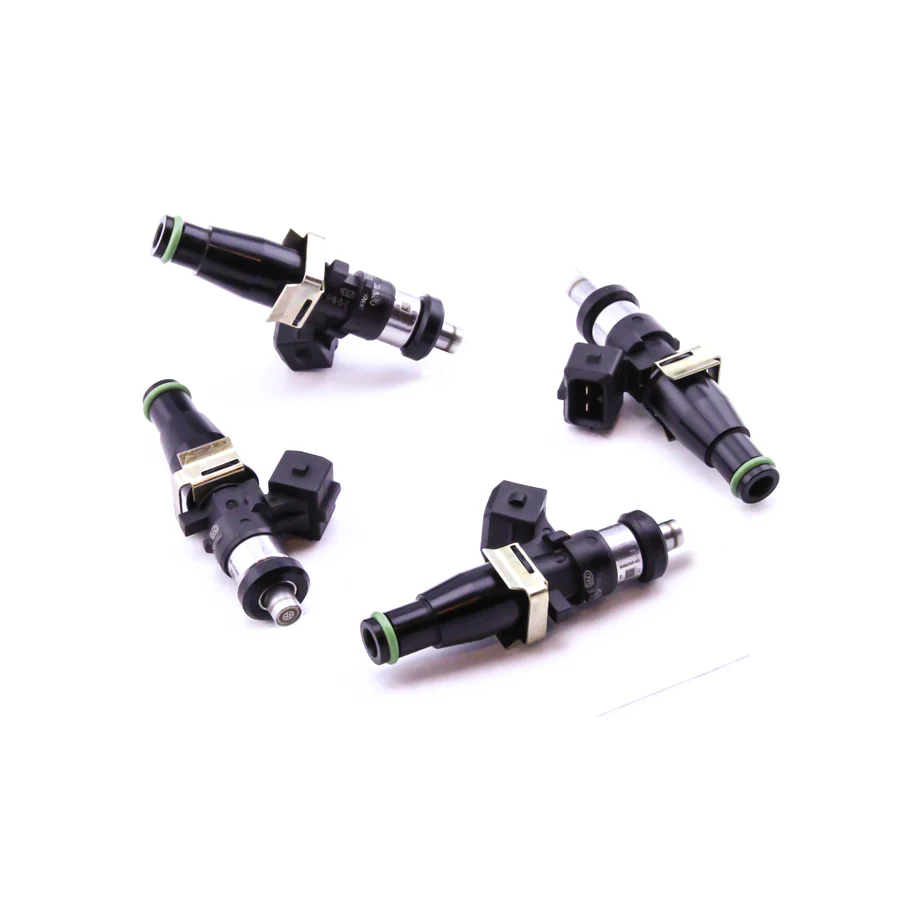

DeatschWerks 16M-09-1500-4 Bosch EV14 1500cc High Impedance Fuel Injectors Set of 4

The DeatschWerks 16M-09-1500-4 is a matched set of four Bosch EV14 1500cc high impedance fuel injectors engineered as a direct drop-in replacement for Mitsubishi Eclipse DSM 4G63T (1995-1999) and Evolution 8/9 4G63T (2003-2006) applications. These high-flow injectors utilize Bosch EV14 compact technology, widely regarded as the gold standard in electronic fuel injection systems.

Key Features:

• Flow rate of 1500cc/min (142 lbs/hr) at 3 bar using SAE testing standards
• Stainless steel internals for full compatibility with race fuels including E85, methanol blends, and MTBE-oxygenated fuels
• Flow balanced to within 1-2% tolerance with flow report included
• Multi-point dynamic flow testing performed in-house on every injector set
• Jetronic/Minitimer connector shape for OEM harness compatibility
• High impedance design (8.5 ohm coil impedance) for stock ECU compatibility
• Fuel pressure range of 40-100 PSI
• Minimum pulse width of 1.1ms with maximum duty cycle of 94%
• Excellent spray pattern and atomization for optimized idle quality and tuning

Each DeatschWerks injector is built using quality OEM cores and undergoes rigorous quality assurance testing with over 40 data points collected per injector. Technical assistance and tuning data are available directly from DeatschWerks to support your build. Backed by a comprehensive 3-year warranty.
