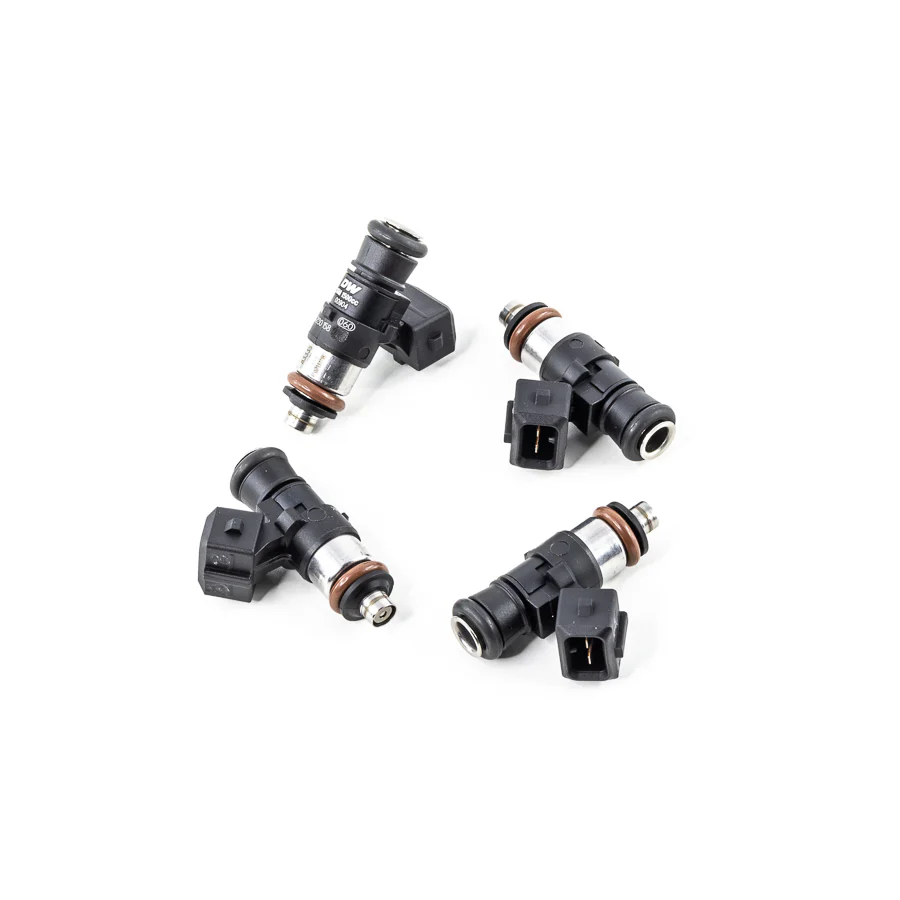

DeatschWerks 16M-03-1500-4 Bosch EV14 1500cc Fuel Injectors Set of 4

The DeatschWerks 16M-03-1500-4 is a matched set of four high-performance Bosch EV14 1500cc fuel injectors designed for Honda and Acura K-series and F-series engines. These injectors utilize Bosch EV14 technology, widely recognized as the gold standard in electronic fuel injection, delivering exceptional performance for high-horsepower applications.

Key Features:

• 1500cc/min flow rate at 3 bar (43.5 psi) for supporting high horsepower builds
• Flow balanced to within 1-2% using DeatschWerks' exclusive multi-point dynamic flow testing
• Includes detailed flow report with each set for precise tuning
• Stainless steel internals for compatibility with all race fuels including E85, methanol blends, and MTBE-oxygenated fuels
• Minitimer/Jetronic connector for direct plug-and-play installation
• Minimum pulse width of 1.1ms with maximum duty cycle of 94%
• 8.5 ohm high impedance coil for compatibility with factory ECU/PCM
• Excellent spray pattern and atomization for optimized idle quality and tuning
• Fuel pressure range: 40-100 psi

Each set is fully characterized in-house via SAE J1832 standards and includes O-rings and plug-and-play clips for easy installation. Backed by a comprehensive 3-year warranty and supported by DeatschWerks' technical assistance and tuning data.
