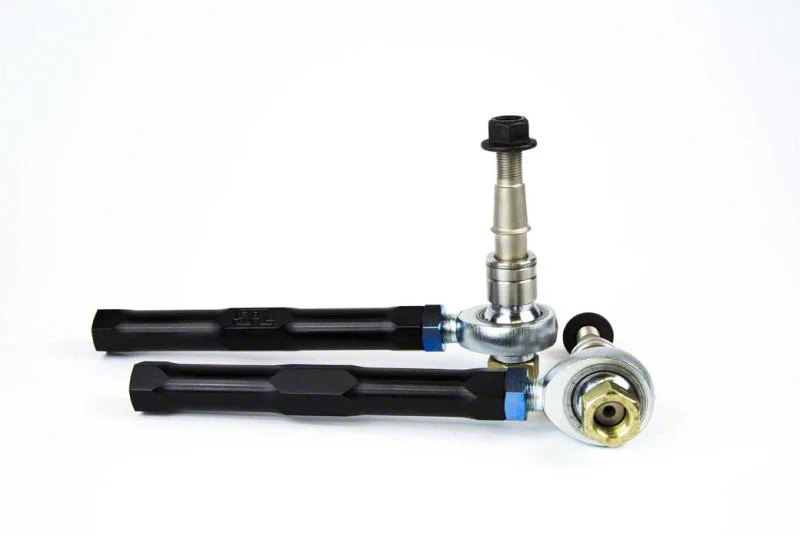

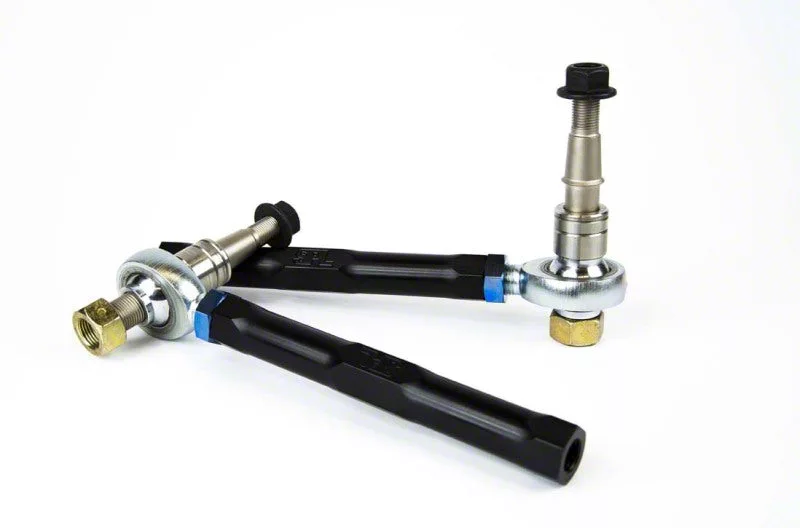

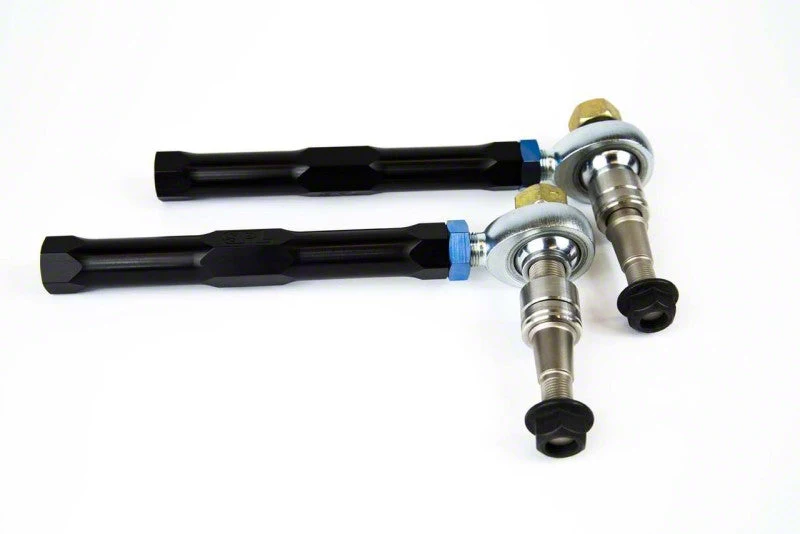

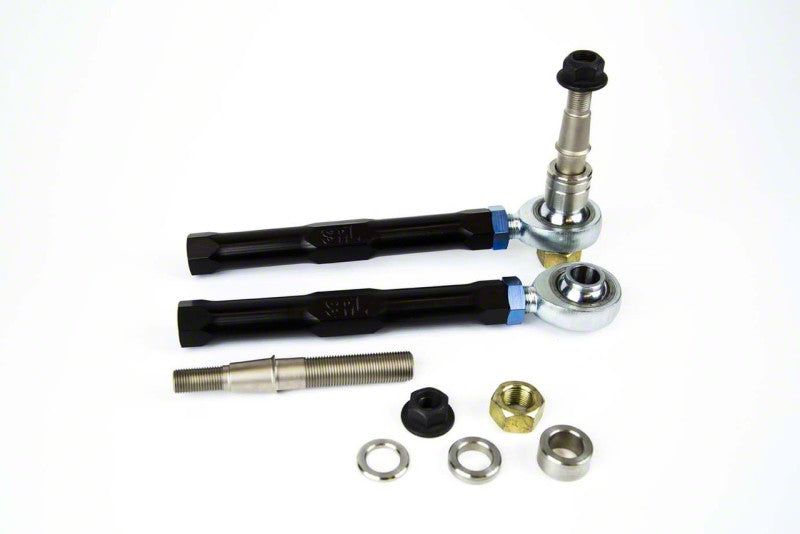

PRO V5 Front Outer Tie Rod Ends

SPL PRO V5 Front Outer Tie Rod Ends allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry. On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending. The tie rod end pivot point is 5-way adjustable from -1/2? to +1/2?.

Precision CNC machined 9310 alloy shanks for 190ksi tensile strength and incredible impact resistance, to take the abuse of drifting. Also features T2024 spacers and buckles for strength/lightweight and QA1 65deg hi-misalignment bearings.

NOTE

• 240SX with stock knuckles: Use with OEM 300ZX (Z32) inner tie rods or Tein 350Z (Z33) inner tie rods only.
• 240SX with modified (increased steering angle) knuckles: Use with S14 inner tie rods (OEM, Tein, Ikeya Formula, etc).
