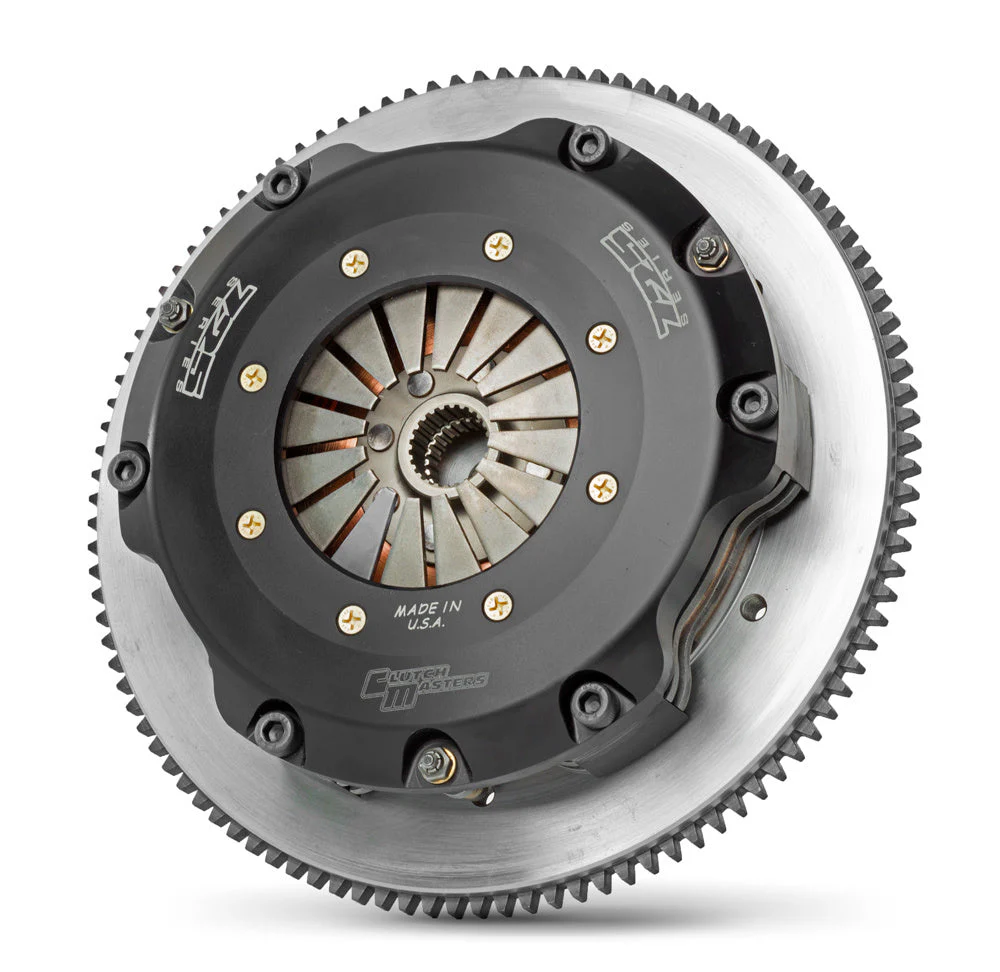

The Clutch Masters FX725 Series Twin Disc Clutch Kit combines pure racing technology with practical performance engineering. This complete clutch system is designed for high-horsepower applications where maximum clamping force and rapid engagement are critical, particularly in drag racing environments.
Race-Engineered Design:
The FX725 utilizes a 7.25-inch (184mm) twin disc configuration specifically engineered for engines and transmissions with smaller bell housings. This compact diameter reduces rotational mass compared to larger clutch assemblies, delivering quicker shifts, improved throttle response, and faster acceleration. The TD7R race specification features two rigid ceramic discs that provide aggressive engagement and maximum holding capacity for serious competition use.
Billet Aluminum Construction:
The cover assembly is precision-machined from billet aluminum and Type 3 hard anodized for exceptional durability. This manufacturing process delivers approximately 25% more tensile strength than cast units used by competitors, while virtually eliminating flex under load. With only 0.003 inches of flex compared to 0.030 inches in cast or stamped units, the billet cover ensures consistent, confident clutch operation at high RPM and under extreme conditions.
Steel Flywheel Included:
This kit includes a lightweight steel flywheel machined from 1045 billet cores with black oxide treatment for rust prevention. The steel construction provides excellent heat dissipation and durability for racing applications while maintaining reduced rotational mass for improved performance.
Key Features:
- 7.25-inch twin disc race clutch with two rigid ceramic discs
- Billet aluminum cover assembly with Type 3 hard anodizing
- Lightweight steel flywheel with black oxide treatment
- 50% increase in pedal pressure compared to stock (race-oriented)
- Designed for high-horsepower drag racing applications
- Reduced rotational mass for faster acceleration and response
- Positive release characteristics for high-RPM staging and shifting
- Minimal cover flex for consistent engagement
Complete Kit Includes:
- Billet aluminum cover assembly with attached diaphragm
- Pressure plate ring
- Two ceramic rigid discs
- Mid plate
- Steel flywheel
- Release bearing
- Pilot bearing (when applicable)
- Pressure plate bolts
Important Application Note:
The FX725 Race configuration is engineered primarily for drag racing and competition use. Due to the aggressive ceramic disc material and race-oriented engagement characteristics, this clutch is not recommended for daily street driving. The significantly increased pedal effort and rigid engagement make it best suited for dedicated race vehicles or track-only applications.
