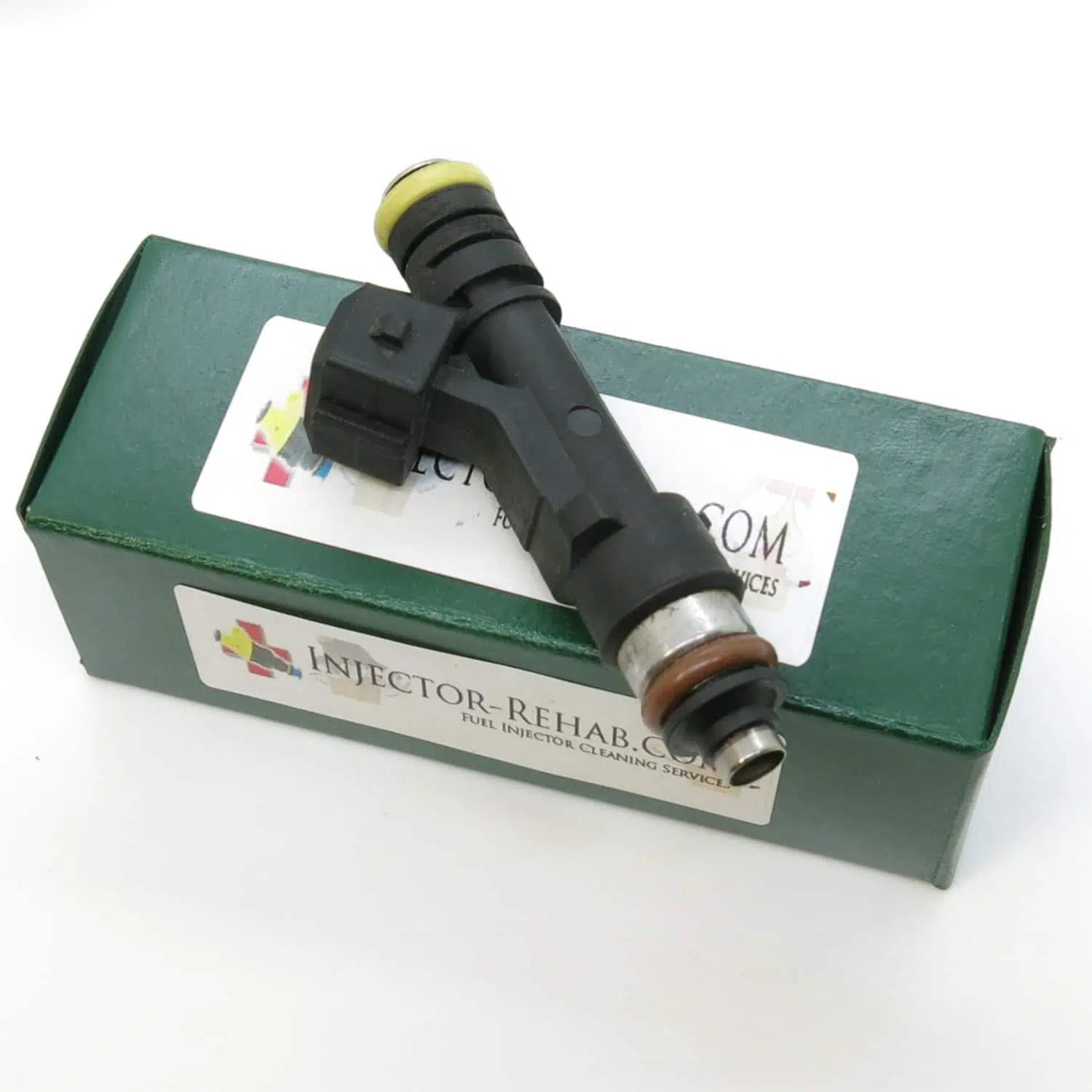

The Bosch 0280158827 is a high-performance NGI-2 (Natural Gas Injector, Generation 2) fuel injector designed primarily for compressed natural gas (CNG) applications. This genuine Bosch EV14-Long injector delivers exceptional flow capacity of 1700cc/min (160 lb/hr) at 43.5 PSI, making it a popular choice for high-performance engine builds and alternative fuel conversions.
Key Specifications:
- Flow Rate: 1700 cc/min (160 lb/hr) at 43.5 PSI (3 bar)
- Coil Resistance: 9.1 Ohms (High Impedance)
- Dead Time: 0.45ms at 14 volts
- Connector Type: Bosch EV1 (Jetronic/Minitimer)
- Injector Length (O-ring to O-ring): 62-64.5mm (approximately 2.5 inches)
- Overall Length: 74-77.5mm (approximately 3.0 inches)
- Body Diameter: 15.2-16mm
- O-rings: 14mm Viton (included)
- Spray Pattern: 4-hole conical nozzle (approximately 30 degrees)
Fuel Compatibility:
- Primary Application: Compressed Natural Gas (CNG) - Bosch's intended use
- Alternative Fuels: Many users successfully run these injectors with gasoline/petrol, alcohol/methanol, and E85 ethanol blends
- NOT Compatible: Fuels containing MTBE (Methyl Tertiary-Butyl Ether), including VP Q16 and VP Import racing fuels
This injector features high impedance design for compatibility with most stock ECU systems without requiring resistor boxes. The EV1 connector is widely used across GM, Ford, Volkswagen, and many other manufacturers, making this an excellent upgrade option for performance applications requiring increased fuel delivery.
Cross-Reference Numbers: Replaces Bosch 0280150525, 0280150563, 0280150837, 0280150842, 0280150844; OEM equivalents include Chrysler 53030518AB, Dodge 53030518AB, Fiat 55205494/55232334, VW 06A906039A, Iveco 504293566, MAN 51131150038, and Opel 9270291.
Note: While Bosch designates this injector specifically for CNG use, it is commonly adapted for gasoline and ethanol applications in the performance community. Users assume responsibility when operating outside manufacturer specifications.
