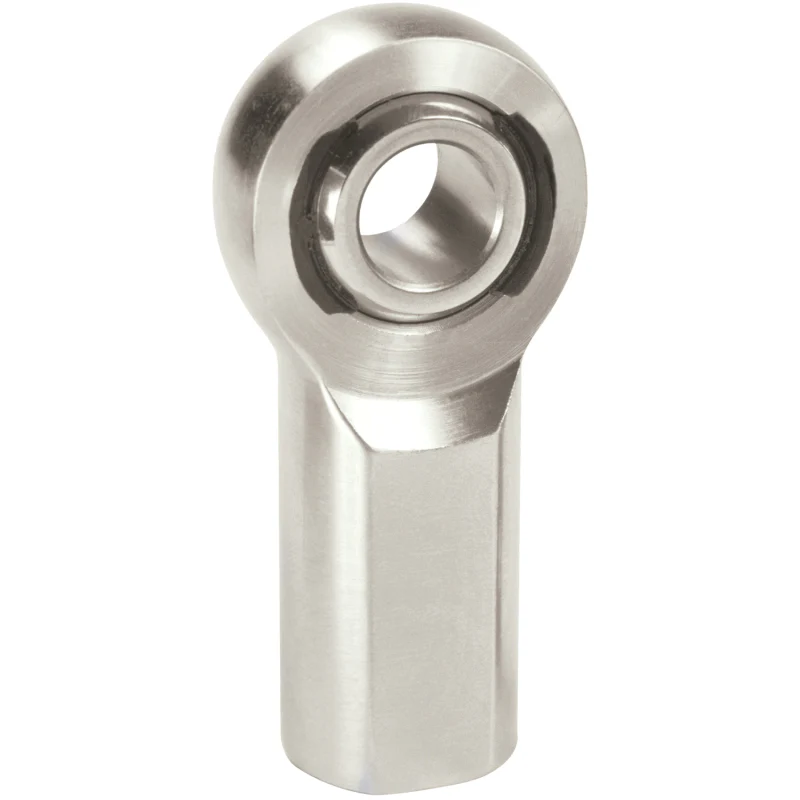

QA1 Precision Products XFR12 XF Series Chromoly Female Rod End 3/4in Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XFR12
12 reviews
Sale Price

$31.90

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XFR12 is a high-performance chromoly steel female rod end from the XF Series, engineered for ultimate strength and durability in demanding motorsports applications. Part of QA1's innovative Endura Racing Series featuring loaded slot design, this rod end is commonly used on 4-link suspension systems, ladder bars, and other heavy-duty applications where reliability is critical.

Key Features:

  • 3/4 inch bore diameter with 3/4-16 right hand female thread
  • Heat-treated chromoly steel body with protective coating for corrosion resistance
  • 52100 bearing steel ball that is heat treated, hard chrome plated, and precision ground
  • Reinforced Nylon 12 injection molded race with self-lubricating PTFE liner
  • Completely self-sealing and self-lubricating design keeps dirt and debris out
  • Metal-to-metal support for heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • 0.875 inch ball width and 0.687 inch housing width

Advanced Loaded Slot Design:

The XF Series utilizes QA1's proprietary loaded slot technology where the body is machined with a significant groove around the interior, the ball is inserted, and then a PTFE/Nylon material is injection molded into place. This design provides superior strength and longevity compared to traditional three-piece rod ends, as the injection molded race won't pound out like conventional PTFE liners. The self-sealing nature eliminates the need for external boots while maintaining smooth operation under both heavy shock loads and low load conditions.

Ideal for racers and performance enthusiasts who demand the ultimate in rod end performance and reliability.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.69

B (+0.0015/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.75

D (+/-0.010)

1.75

E (+/-0.010

1.125

F (+/-0.010)

1

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

14

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

28,081 lbs.

Rod End Static Load Capacity (lbs)

28,081 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

3/4-16 RH in.

T (+/-0.005)

0.687

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-2B

3/4 -16

UTL Radical Static

28081

W (+/-0.005)

0.875

Title

QA1 Suspension Rod End Bearing XFR12
