QA1 EXMR6 EXM Series Carbon Steel Male Rod End

Manufacturer

Part Number

EXMR6

7 reviews

Sale Price

$9.00

In Stock (10+)

Usually delivered within 2 days

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 EXMR6 EXM Series Carbon Steel Male Rod End

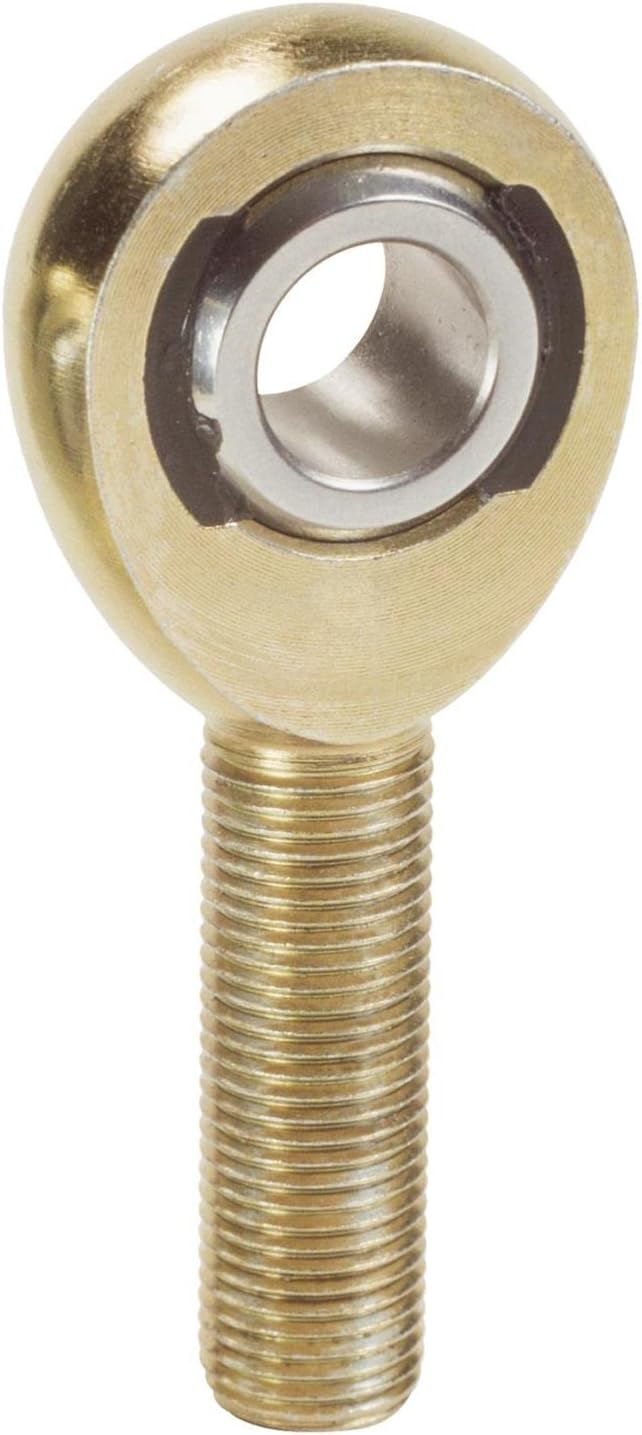

Picture of QA1 EXMR6 EXM Series Carbon Steel Male Rod End

QA1 EXMR6 EXM Series Carbon Steel Male Rod End — image 1

QA1 EXMR6 EXM Series Carbon Steel Male Rod End — image 2

Product Details

The QA1 EXMR6 is a male carbon steel rod end from QA1's EXM Endura Series, offering an economical alternative to chromoly without sacrificing performance. This loaded slot style rod end features QA1's exclusive design with increased cross-sectional thickness for greater tensile strength and metal-to-metal support for heavy shock loads.

Endura Series Technology:

The body is machined with a precision groove around the interior, and a Nylon/PTFE material is injection molded to create a self-sealing, self-lubricating race. This innovative design keeps dirt and debris out while providing superior wear resistance that won't pound out like traditional PTFE liners, significantly extending service life.

Ball Specifications:

52100 bearing steel construction
Heat treated for maximum strength
Hard chrome plated for wear resistance
Precision ground for smooth operation

Race Features:

Nylon/PTFE injection molded material
Self-lubricating operation
Self-sealing design keeps contaminants out

Body Construction:

Carbon steel or alloy steel (manufacturer's option)
Protective coating for corrosion resistance
Increased cross-sectional thickness for superior tensile strength

Key Benefits:

Cost-effective alternative to chromoly steel rod ends
Metal-to-metal support handles heavy shock loads
Maintenance-free operation
Ideal for suspension linkages, steering components, and chassis applications

Products specifications

A (+/-0.015)

1.938

Approx Bearing Weight

0.11

B (+0.0015/-0.0005)

0.375

Ball Dia Ref

0.719

C (+0.062/-0.031)

1.25

D (+/-0.010)

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

1.938 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.500 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

3,915 lbs.

Rod End Static Load Capacity (lbs)

3,915 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

3/8-24 RH in.

T (+/-0.005)

0.406

Thread Length

1.250 in.

Thread Type

Right Hand

Thread UNF-3A

3/8 -24

UTL Radical Static

3915

W (+/-0.005)

0.5

Title

QA1 Suspension Rod End Bearing EXMR6
