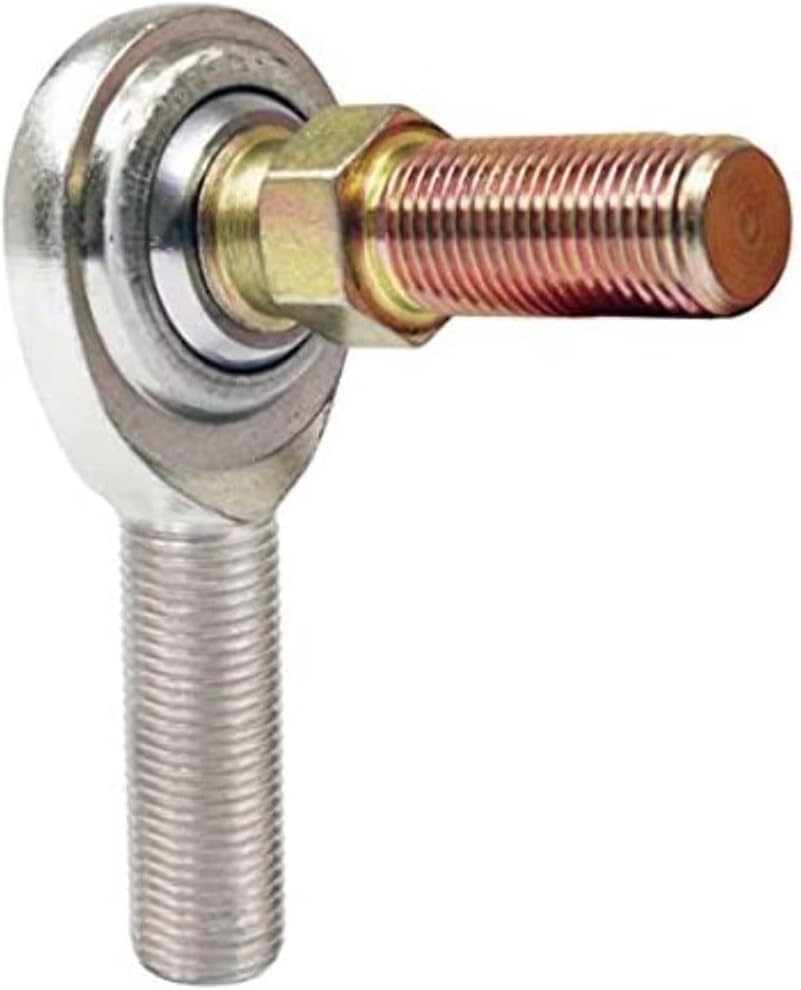

QA1 GML4T Stainless Steel Male Rod End with PTFE Liner

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

GML4T
12 reviews
Sale Price

$12.45

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 GML4T is a GM-T Series stainless steel male rod end featuring a 2-piece economy design with PTFE liner for self-lubrication. This rod end combines exceptional corrosion resistance with a polished appearance, making it ideal for applications where both performance and aesthetics matter.

Construction and Design:

The GML4T utilizes a simplified 2-piece mohawk design consisting of only the ball and body. The body is swaged around the ball on each side to secure it in place, then loosened to allow proper articulation. This economical design is well-suited for light to medium duty applications requiring reliable angular movement.

Ball Specifications:

  • 440C stainless steel construction
  • Heat treated for increased strength and wear resistance
  • Precision ground to tight tolerances
  • Corrosion resistant finish

Body Specifications:

  • 300 series stainless steel construction
  • PTFE (Teflon) liner for self-lubrication and reduced friction
  • Can be polished for enhanced appearance
  • Superior corrosion resistance compared to carbon steel

Key Benefits:

  • Self-lubricating PTFE liner reduces maintenance requirements
  • Stainless steel construction provides excellent corrosion resistance
  • Polishable finish for custom and show-quality builds
  • Available in both metric and inch dimensions
  • Offered in right and left hand thread configurations

The QA1 GM-T Series is perfect for suspension linkages, steering components, throttle linkages, and other applications where a durable, low-maintenance rod end with superior appearance is required. The stainless steel construction makes it particularly well-suited for marine environments, show vehicles, or any application where rust and corrosion are concerns.

Products specifications

A (+/-0.015)

1.562

Approx Bearing Weight

0.04

B (+0.0015/-0.0005)

0.25

Ball Dia Ref

0.5

C (+0.062/-0.031)

1

D (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

27

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.375 in.

Rod End Centerline Length

1.562 in.

Rod End Construction

2-piece

Rod End Finish

Natural

Rod End Head Bore Size

0.250 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.375 in.

Rod End Material

Stainless steel

Rod End Misalign Angle (degrees)

27 degrees

Rod End Static Load Capacity

2,165 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

1/4-28 LH in.

Thread Length

1.000 in.

Thread Type

Left Hand

Thread UNF-3A

1/4 -28

UTL Radical Static

2165

W (+/-0.005)

0.375
