QA1 PCYMR8T PCYM-T Series High Misalignment Rod End

Manufacturer

Part Number

PCYMR8T

5 reviews

Sale Price

$14.88

In Stock (10+)

Usually delivered within 2 days

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 PCYMR8T PCYM-T Series High Misalignment Rod End

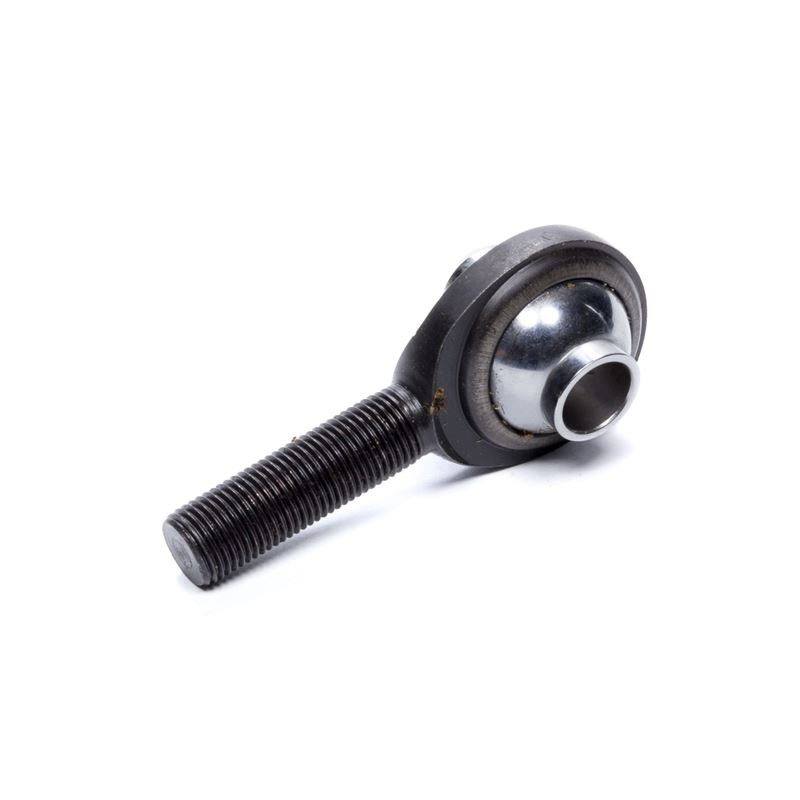

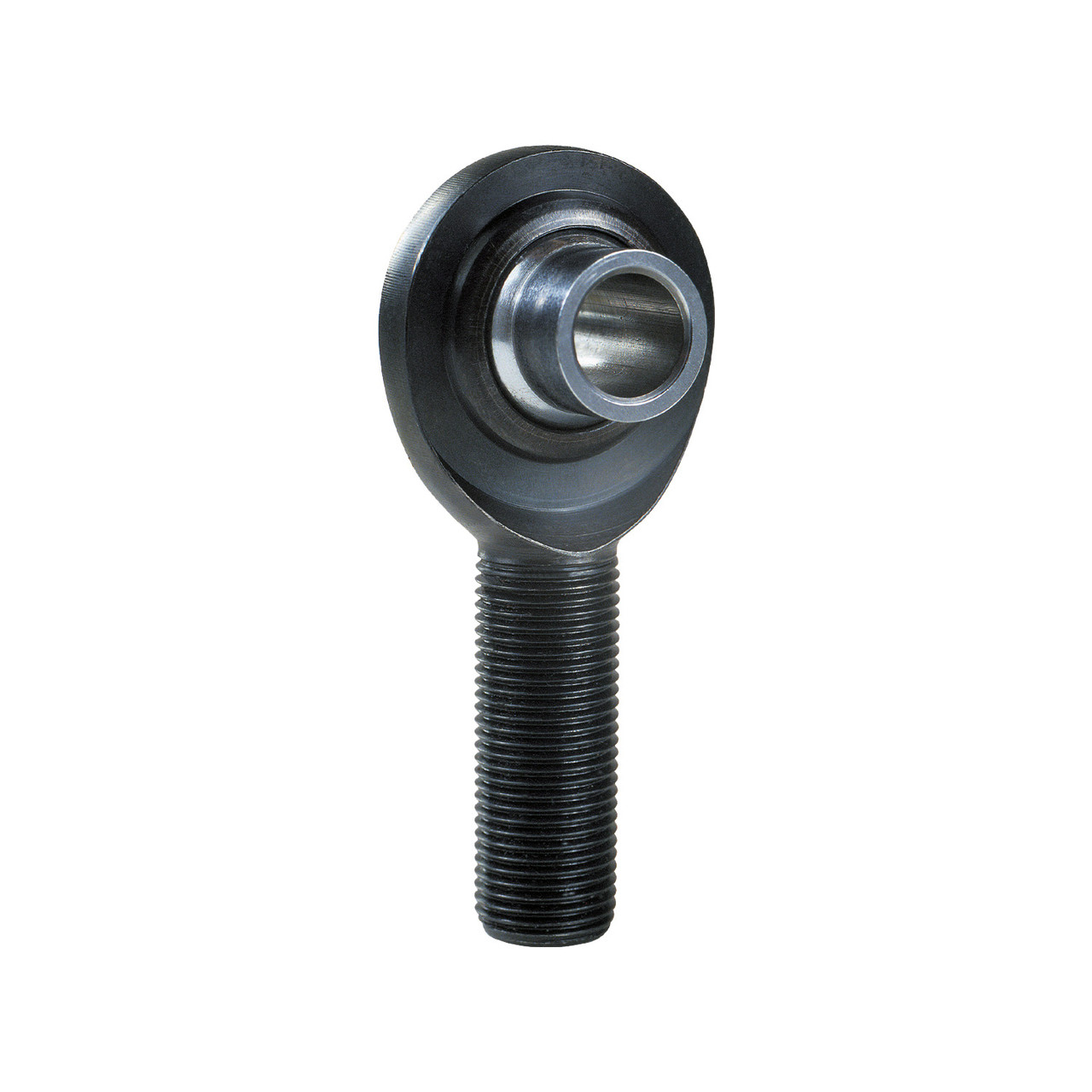

Picture of QA1 PCYMR8T PCYM-T Series High Misalignment Rod End

QA1 PCYMR8T PCYM-T Series High Misalignment Rod End — image 1

QA1 PCYMR8T PCYM-T Series High Misalignment Rod End — image 2

QA1 PCYMR8T PCYM-T Series High Misalignment Rod End — image 3

Product Details

The QA1 PCYMR8T is a high-performance chromoly steel rod end designed for demanding applications requiring exceptional misalignment capability. This 2-piece economy-style rod end features a 1/2-inch bore with 1/2-20 right-hand male threads and offers up to 65 degrees of misalignment—the highest available in the industry.

Key Features:

1/2-inch bore diameter with 1/2-20 RH male threads
65-degree misalignment angle for extreme articulation
16,240 lbs static load capacity
Self-lubricating PTFE liner for maintenance-free operation
Heat-treated chromoly steel body with zinc coating
52100 bearing steel ball, heat-treated and hard chrome plated
1.625-inch thread length
1.5-inch head diameter with 1.25-inch width

The PCYM-T Series construction features only two components—the ball and body—with the body swaged around the ball for a secure, economical design. The precision-ground, hard chrome plated ball provides exceptional wear resistance, while the PTFE liner eliminates the need for grease fittings. This rod end is ideal for suspension linkages, steering components, and racing applications where high articulation and strength are critical.

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.33

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.625

D Ref

1.5

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.250 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

1.250 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

65 degrees

Rod End Static Load Capacity

16,240 lbs.

Rod End Static Load Capacity (lbs)

16,240 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

1/2-20 RH in.

Thread Length

1.625 in.

Thread Type

Right Hand

Thread UNF-3A

1/2 -20

UTL Radical Static

15038

W (+/-0.005)

1.25

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Title

QA1 Suspension Rod End Bearing PCYMR8T
