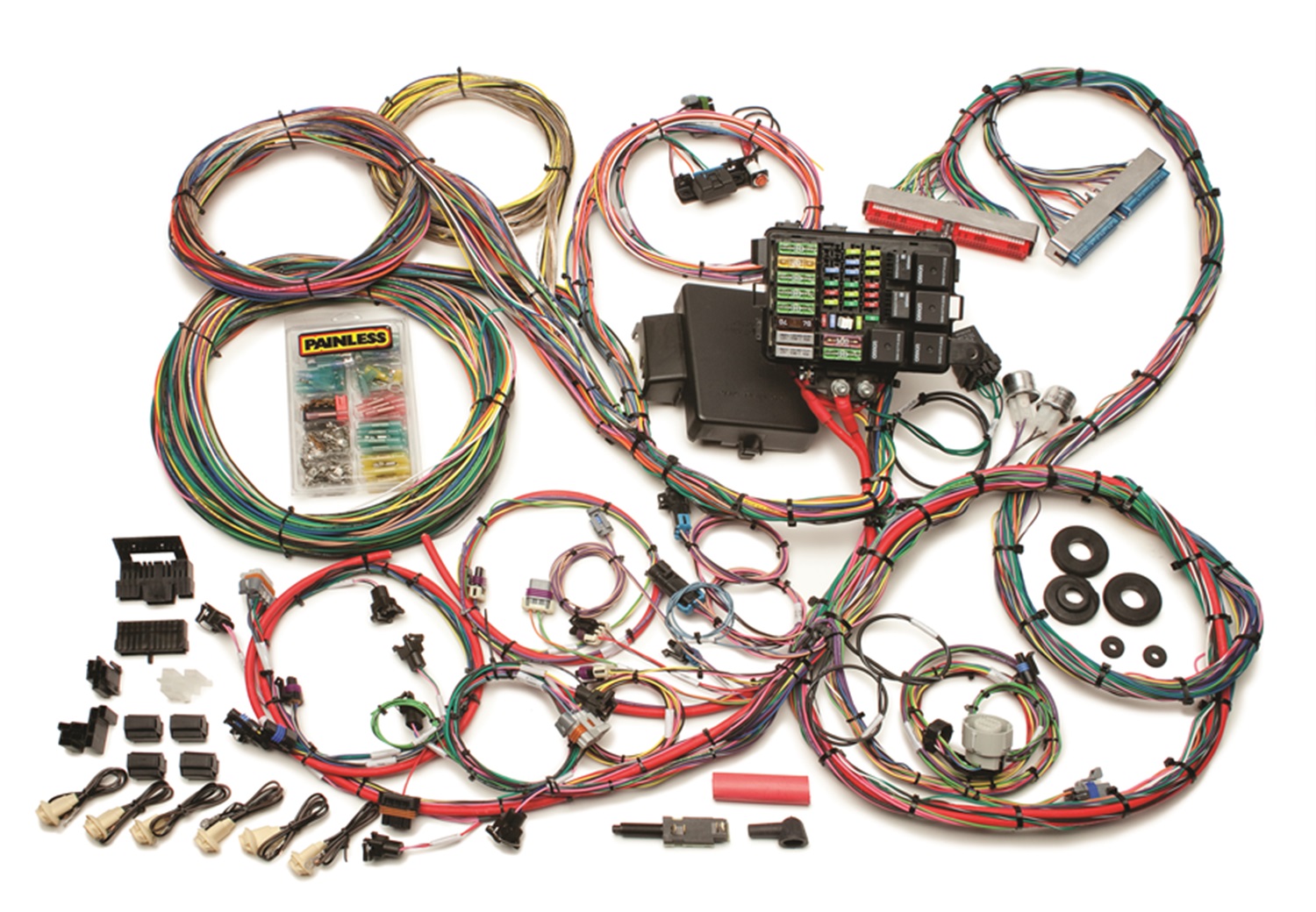

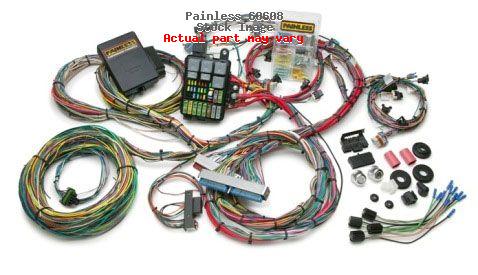

The Painless Wiring 60608 is a comprehensive integrated EFI/chassis wiring harness designed specifically for complete vehicle rewiring projects combined with GM Gen III LS1 fuel-injected engine swaps. This complete solution is engineered for 1997-2004 LS1 engines paired with 4L60E transmissions, combining both chassis and fuel injection wiring into a single, fully integrated system.
Integrated Design Benefits:
- 26-circuit/7-relay fuse block consolidates all electrical functions in one location
- Eliminates the need for separate fuel injection fuses and relays
- GM color-coded chassis connections match Painless 10201 kit standards
- Labeled fuel injection connections consistent with Painless 60508 harness series
- All required terminals and connectors included for straightforward installation
Complete Chassis Circuits: A/C and heat, accessory/cigarette lighter, backup lights, brake lights, charging system, cruise control, courtesy and dome lights, electric fuel pump, emergency flashers, dual cooling fan relays, fused power source, headlights, horn relay, ignition coil, instrument panel lighting and gauges, park lights, power antenna, power door locks, power windows, radio/clock (constant and switched power), starting system, tail lights, third brake light, turn signals, and wipers.
Fuel Injection System Connections: A/C compressor, alternator, cam position sensor, coolant temperature gauge, crank position sensor, data link connector (DLC), driver and passenger front O2 sensors, engine coolant temperature sensor, fuel pump relay, grounds, idle air control (IAC), ignition coils, ignition switch signal, fuel injectors, intake air temperature sensor, knock sensors, malfunction indicator lamp (MIL), MAP sensor, mass airflow sensor, oil pressure gauge, ECM/PCM, PRNDL switch, starter, tachometer, throttle position sensor, transmission control, vehicle speed sensor, and VSS output for speedometer.
Important Compatibility Notes: This harness requires a mechanical throttle body and does not support flex fuel (E85) engines. Designed for traditional cable-operated throttle systems only.
