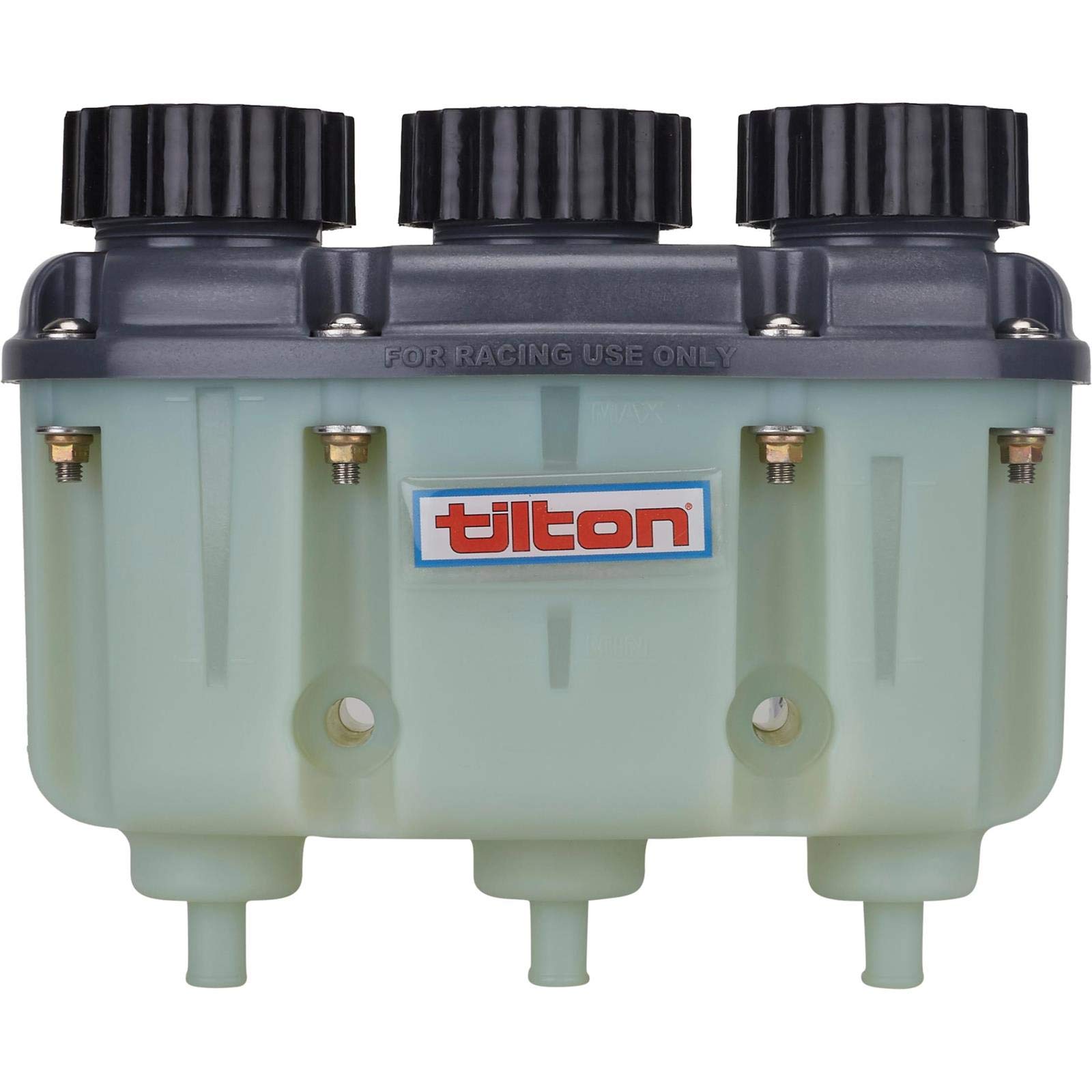

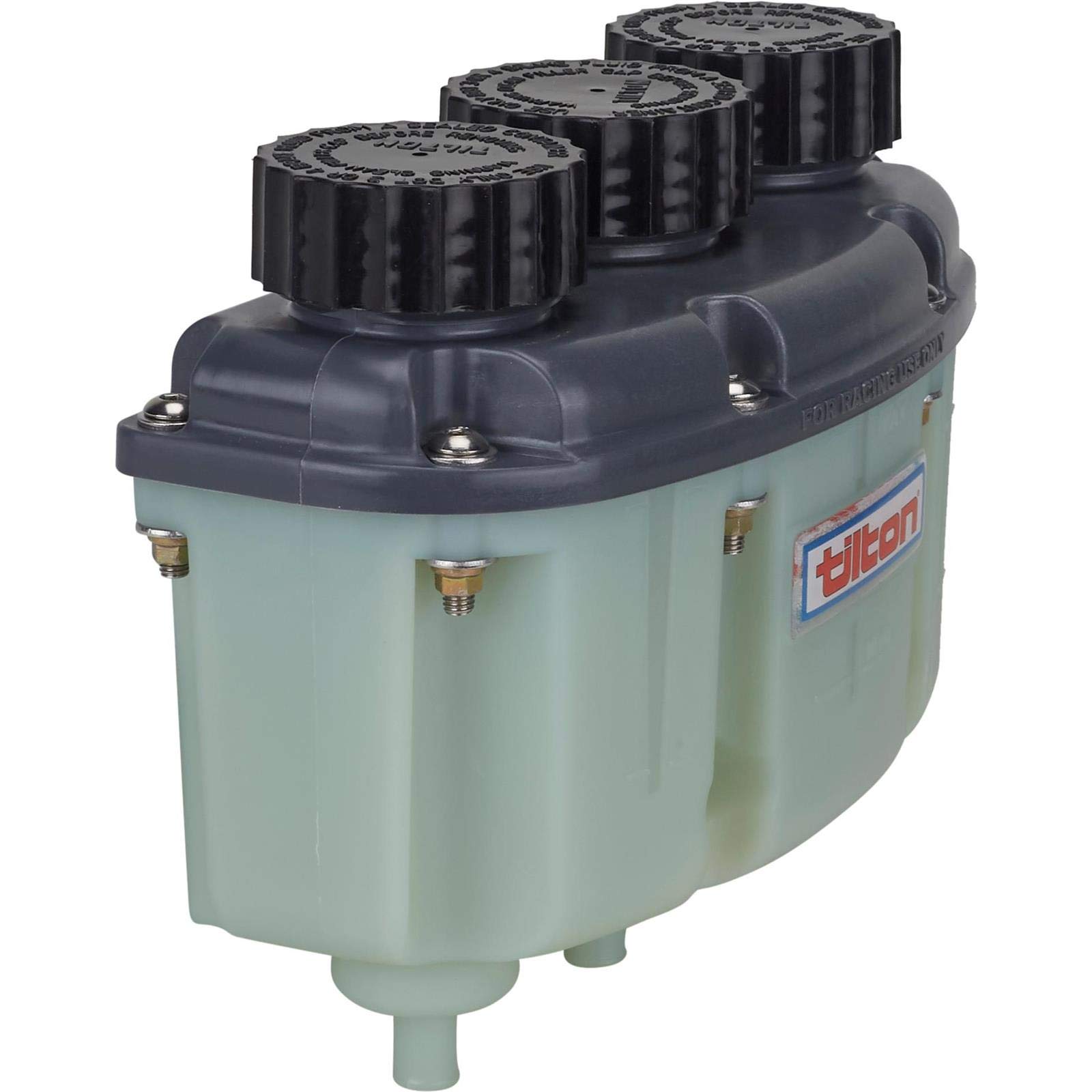

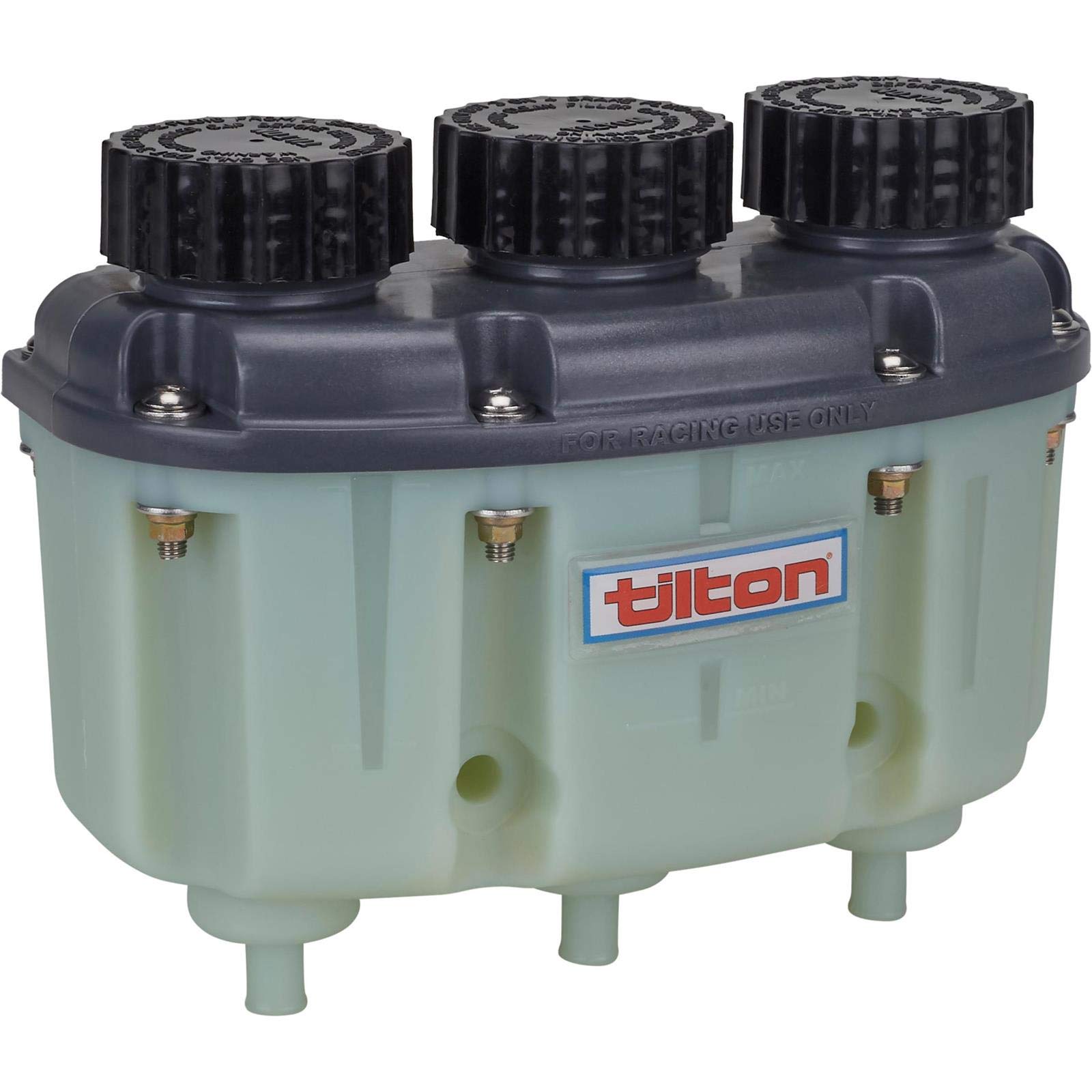

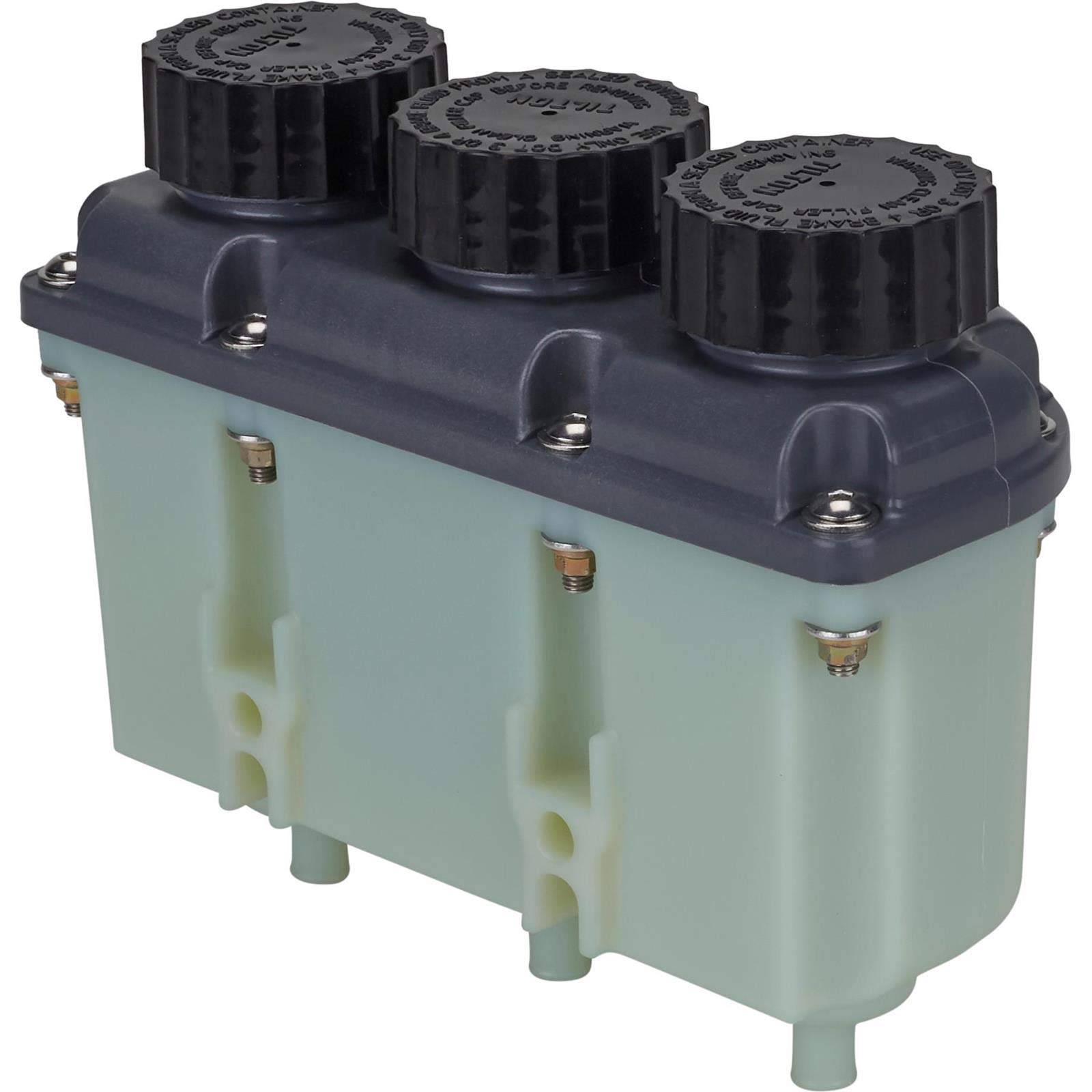

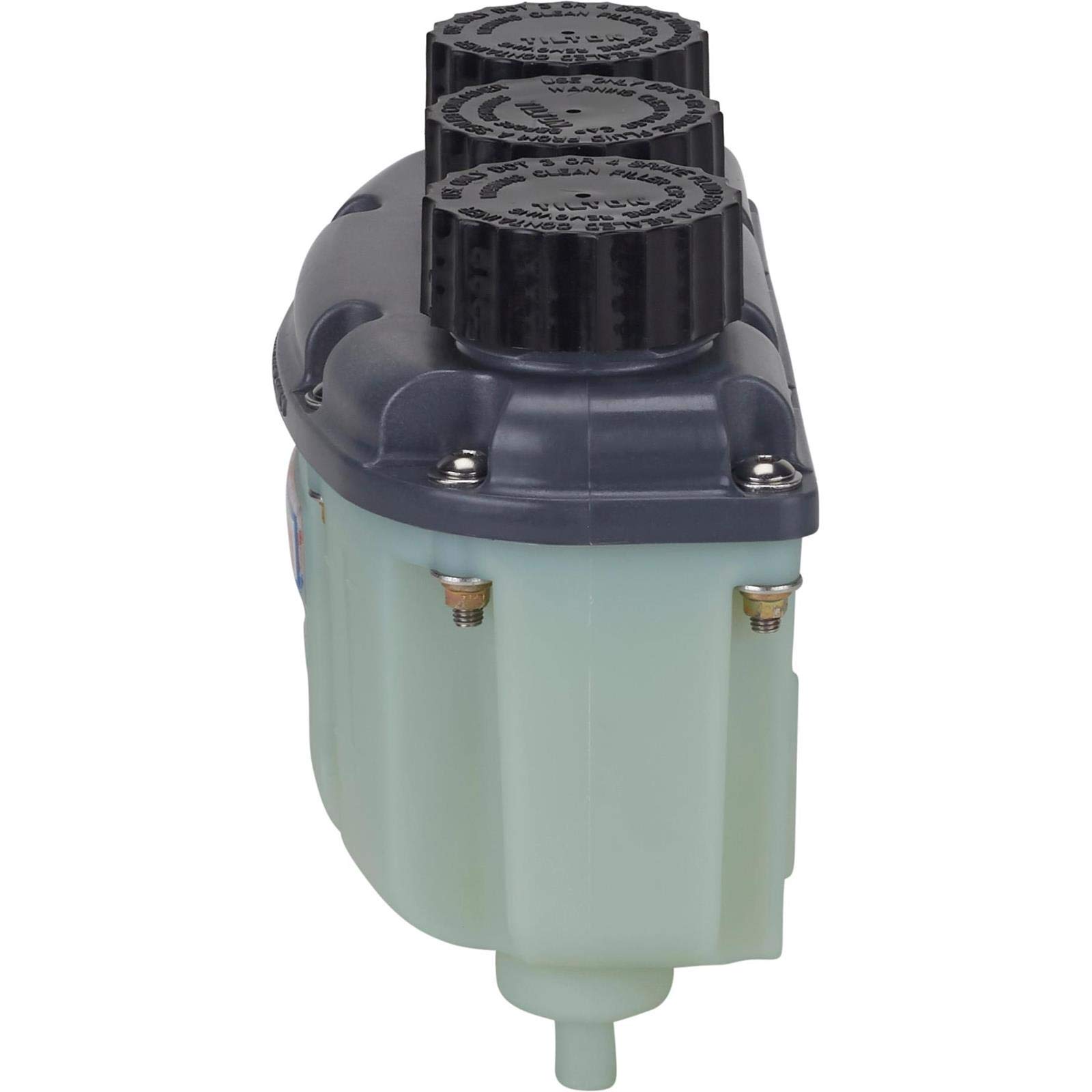

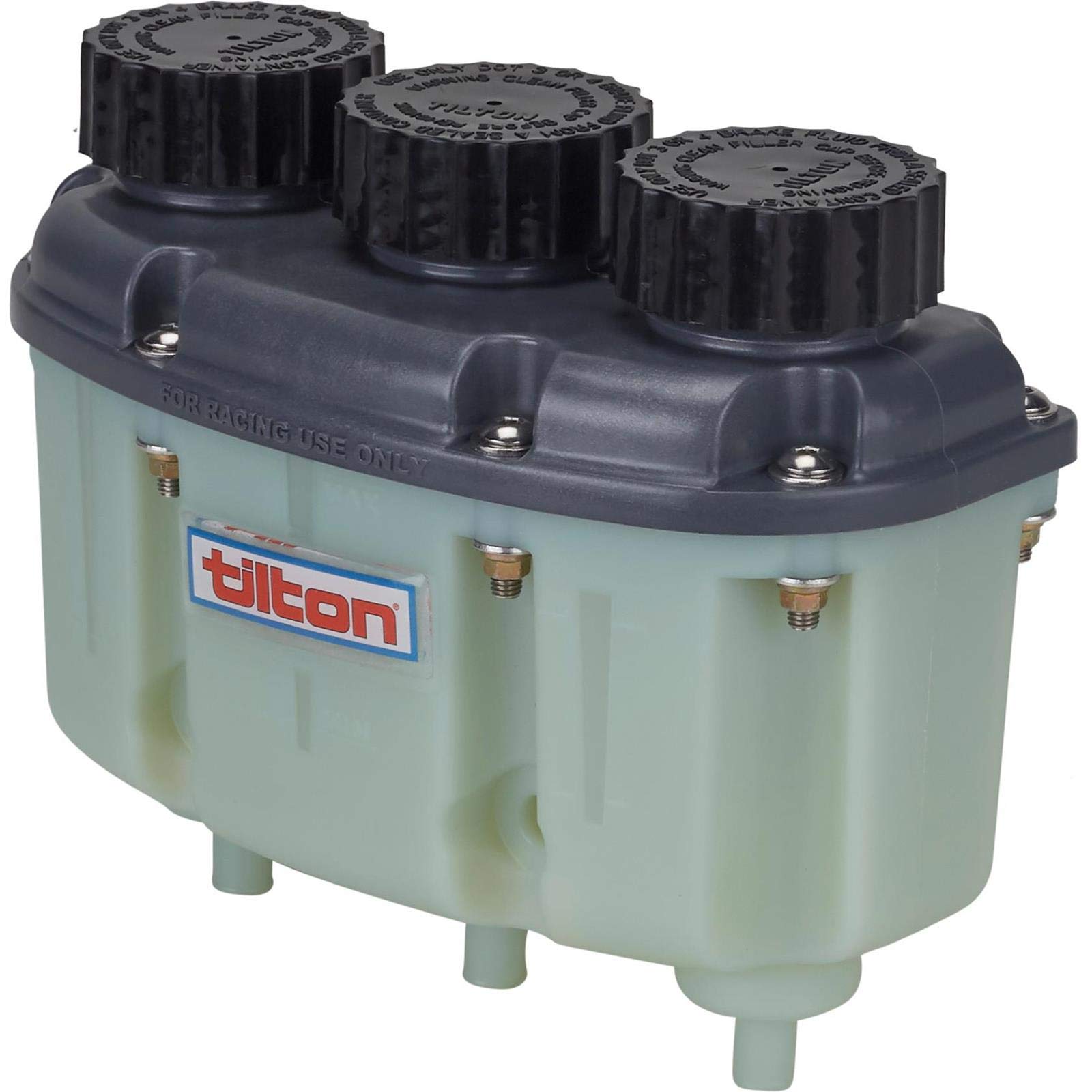

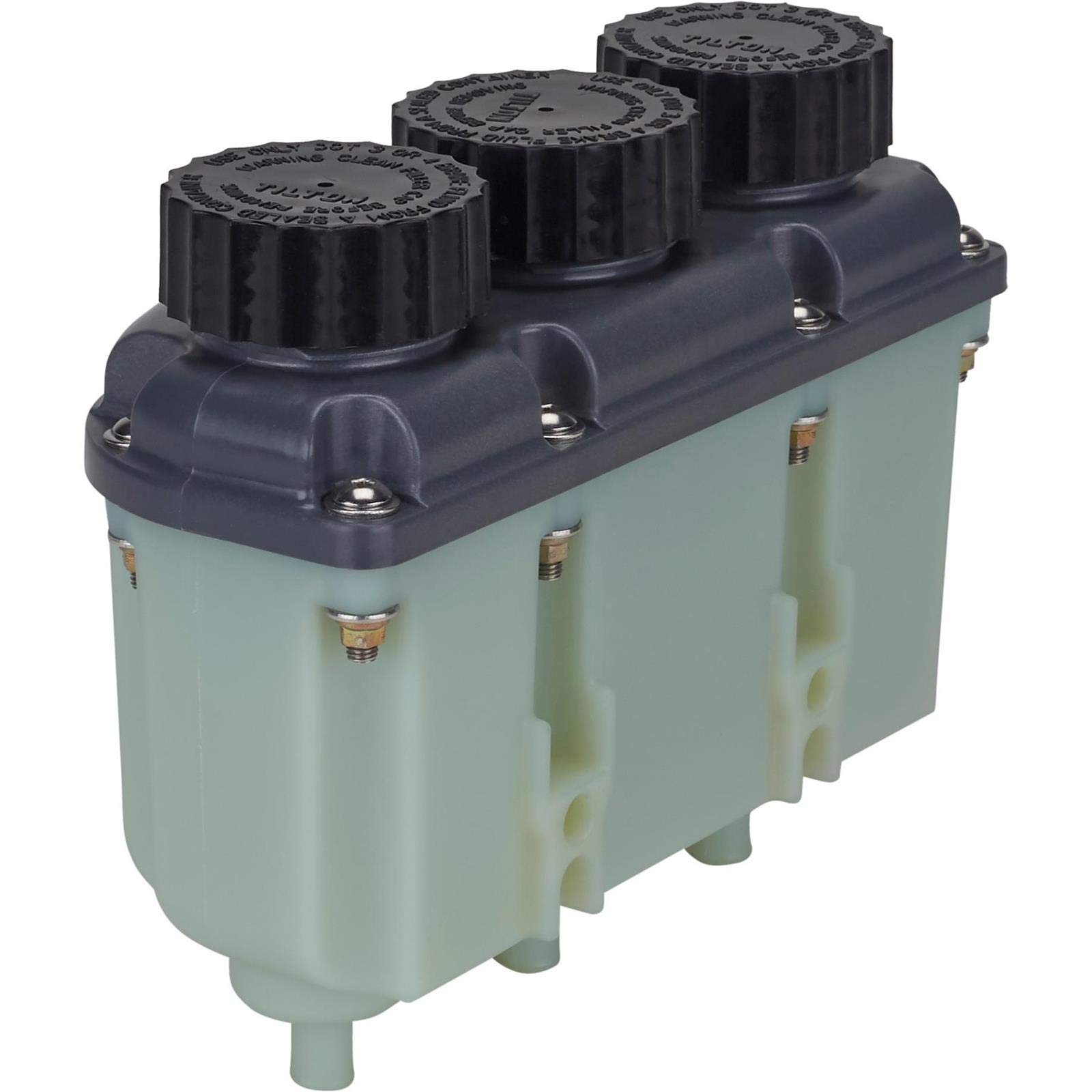

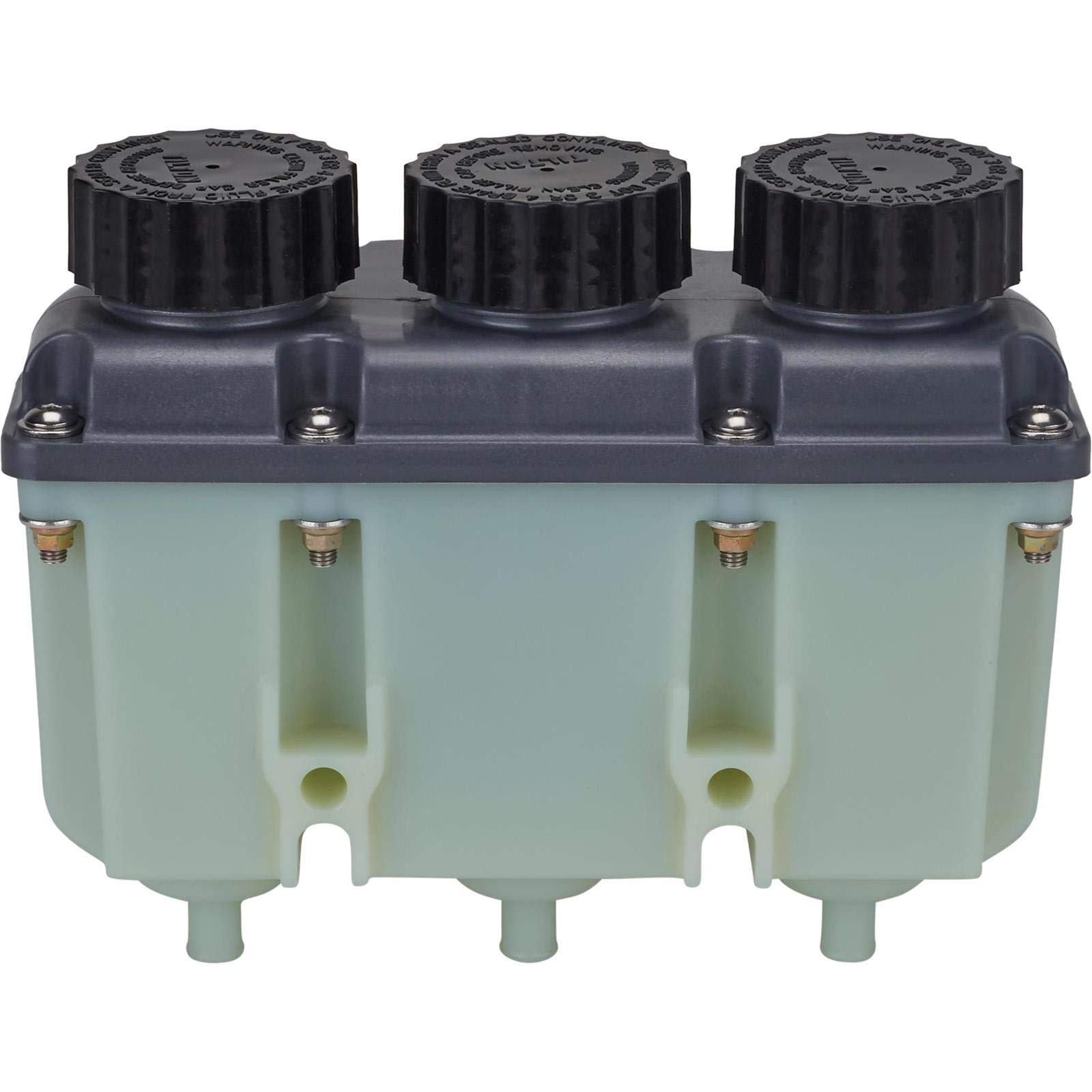

Tilton Engineering 72-576 3-Chamber Plastic Master Cylinder Reservoir Push-On

The Tilton Engineering 72-576 is a 3-chamber plastic master cylinder reservoir that combines three separate reservoirs into one convenient, space-saving package. This value-packed reservoir incorporates many features found in Tilton's billet aluminum version at a price that meets most budgets, making it an ideal choice for racers and performance enthusiasts looking to eliminate multiple separate reservoirs.

Key Features:

• Constructed from fiberglass reinforced nylon material for exceptional strength and durability
• Three separate internal chambers with capacities of 9.8 oz (front brake), 6.3 oz (rear brake), and 4.0 oz (clutch)
• Independent chamber design allows complete evacuation of one reservoir without affecting the other two
• Gasket-sealed removable lid for easy cleaning and maintenance
• Integrated screens in lid prevent foreign objects from falling into reservoir
• Leak-proof baffle design ensures fluid remains contained during aggressive driving
• Convenient fluid level indicator windows for quick visual inspection
• Push-on hose barb outlets (1/4 inch) for easy installation
• 2-hole mounting design provides simple installation onto firewall or bulkhead
• White/yellow color for high visibility

Specifications:

• Total capacity: 20.1 oz
• Dimensions: 6 inches tall x 7.25 inches wide x 3.25 inches deep
• Mounting holes: 6mm or 1/4 inch
• Hose type required: PTFE, EPDM, or SBR hose must be used

This reservoir eliminates the need for three separate units in brake and clutch hydraulic systems, providing consistent and reliable performance in a compact, affordable package.
