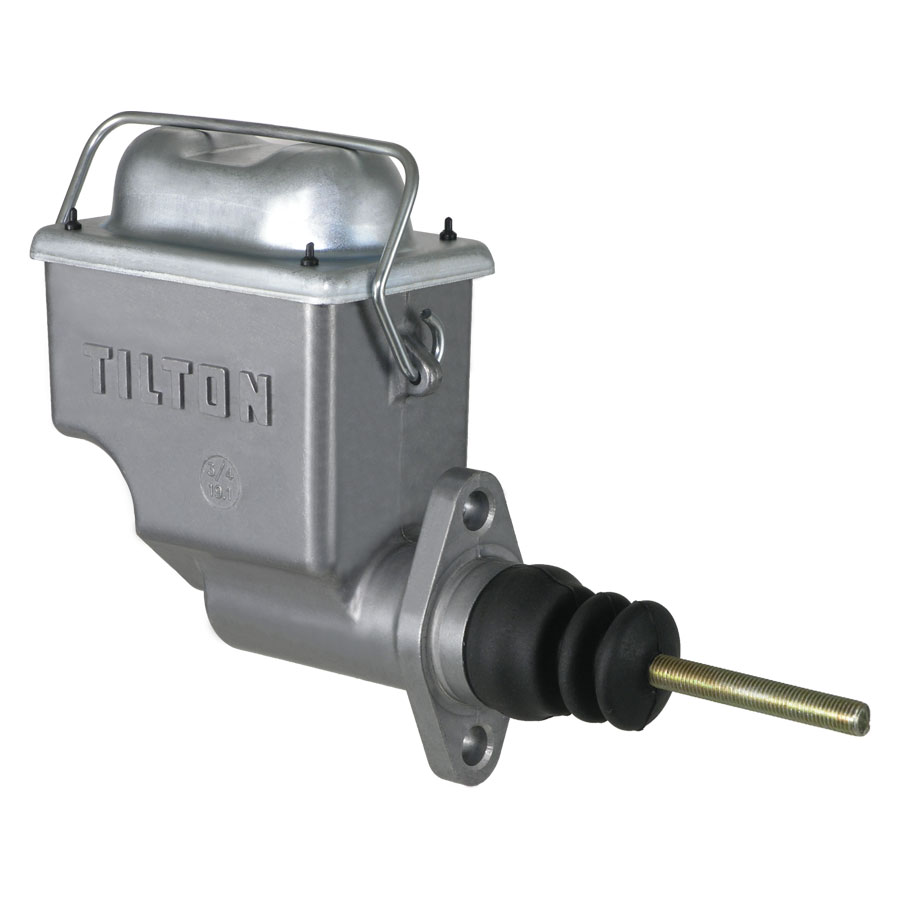

Tilton Engineering 73-750 Master Cylinder 3/4 Inch Bore Integral Reservoir

The Tilton Engineering 73-750 is a 3/4 inch (0.750 inch) bore master cylinder from the 73-Series line, designed for racing applications that require large brake fluid capacity in a leak-proof integral reservoir. This master cylinder features a unique sealed design that allows it to be temporarily inverted without loss of fluid, making it ideal for various mounting orientations.

Key Features:

• 3/4 inch (19.05mm) bore diameter with 1.1 inch stroke for optimal fluid displacement
• Integral 10 oz. reservoir with internal baffle to keep port covered when fluid runs low
• High-pressure die-cast aluminum construction with machined-look finish
• Reliable seal and piston design for consistent performance
• Engineered bellows creates a tight seal and keeps contaminants away from brake fluid
• Bellows expands to fully fill reservoir and enables full fluid volume utilization
• Easy-removal lid with high-tensile spring steel bail wire for consistent clamp force
• 1/8 inch NPT outlet port, shrouded underneath reservoir to minimize fitting damage
• Fluid chamber completely sealed from outside environment while still allowing fluid level changes
• 2-1/4 inch flange mount configuration

The 73-Series master cylinders are an affordable solution for budget racers who need reliable braking performance. Not designed for use with ABS systems. Weight: 1.40 lbs.
