Moroso 63810 Misc Accessories

Aluminum Alternator Mounting Bracket

ALTERNATOR MOUNTING KITS
GM DELCOTRON/CHEVY V8

• 90 V6-V8
• This bracket kit is designed to mount any GM Delcotron alternator to Small Block and 90 V6 Chevy with a short water pump (right side mount)
• Although designed primarily for Circle Track, this kit can be used in many other applications where a compact, rugged alternator mount is needed
• Use with Moroso Alternator Pulley No. 64800,Water Pump Pulley No. 64900, and Crankshaft Pulley No. 64910
• Early model heads need to be drilled and tapped

ALTERNATOR MOUNT KITS

• Billet Aluminum
• These bracket kits are designed to mount mini ND-style and 93mm alternators to either side of the motor, while clearing the electric water pump
• Works with most old and new style drive mandrel kits
• Includes all spacers and hardware

ALTERNATOR MOUNT & DRIVE KITS
Moroso has engineered Alternator Mount Kits and Alternator Drive Kits for popular engines using an electric water pump or electric water pump drive kit. The Drive Kits work with or without crank triggers or engine plates.

• Alternator Mount Kits include all hardware needed to mount old-style Delco alternators to the drivers side of the engine
• Alternator Drive Kits are crankshaft-mounted and designed with spacers that can be replaced with pulleys to drive other accessories such as external oil pumps and vacuum pumps

SMALL BLOCK CHRYSLER

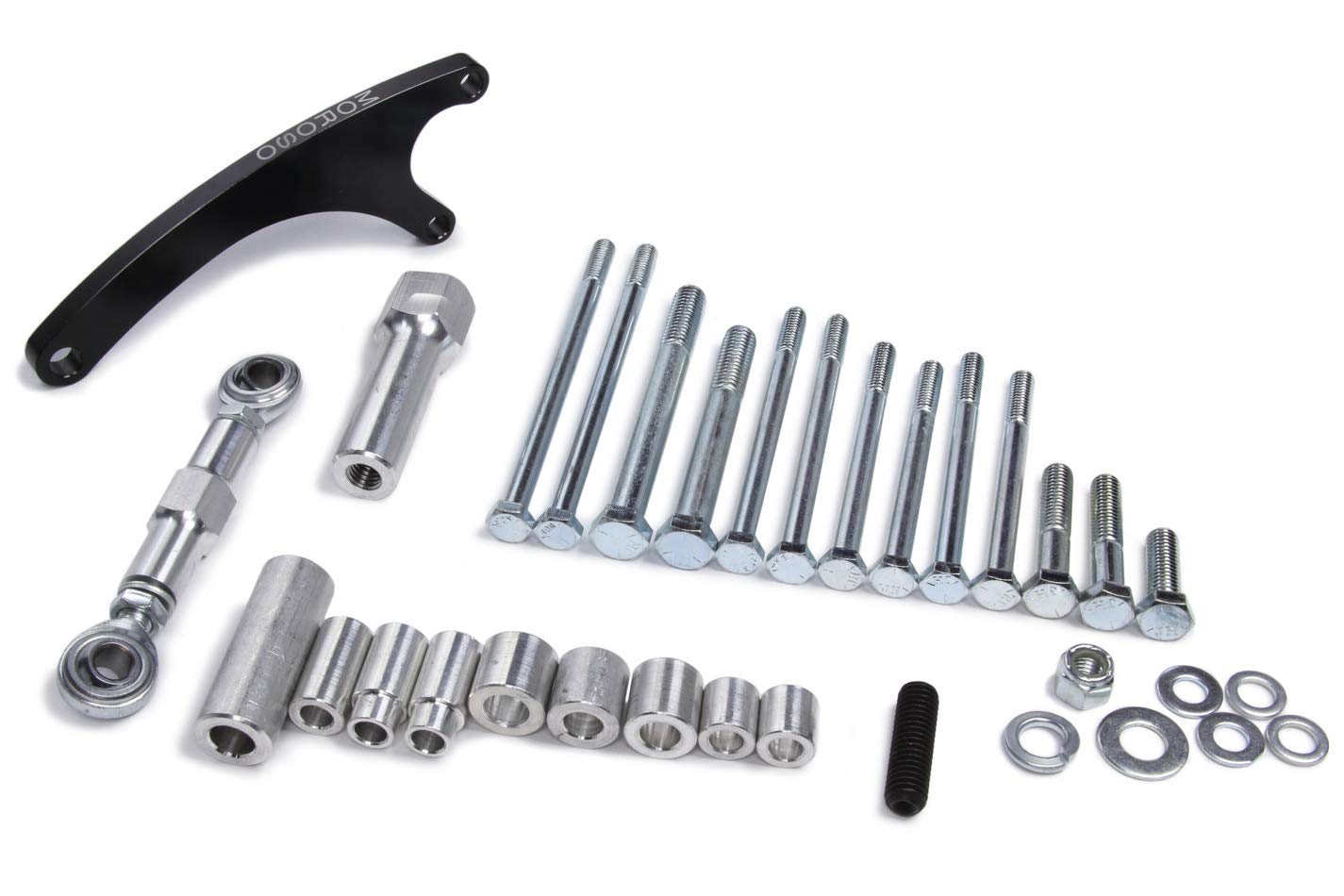

• This kit enables the racer/enthusiast to mount either a 93mm or 115mm Nipondenso alternator to a Chrysler A series engine, (318, 340 & 360) in as many as fourteen different configurations
• Fits with stock mechanical water pumps and Moroso electric water pumps
• Mounts alternator to either side of engine
• Enables the use of lighter weight alternators
• Adjustable turnbuckle makes for easy and accurate belt tension adjustments
• Kit Includes all mounting hardware

BIG BLOCK CHRYSLER

• This kit enables the racer/enthusiast to mount either a 93mm or 115mm ND-style alternator to Chrysler B-RB engines (383, 426, 440) in as many as eight different configurations
• Fits with stock mechanical water pumps and Moroso electric water pump No. 63575
• Mounts alternator to either side of engine
• Enables the use of lighter weight alternators
• Adjustable turnbuckle makes for easy and accurate belt tension adjustments
• Kit Includes all mounting hardware

SMALL BLOCK FORD

• Will mount standard Ford or ND-style alternator on either side of engine
• Fits with mechanical water pumps and electric water pumps from all major manufacturers with V-belt or serpentine pulley systems
• Provides an alternative to running the stock serpentine belt set up
• Kit Includes all mounting hardware

POWER STEERING PUMP MOUNTING BRACKET KITS
SMALL BLOCK CHEVY

• Early Model GM Pump
• This kit mounts an early-style GM Power Steering Pump (with integral reservoir removed) or a Lee, Profile or Cavalier racing power steering pump to the drivers side head of a Small Block Chevy
• Manufactured from 3/8 6061-T6 aluminum, anodized
• Can be shimmed to align any pulley combination
• Comes complete with all necessary fasteners.

SMALL BLOCK CHEVY

• Late Model GM Pump With 18 or 23 Cylinder Head
• This kit mounts a late-model, small-style GM power steering pump (with remote reservoir) or Sweet-type pumps to the drivers side cylinder head of a Small Block Chevy. Use with Moroso Pump Pulley No. 64860
• Manufactured from 3/8 6061-T6 aluminum, anodized
• Comes complete with all necessary spacers and hardware
